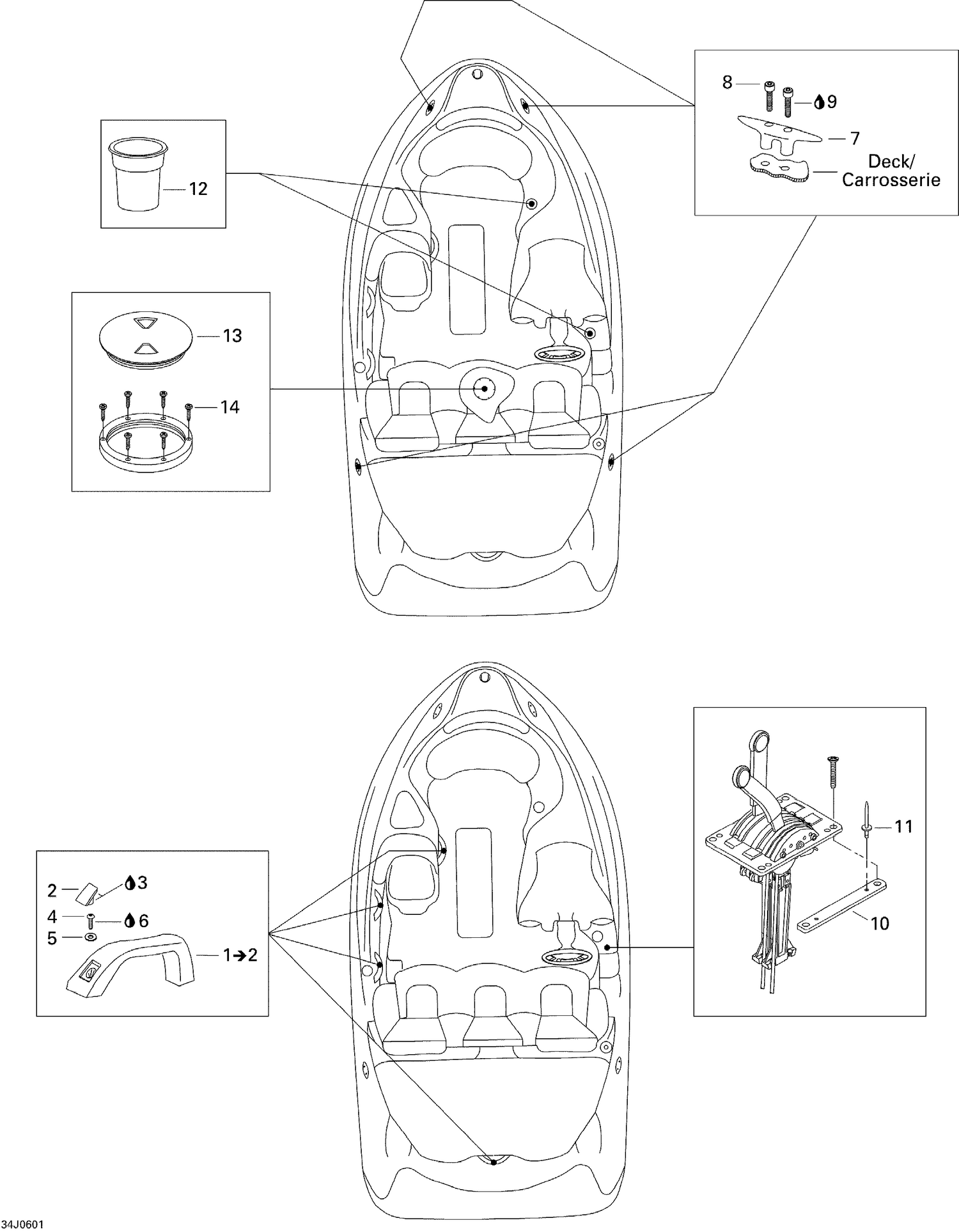

| Ref | Part Number | Description |
|---|
| 2 |
204070056 |
Snap Cap |
| 4 |
205462560 |
SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 5 |
234061600 |
Stainless Flat Washer M6 |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
204070100 |
CLEAT - Call your local BRP dealership |
| 8 |
204100144 |
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership |
| 9 |
293800060 |
Loctite 243, 10 ml |
| 10 |
293450061 |
SHIFTER INSERT - Call your local BRP dealership |
| 11 |
293150013 |
Pop Rivet 3/16" |
| 12 |
291000619 |
CUP HOLDER - Call your local BRP dealership |
| 13 |
Not |
Available As Spare Part - Deck Plate 8" |
