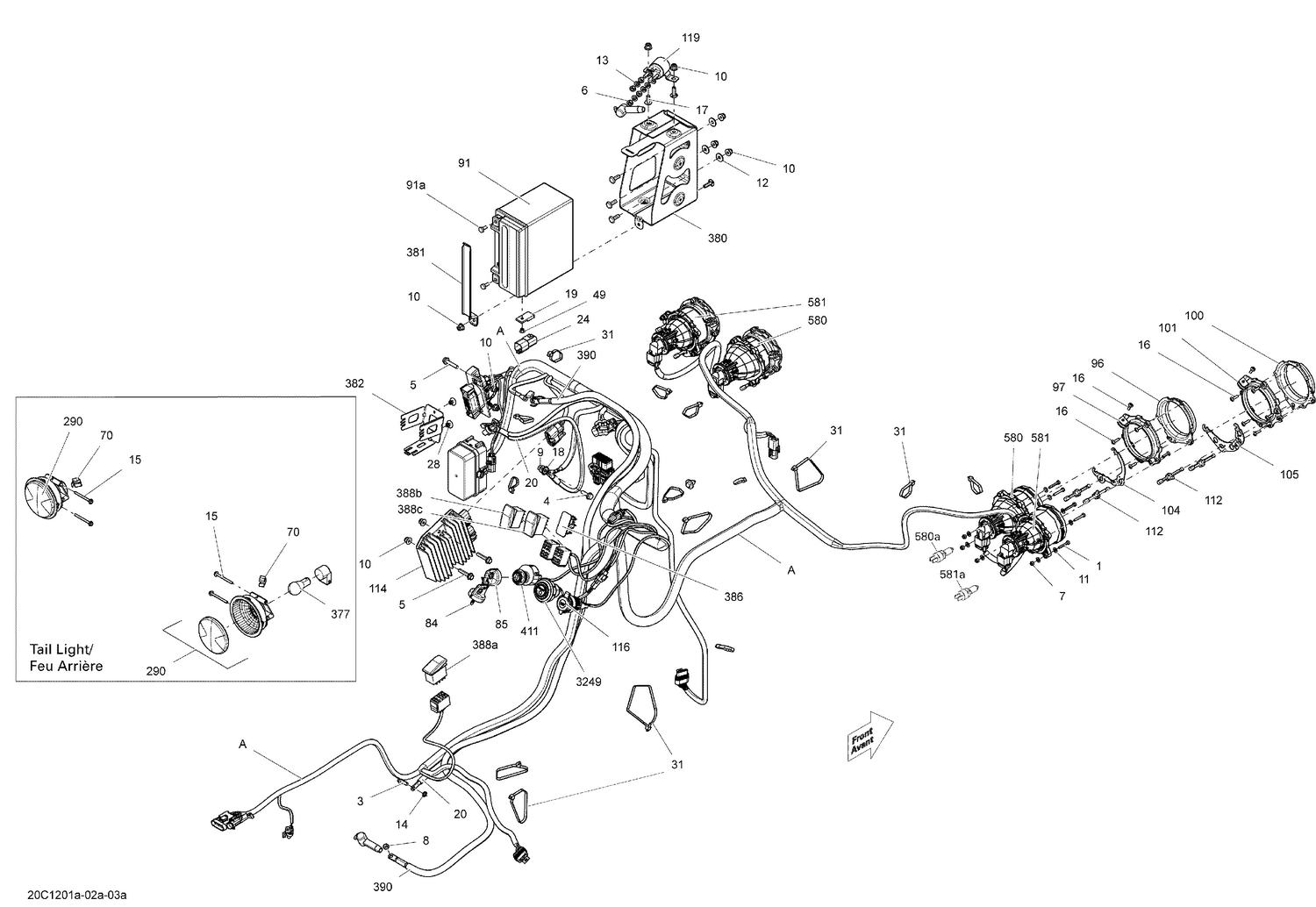

10- Electrical System
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207142544 | Hex. Screw M4 X 25 |
| 3 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 |
| 5 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 6 | 232061600 | Hex. Nut M6 |
| 7 | 232541414 | Elastic Stop Nut M4 |
| 8 | 232561414 | Elastic Stop Nut M6 |
| 9 | 233061414 | Hex. Flange Nut M6 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 234051410 | Flat Washer M5 |
| 12 | 234062410 | Flat Washer 6 mm |
| 13 | 234161601 | Lock Washer Helical M6 |
| 14 | 234461608 | External Serrated Lock Washer 6 mm |
| 15 | 241154540 | Hex. Screw K50 X 45 |
| 16 | 250000723 | Phillips Screw K40 X 16 This part replaces 250000084. |
| 17 | 250000223 | Torx Screw M6 X 16 |
| 18 | 250200041 | Lock Washer Serrated M6 |
| 19 | 270000141 | Clip |
| 20 | 710002147 | GROUND CABLE - Call your local BRP dealership |
| 24 | 278002704 | Diagnostic Connector This part replaces 278002148. |
| 28 | 293150103 | Pop Rivet 3/16" |
| 31 | 293750001 | Tie Wrap 94 mm |
| 31 | 293750008 | Tie Wrap 368 mm |
| 31 | 293750009 | Tie-Rap 173 mm |
| 31 | 414115200 | Tie-Rap 180 mm |
| 49 | 390402400 | Pop Rivet 3/16" |
| 70 | 414227300 | Clip |
| 84 | 710002183 | Grey, Electronic Key |
| 85 | 710000817 | Black, Electronic Key |
| 91 | 410301203 | Battery YUASA YTX20L |
| 91a | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 96 | 710001081 | RH Low Front Housing |
| 96 | 710001083 | LH Low Front Housing |
| 97 | 710001082 | RH Low Rear Housing |
| 97 | 710001084 | LH Low Rear Housing |
| 100 | 710001085 | RH High Front Housing |
| 100 | 710001087 | LH High Front Housing |
| 101 | 710001086 | RH High Rear Housing |
| 101 | 710001088 | LH High Rear Housing |
| 104 | 710001037 | LH Low Light Support |
| 104 | 710001094 | RH Low Light Support |
| 105 | 710001036 | LH High Light Support |
| 105 | 710001115 | RH High Light Support |
| 112 | 710001147 | Setting Screw |
| 114 | 710001191 | Voltage Regulator |
| 116 | 710001248 | DC Outlet |
| 119 | 710007777 | Starter Relay This part replaces 710001364. |
| 290 | 710001645 | Tail Light Ass'y |
| 377 | 520000758 | Bulb |
| 380 | 710003129 | Battery Support This part replaces 710001911. |
| 381 | 710001916 | Battery Holder |
| 382 | 710003335 | Fuse Holder This part replaces 710001918. |
| 386 | 710007173 | Plug Carling This part replaces 710001999. |
| 388a | 710002053 | Switch, Over ride |
| 388b | 710001737 | Interrupteur 4X4 |
| 388c | 710002199 | PPS Sport Switch |
| 390 | 710004383 | Positive Cable This part replaces 710002146. |
| 411 | 710008400 | Ignition Switch This part replaces 710002327. |
| 580 | 710002524 | Low Beam Ass'y |
| 580a | 415129249 | Halogen Bulb |
| 581 | 710002525 | High Beam Ass'y |
| 581a | 415129249 | Halogen Bulb |
| 3249 | 710002594 | Engine Start Button |
