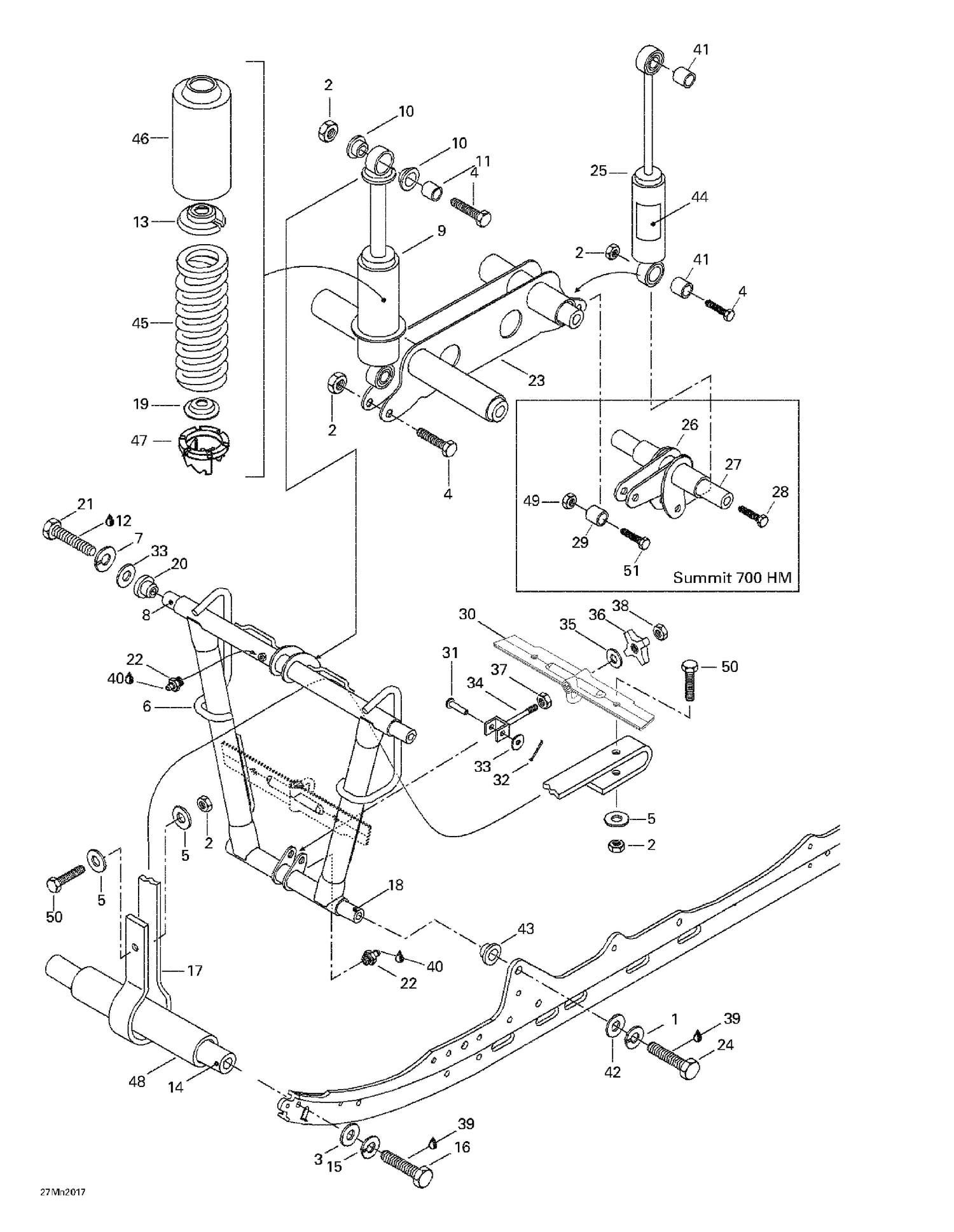

08- Front Arm, Rear Suspension
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 234120602 | Lock Washer 12 mm |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 |
| 3 | 234081410 | Flat Washer 8 mm |
| 4 | 207084044 | Hex. Screw M8 X 40 |
| 5 | 224081301 | Flat Washer |
| 6 | 503189484 | Front Arm |
| 7 | 234101601 | Helicoidal Lock Washer M10 |
| 8 | 503190387 | SHAFT - Call your local BRP dealership This part replaces 503188938. |
| 10 | 503189364 | Bushing |
| 11 | 503189363 | Bushing |
| 12 | 293800060 | Loctite 243, 10 ml |
| 13 | 706200881 | Spring Stopper This part replaces 503140600. |
| 14 | 503151600 | Axle |
| 15 | 234181401 | Lock Washer 8 mm |
| 16 | 207183044 | Hex. Screw M8 X 30 |
| 17 | 503189450 | Stopper strap |
| 18 | 503189313 | SHAFT - Call your local BRP dealership |
| 19 | 503165100 | GUIDE_SPRING - Call your local BRP dealership |
| 20 | 503189324 | Bushing |
| 21 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 22 | 408200700 | Grease Fitting |
| 24 | 207026044 | HEX. SCREW M12 X 60 - Call your local BRP dealership |
| 25 | 503189182 | Rear Shock |
| 30 | 503188400 | Belt Bracket |
| 31 | 415016200 | Clevis Pin |
| 32 | 371801000 | COTTER PIN - Call your local BRP dealership |
| 33 | 234001410 | Flat Washer 10 mm |
| 34 | 503169300 | Stopper |
| 35 | 224002251 | FLAT WASHER - Call your local BRP dealership |
| 36 | 572034000 | ADJUSTER KNOB - Call your local BRP dealership |
| 37 | 232006414 | Hex. Nut M10 X 1.5 |
| 38 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 39 | 293800005 | Loctite 271, 10 ml |
| 40 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 41 | 414936000 | Bushing |
| 42 | 234021410 | Flat Washer 12 mm |
| 43 | 503189323 | CUSHION - Call your local BRP dealership |
| 44 | 516000182 | HPG Decal (Europe) |
| 45 | 415070100 | SPRING - Call your local BRP dealership |
| 46 | 503193663 | Protector This part replaces 503188930. |
| 47 | 503169000 | Cam |
| 48 | 503189265 | Spacer |
| 50 | 207182544 | Hex. Screw M8 X 25 |
