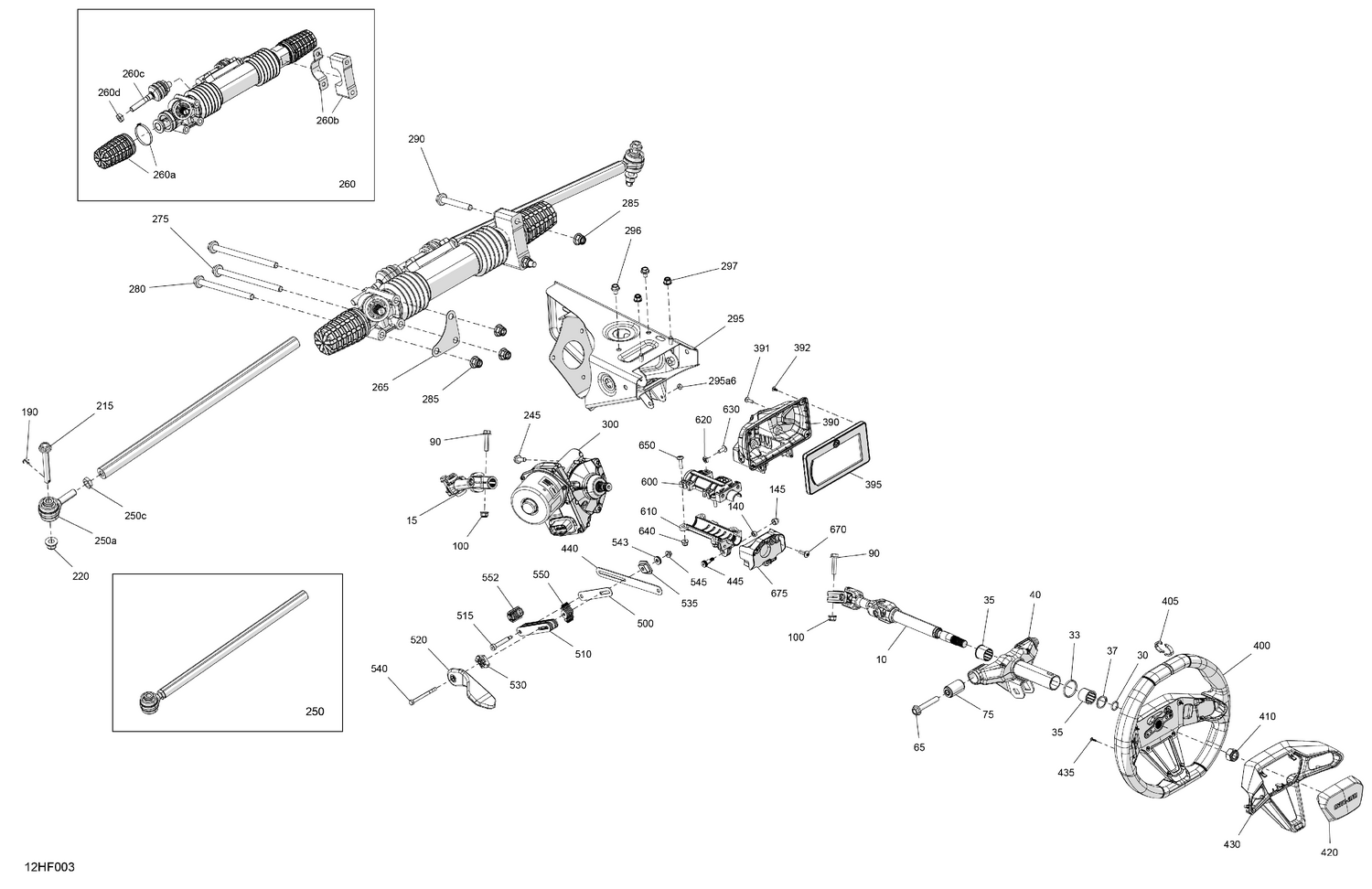

03- Mechanic - Steering
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709403185 | Axle_Steering Up |
| 15 | 709403022 | Lower Steering Axle Ass'y |
| 30 | 293300144 | O-Ring |
| 33 | 709402670 | O-Ring Seal |
| 35 | 709402642 | Steering Bushing |
| 37 | 709402668 | External Retaining Ring |
| 40 | 709402989 | Steering Wheel Support |
| 65 | 207683044 | Hex. Flange Screw M8 X 30 |
| 75 | 706005404 | Suspension Arm Bushing |
| 90 | 250001021 | Hex. Flange Screw M8 X 35 |
| 100 | 233281416 | Hex. Elastic Flange Nut M8 |
| 140 | 250100237 | Hex. Nut M6 X 1.0 Din 980V |
| 145 | 269500806 | Cap |
| 190 | 211400017 | Cotter Pin |
| 215 | 250000864 | Hex Cap Screw M12 X 95 |
| 220 | 233221416 | Elastic Flange Nut M12 |
| 245 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 250a | 709401703 | Ball Joint |
| 250c | 232170411 | Hex. Jam Nut M14 |
| 260a | 703500958 | Kit Rack And Pinion End |
| 260b | 703500959 | Mounting Bracket Kit |
| 260c | 715900488 | Tie Rod end |
| 260d | 715900238 | Steering Rod Nut |
| 265 | 709402975 | Plate |
| 275 | 250000863 | Screw Hex Cap M12 X 190 |
| 280 | 250000875 | Screw Hex Cap M12 X 160 |
| 285 | 250001195 | Elastic Flange Nut M12 |
| 290 | 250000859 | Flange Screw M12 X 85 |
| 295a6 | 232061404 | Hexagonal Nut M6 |
| 296 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 297 | 233281416 | Hex. Elastic Flange Nut M8 |
| 300 | 709403006 | Power Steering Ass'y |
| 390 | 709402651 | Gauge Support |
| 391 | 250000720 | Torx Screw K50 X 16 |
| 392 | 250001034 | Torx-Truss Screw K40 X 10 |
| 395 | 709402688 | Gauge Trim |
| 400 | 709402549 | Steering Wheel |
| 405 | 709402803 | Upper Steering Wheel Trim |
| 410 | 232511414 | Elastic Lock Nut M16 |
| 420 | 709402614 | Central Steering Wheel Trim |
| 430 | 709402711 | Steering Wheel Trim |
| 435 | 250001234 | Screw Plastite Torx K30 X 12 |
| 440 | 709402984 | Lock Plate |
| 445 | 709402676 | Socket Head Shoulder Screw |
| 500 | 709402983 | Lock Plate |
| 510 | 709402983 | Lock Plate |
| 515 | 709403007 | Socket Head Shoulder Screw S.Grip |
| 520 | 709403259 | Latch Lever |
| 530 | 709402639 | Locking Cam |
| 535 | 709402658 | Latch Stopper |
| 540 | 207267044 | Hex. Screw S.Grip M6 X 70 |
| 543 | 709403015 | Thrust Washer |
| 545 | 233061414 | Hex. Flange Nut M6 |
| 550 | 709402660 | Washer |
| 552 | 709402709 | Lower Spacer |
| 600 | 709402643 | Upper Module Housing |
| 610 | 709402644 | Under Module Housing |
| 620 | 232862412 | Square Nut M6 |
| 630 | 250000534 | Tork Screw M6 X 16 |
| 640 | 233261494 | Hex. Flange Elastic Nut M6 |
| 650 | 250000758 | Torx Screw M6 X 25 |
| 670 | 250000984 | Hex. Torx Screw M6 X 20 |
