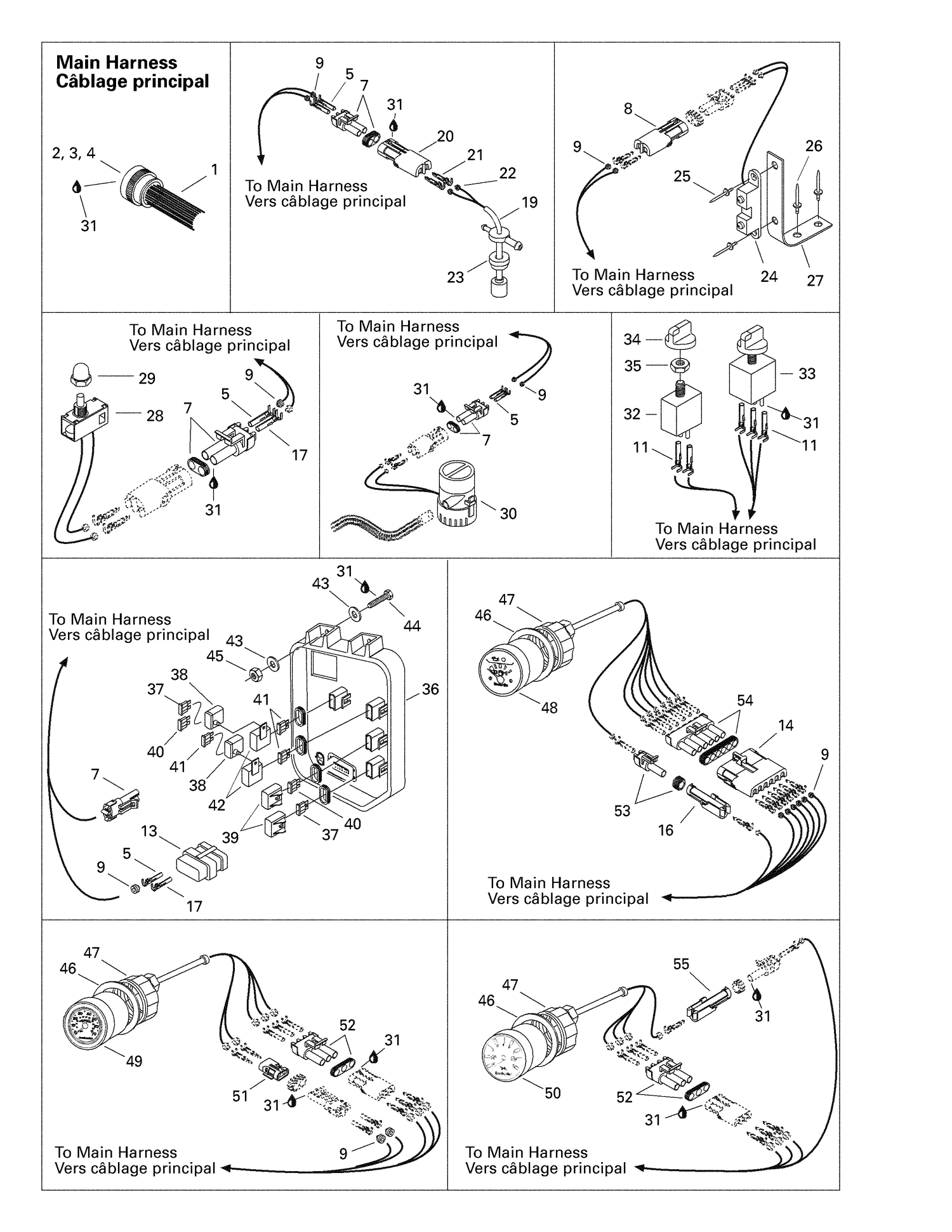

| Ref | Part Number | Description |
|---|
| 2 |
278000870 |
Male Housing(Canon) |
| 3 |
278000871 |
Female Terminal(Canon) |
| 4 |
278000872 |
Female terminal(Canon) |
| 5 |
409007300 |
Female Terminal |
| 6 |
278000632 |
Female Terminal |
| 7 |
278000220 |
Male Connector, 2 Circuits |
| 8 |
278000217 |
Female Housing, 2 Circuits |
| 9 |
278000218 |
Wire Seal |
| 10 |
278000738 |
Male Lock, 4 Circuits |
| 11 |
278000228 |
FEMALE TERMINAL - Call your local BRP dealership |
| 12 |
278000281 |
Female Terminal Housing, 3 Circuits |
| 13 |
278001194 |
Male Housing (24 Ways)(AMP) |
| 14 |
278000156 |
FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership |
| 15 |
278000739 |
Male Connector, 4 Circuits |
| 16 |
278000161 |
Female Housing, 1 Circuit |
| 17 |
278000995 |
FEMALE TERMINAL - Call your local BRP dealership |
| 18 |
278001012 |
Male Housing, 1 Circuit |
| 20 |
278000217 |
Female Housing, 2 Circuits |
| 21 |
278000222 |
Male Terminal |
| 22 |
278000218 |
Wire Seal |
| 23 |
204470104 |
Grommet |
| 24 |
204470038 |
WATER SENSOR - Call your local BRP dealership |
| 25 |
293150050 |
Pop Rivet 5/32 |
| 26 |
293150008 |
Pop Rivet 3/16" |
| 27 |
204470058 |
Sensor Support |
| 28 |
278000622 |
RH IGNITION SWITCH - Call your local BRP dealership |
| 29 |
278000565 |
IGNITION SWITCH CAP, RED - Call your local BRP dealership |
| 30 |
278002020 |
Bilge Pump This part replaces 204470040. |
| 31 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 32 |
278000540 |
Fan Switch |
| 33 |
278000541 |
Light Switch |
| 34 |
278000542 |
SWITCH CAP - Call your local BRP dealership |
| 35 |
278000647 |
Switch Nut |
| 37 |
278001197 |
Fuse, 10 Amperes |
| 38 |
278000379 |
Fuse Holder |
| 39 |
278000378 |
FUSE CAP - Call your local BRP dealership |
| 40 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 41 |
278001196 |
FUSE, 3 AMPERES - Call your local BRP dealership |
| 42 |
278001326 |
Fuse Holder Cap This part replaces 278000345. |
| 43 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 44 |
208662060 |
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership This part replaces 215862068. |
| 45 |
232561600 |
Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 46 |
293250040 |
Gasket |
| 47 |
278000743 |
Gauge Nut |
| 48 |
204470061 |
Fuel / Oil Gauge |
| 49 |
204470121 |
Speedo Gauge |
| 50 |
204470079 |
Tachometer Gauge |
| 51 |
278000217 |
Female Housing, 2 Circuits |
| 52 |
278000273 |
Male Housing, 3 Circuits |
| 53 |
278000219 |
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership |
| 54 |
278000221 |
MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership |
| 278000621 |
IGNITION |
SWITCH - Call your local BRP dealership 278000621 |
