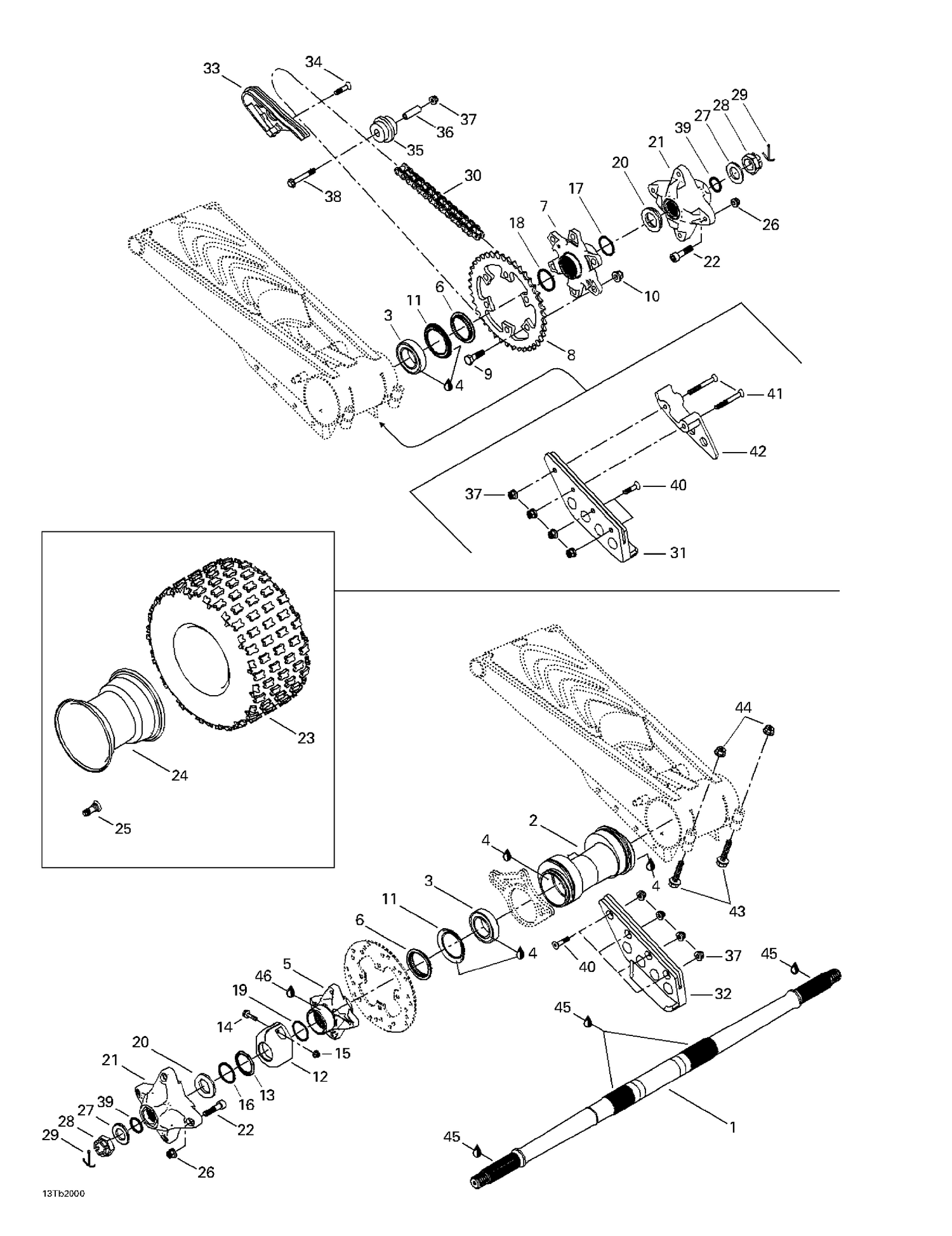

| Ref | Part Number | Description |
|---|
| 1 |
705500051 |
Drive Axle |
| 2 |
705500056 |
CHAIN TIGHTENER - Call your local BRP dealership |
| 3 |
293350043 |
Cone Bearing This part replaces 293350025. |
| 4 |
293550010 |
Synthetic Grease, 400 G |
| 5 |
705500190 |
Disc Brake Hub Ass'y |
| 6 |
705500191 |
WEAR RING - Call your local BRP dealership |
| 7 |
705500192 |
Sprocket Hub |
| 8 |
705500054 |
Sprocket, 40 Teeth |
| 9 |
250000034 |
Screw, Modified |
| 10 |
232521416 |
Elastic Stop Nut M12 |
| 11 |
293250222 |
Joint Etanche *Oil Seal This part replaces 293250115. |
| 12 |
705500204 |
Adjusting Nut |
| 13 |
705500206 |
THRUST WASHER - Call your local BRP dealership |
| 14 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 16 |
705500065 |
RING RETAINER - Call your local BRP dealership |
| 17 |
705500108 |
RING RETAINER - Call your local BRP dealership |
| 18 |
293300059 |
O-Ring |
| 19 |
293300060 |
O-RING - Call your local BRP dealership |
| 20 |
705500067 |
RING SUPPORT - Call your local BRP dealership |
| 21 |
705500069 |
Wheel Hub |
| 22 |
205504044 |
SCREW-SOCKET DIN.912 S.GRIP - Call your local BRP dealership |
| 23 |
705500063 |
Rear Tire |
| 24 |
705500064 |
Rear Rim |
| 25 |
705400193 |
Rim Valve With Cap This part replaces 705400067. |
| 26 |
250100105 |
Flange Nut M10 This part replaces 732610084. |
| 27 |
250200004 |
HARDENED WASHER - Call your local BRP dealership |
| 28 |
250100006 |
HEX. CASTELLATED NUT M24 - Call your local BRP dealership |
| 29 |
371003400 |
Cotter Pin This part replaces 211400011. |
| 30 |
705500052 |
Chain |
| 31 |
705500053 |
RH Protector |
| 32 |
705500114 |
LH Protector |
| 33 |
705500071 |
Slider-Shoe |
| 34 |
205882044 |
SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership |
| 35 |
705500070 |
Chain Roller |
| 36 |
705500115 |
Bushing |
| 37 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 38 |
207686044 |
Hex. Flange Screw M8 x 60 |
| 39 |
293300064 |
O-Ring |
| 40 |
205383544 |
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership |
| 41 |
205387044 |
SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership |
| 42 |
705500116 |
PROTECTOR - Call your local BRP dealership |
| 43 |
207606044 |
Hex. Flange Screw M10 X 60 |
| 44 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 45 |
293550062 |
Graisse *Grease This part replaces 293550019. |
