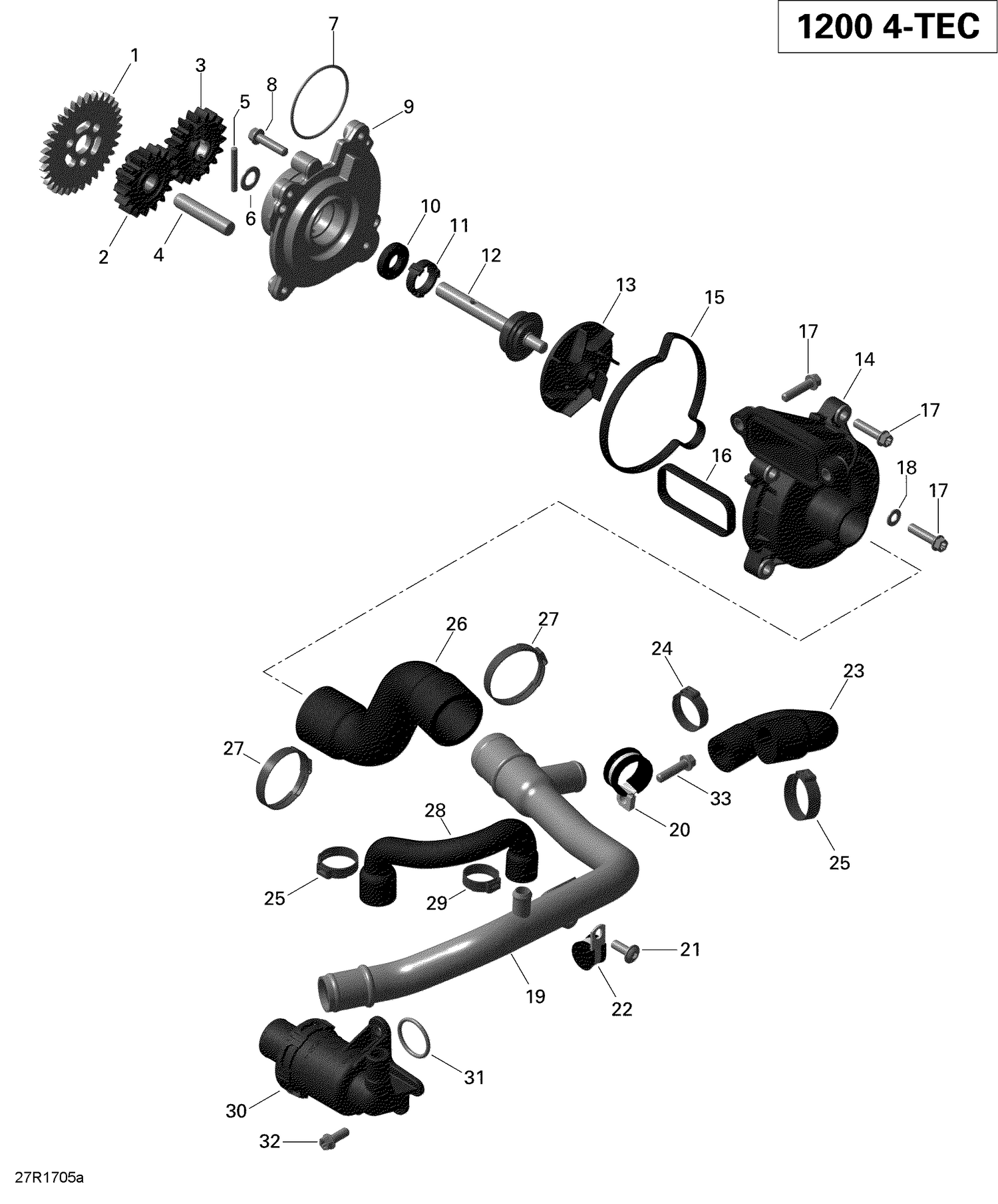

01- Engine Cooling - 1200iTC 4-TEC (Except GT LE - Renegade Enduro)
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420835065 | Idle Gear, 34 Teeth |
| 2 | 420835062 | Idle Gear, 17 Teeth |
| 3 | 420835070 | Water Pump Gear, 18 Teeth |
| 4 | 420229302 | Location Pin 10 M6x50 |
| 5 | 420832660 | Needle Pin |
| 6 | 420827590 | Thrust Washer |
| 7 | 293300117 | O-Ring |
| 8 | 420440234 | Torx Flange Screw M6 X 25 |
| 9 | 420910230 | Step Collar |
| 10 | 420650315 | Oil Seal |
| 11 | 420947430 | Spacer Ring |
| 12 | 420837921 | Water Pump Shaft |
| 13 | 420922805 | Water Impeller |
| 15 | 420430780 | Gasket |
| 16 | 420431290 | Gasket |
| 17 | 420440234 | Torx Flange Screw M6 X 25 |
| 18 | 420230415 | Seal Washer |
| 19 | 420922081 | TUBE - Call your local BRP dealership |
| 20 | 420651590 | TUBE CLAMP - Call your local BRP dealership |
| 21 | 420440147 | Hex. Flange Screw M6 X 12 |
| 22 | 420851492 | Cable Clamp |
| 23 | 420922091 | MOLDED HOSE - Call your local BRP dealership |
| 24 | 420851673 | Gear Clamp |
| 25 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 26 | 420460461 | Molded Hose |
| 27 | 420951293 | Gear Clamp |
| 28 | 420460472 | HOSE - Call your local BRP dealership |
| 29 | 420951063 | Gear Clamp |
| 31 | 420631876 | O-Ring |
| 32 | 420440162 | Torx Flange Screw M6 X 16 |
