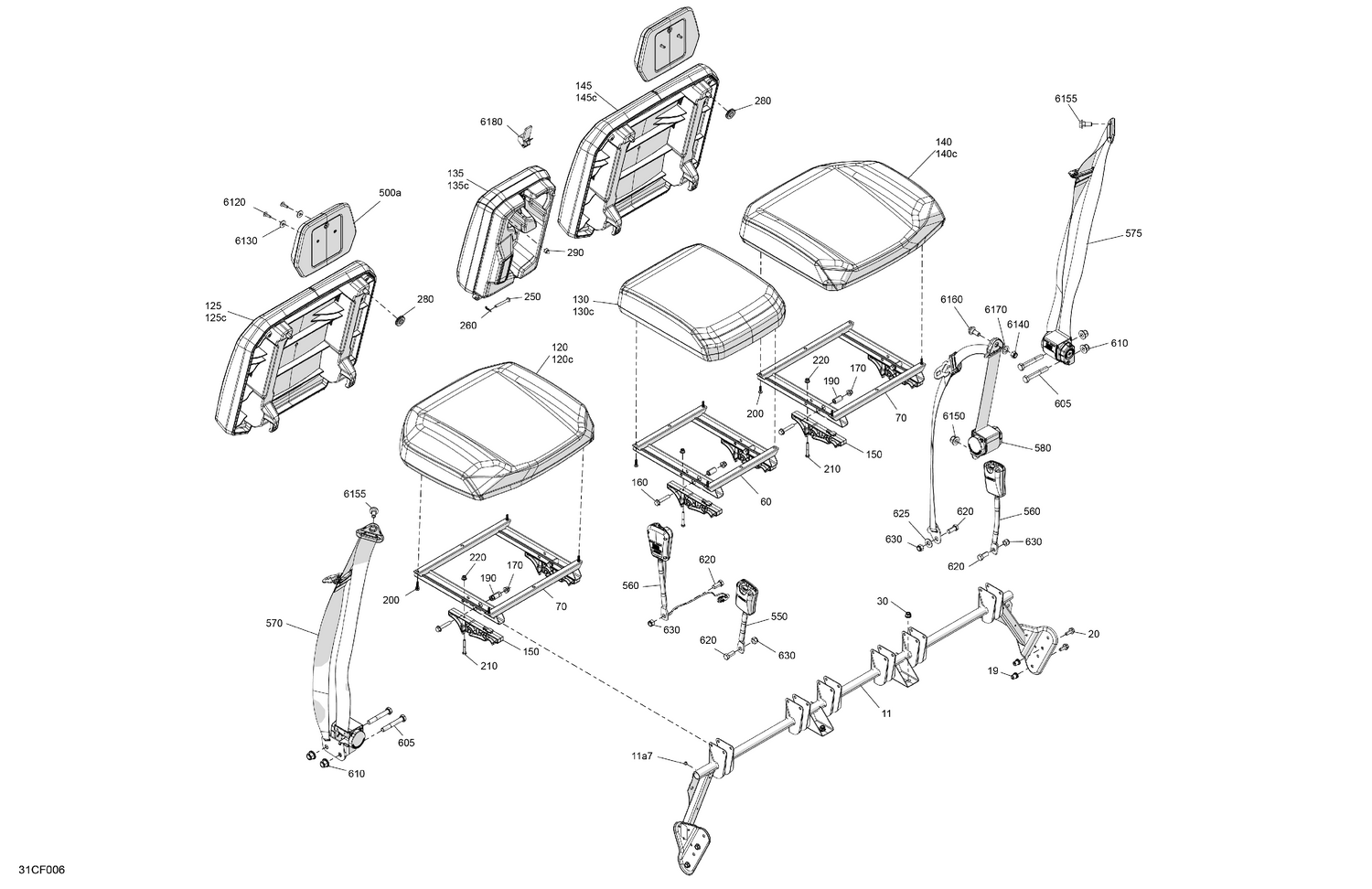

07- Body - Seat - Rear Section
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 11a7 | 293150293 | Pop Rivet 3/16 X ,425 |
| 19 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 20 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 30 | 233281414 | Hex. Flange Elastic Nut M8 |
| 60 | 708002815 | Mid Seat Member |
| 70 | 708002821 | Passenger Seat Member |
| 120c | 708001698 | Cover |
| 125c | 708001706 | Cover |
| 130c | 708001713 | Cover |
| 135c | 708001719 | Cover |
| 140c | 708001710 | Cover |
| 145c | 708001706 | Cover |
| 150 | 708002581 | Seat Base Pivot |
| 160 | 207684544 | Hex. Flange Screw M8 X 45 |
| 170 | 233281416 | Hex. Elastic Flange Nut M8 |
| 190 | 708003749 | Bushing |
| 200 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 210 | 207064544 | Hex. Screw M6 X 45 |
| 220 | 233261494 | Hex. Flange Elastic Nut M6 |
| 250 | 250400069 | Pin |
| 260 | 269800431 | Hairpin Cotter |
| 280 | 517303756 | Grommet |
| 290 | 293830005 | Rubber Bumper |
| 500a | 708002853 | Headrest |
| 550 | 708003163 | Middle Buckle |
| 560 | 708002329 | Passenger Buckle |
| 570 | 708003082 | LH Safety Belt |
| 575 | 708003200 | RH Safety Belt |
| 580 | 708003688 | Central Safety Belt |
| 605 | 207028046 | Hex. Screw M12 X 80 |
| 610 | 233221416 | Elastic Flange Nut M12 |
| 620 | 250001316 | Hex. Cap Screw 7/16'' X 1'' |
| 625 | 250200102 | Flat Washer M12 |
| 630 | 250100183 | Lock Nut Nylon 7/16 |
| 6120 | 250000722 | Torx Screw M6 X 20 |
| 6130 | 250200162 | Flat Washer M6.6 X 22 |
| 6140 | 233221416 | Elastic Flange Nut M12 |
| 6150 | 250100183 | Lock Nut Nylon 7/16 |
| 6155 | 708002504 | Safety Belt screw |
| 6160 | 708000890 | Safety Belt Screw |
| 6170 | 708000891 | Position Washer |
