Parts Catalog

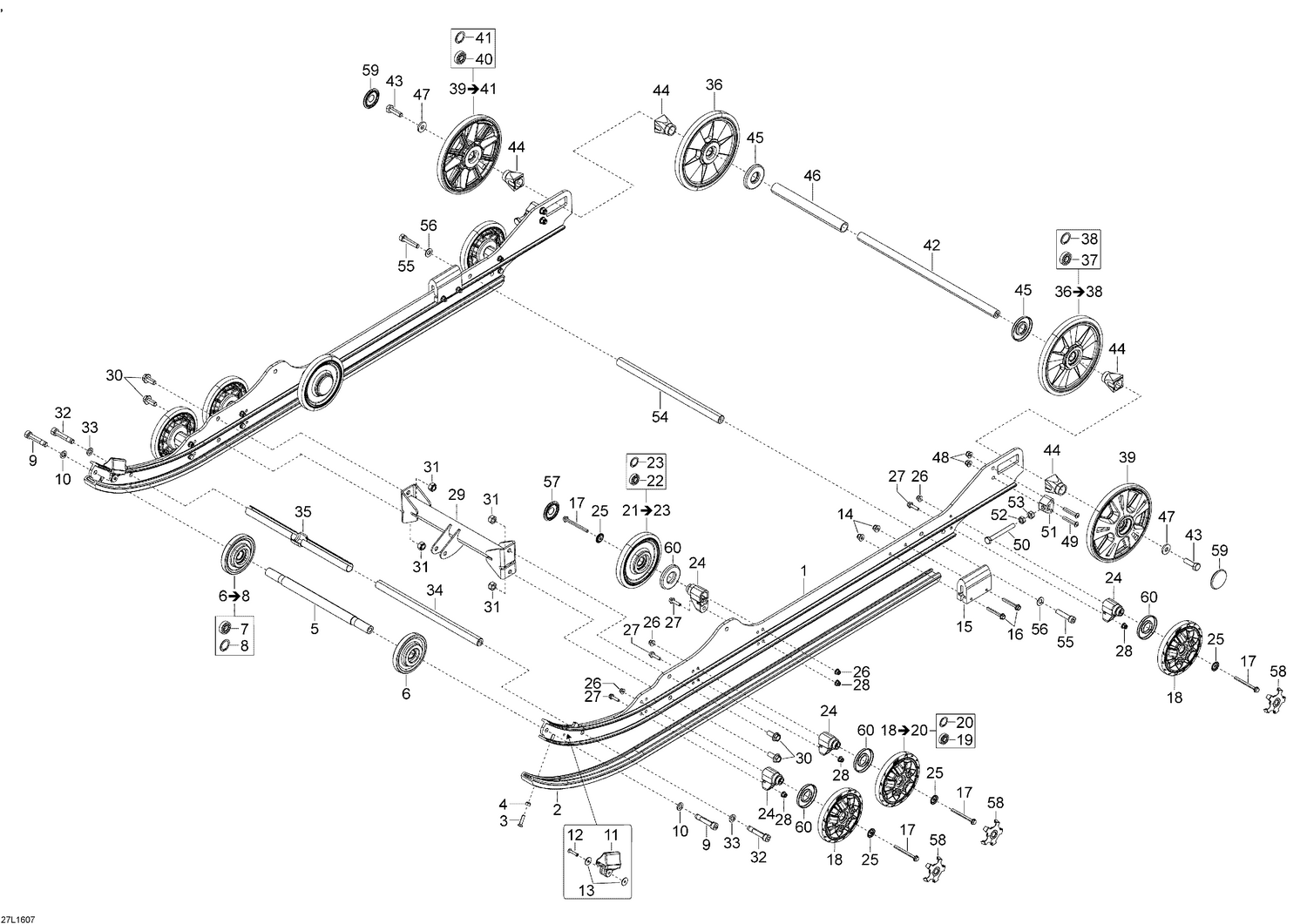

08- Rear Suspension A

Parts (54)

Ref	Part Number	Description
1	503194257	Black Runner
2	503194307	Slider Shoe
3	208562531	Phillips Screw M6 X 25
4	232561434	Elastic Stop Nut M6
5	503192889	Front Wheel Shaft
7	503190396	Ball Bearing
8	Not	Available As Spare Part - Circlip
9	205504544	Socket Screw
10	234001410	Flat Washer 10 mm
11	503192106	Rubber Stopper
12	293150142	Rivet
13	503191273	Washer
14	233261466	Hex. Flanged Elastic Nut M6
15	570023100	Rubber Stopper
16	207664554	Hex, Flange Screw
17	207667056	Hex. Flange Screw M6 x 70
19	503190396	Ball Bearing
20	Not	Available As Spare Part - Circlip
22	503190396	Ball Bearing
23	415129371	Retaining Ring
24	503193894	Casted Support
25	503191820	Wheel Cup M6
26	233261466	Hex. Flanged Elastic Nut M6
27	207662556	Hex. Flange Screw M6 X 25
28	233261466	Hex. Flanged Elastic Nut M6
29	503193182	Center Shock Lower Support
30	207602587	Hex. Flange Screw M10 x 25
31	232500416	Elastic Stop Nut M10
32	205504544	Socket Screw
33	234001410	Flat Washer 10 mm
34	503192927	Shaft
35	605355263	Limiter Strap Retainer
37	503190396	Ball Bearing
38	415129371	Retaining Ring
40	503190396	Ball Bearing
41	415129371	Retaining Ring
42	503193352	Rear Shaft
43	250000817	Hex Screw With Nilon Patch, M10 X 35
44	503190428	Rear Wheel Spacer
45	503190682	Labyrinth Seal
46	503193631	Spacer
47	503190439	Washer
48	233281414	Hex. Flange Elastic Nut M8
49	205484546	Socket HD Screw M8 x 45
50	230100044	HEX. SCREW M10 X 100 - Call your local BRP dealership
51	5341633	Lug
52	232006414	Hex. Nut M10
53	232500416	Elastic Stop Nut M10
54	5347717	Shaft
55	205504544	Socket Screw
56	234001410	Flat Washer 10 mm
57	503192771	Black, Wheel Cap
58	503193735	Black Cap
59	503192771	Black, Wheel Cap
