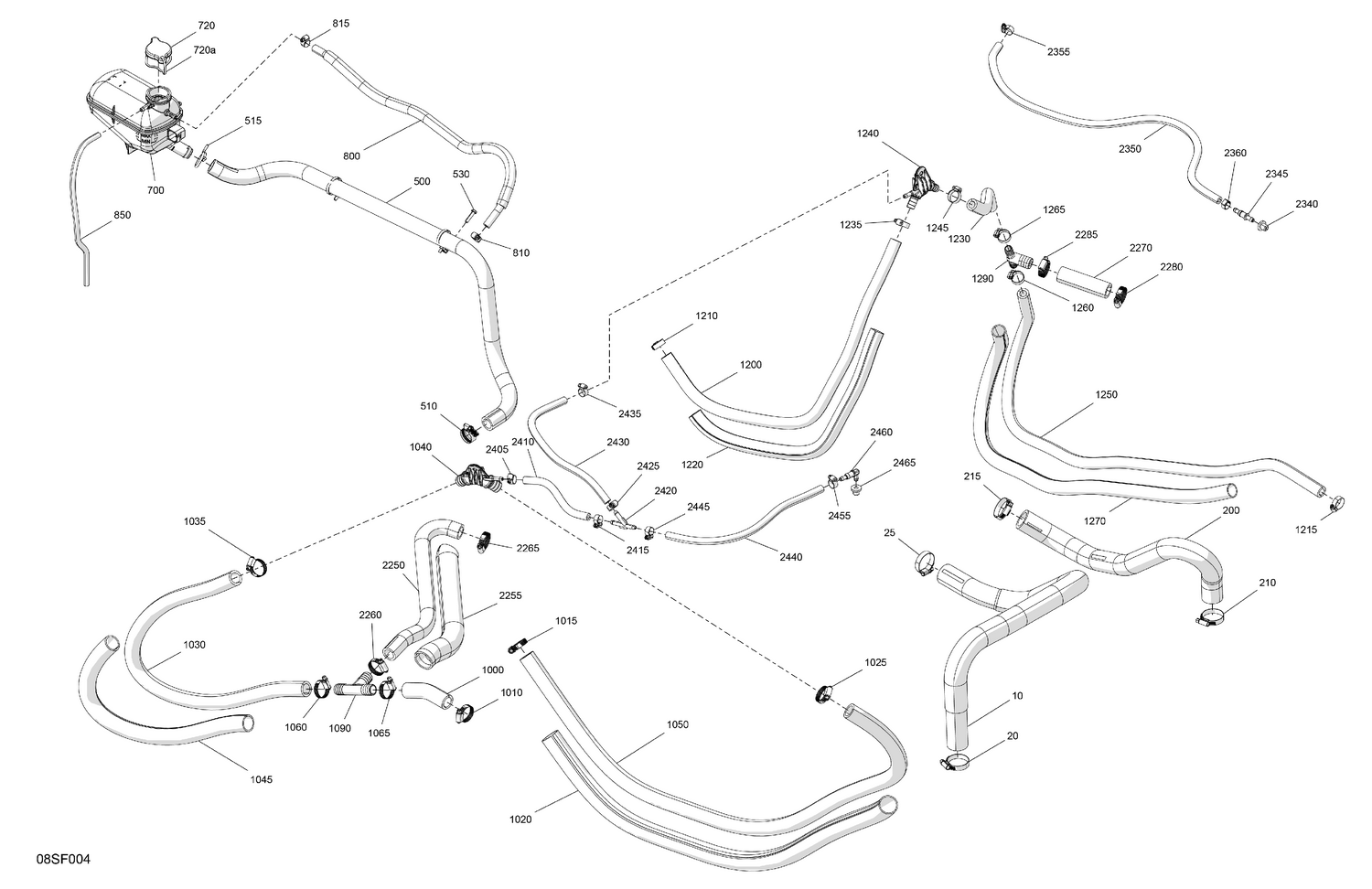

02- Engine - Cooling
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 276000516 | Hose |
| 20 | 293650245 | Norma Clamp |
| 25 | 293650245 | Norma Clamp |
| 200 | 276000517 | Formed Hose |
| 210 | 293650245 | Norma Clamp |
| 215 | 293650245 | Norma Clamp |
| 500 | 276000537 | Coolant Tank Hose |
| 510 | 293650019 | Tridon Gear Clamp This part replaces 293650290. |
| 515 | 293650115 | Spring Clamp |
| 530 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 700 | 276000419 | Coolant Tank |
| 720a | 276000127 | Latch - Call your local BRP dealership |
| 800 | 276000425 | Hose 6,4 MM ID |
| 810 | 293650287 | Gear Clamp |
| 815 | 293650287 | Gear Clamp |
| 850 | 219704389 | Polyurethane Hose 4000MM Long |
| 1000 | 219704613 | Hose 19Mm X 4000 mm Long |
| 1010 | 293650284 | Gear Clamp |
| 1015 | 293650284 | Gear Clamp |
| 1020 | 219704649 | Corrugated Sheath 25 mm ID 1000mm |
| 1025 | 293650284 | Gear Clamp |
| 1030 | 219704613 | Hose 19Mm X 4000 mm Long |
| 1035 | 293650284 | Gear Clamp |
| 1040 | 276000547 | Fitting |
| 1045 | 219704649 | Corrugated Sheath 25 mm ID 1000mm |
| 1050 | 219704613 | Hose 19Mm X 4000 mm Long |
| 1060 | 293650284 | Gear Clamp |
| 1065 | 293650284 | Gear Clamp |
| 1090 | 293710131 | T-Fitting |
| 1200 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1210 | 293650285 | Clamp Gear |
| 1215 | 293650285 | Clamp Gear |
| 1220 | 219704653 | Corrugated Sheath 22 mm ID 1000mm |
| 1230 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1235 | 293650285 | Clamp Gear |
| 1240 | 276000565 | Fitting |
| 1245 | 293650285 | Clamp Gear |
| 1250 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1260 | 293650285 | Clamp Gear |
| 1265 | 293650285 | Clamp Gear |
| 1270 | 219704653 | Corrugated Sheath 22 mm ID 1000mm |
| 1290 | 293710132 | T-Fitting |
| 2250 | 276000422 | Formed Hose |
| 2255 | 219704649 | Corrugated Sheath 25 mm ID 1000mm |
| 2260 | 293650284 | Gear Clamp |
| 2265 | 293650284 | Gear Clamp |
| 2270 | 219704613 | Hose 19Mm X 4000 mm Long |
| 2280 | 293650284 | Gear Clamp |
| 2285 | 293650284 | Gear Clamp |
| 2340 | 293720029 | Grommet |
| 2345 | 414518500 | Male Connector |
| 2350 | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 2355 | 293650287 | Gear Clamp |
| 2360 | 293650359 | Crimp Clamp |
| 2405 | 293650287 | Gear Clamp |
| 2410 | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 2415 | 293650287 | Gear Clamp |
| 2420 | 293710059 | Y-Fitting |
| 2425 | 293650287 | Gear Clamp |
| 2430 | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 2435 | 293650287 | Gear Clamp |
| 2440 | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 2445 | 293650287 | Gear Clamp |
| 2455 | 293650287 | Gear Clamp |
| 2460 | 414580600 | Elbow Male Connector |
