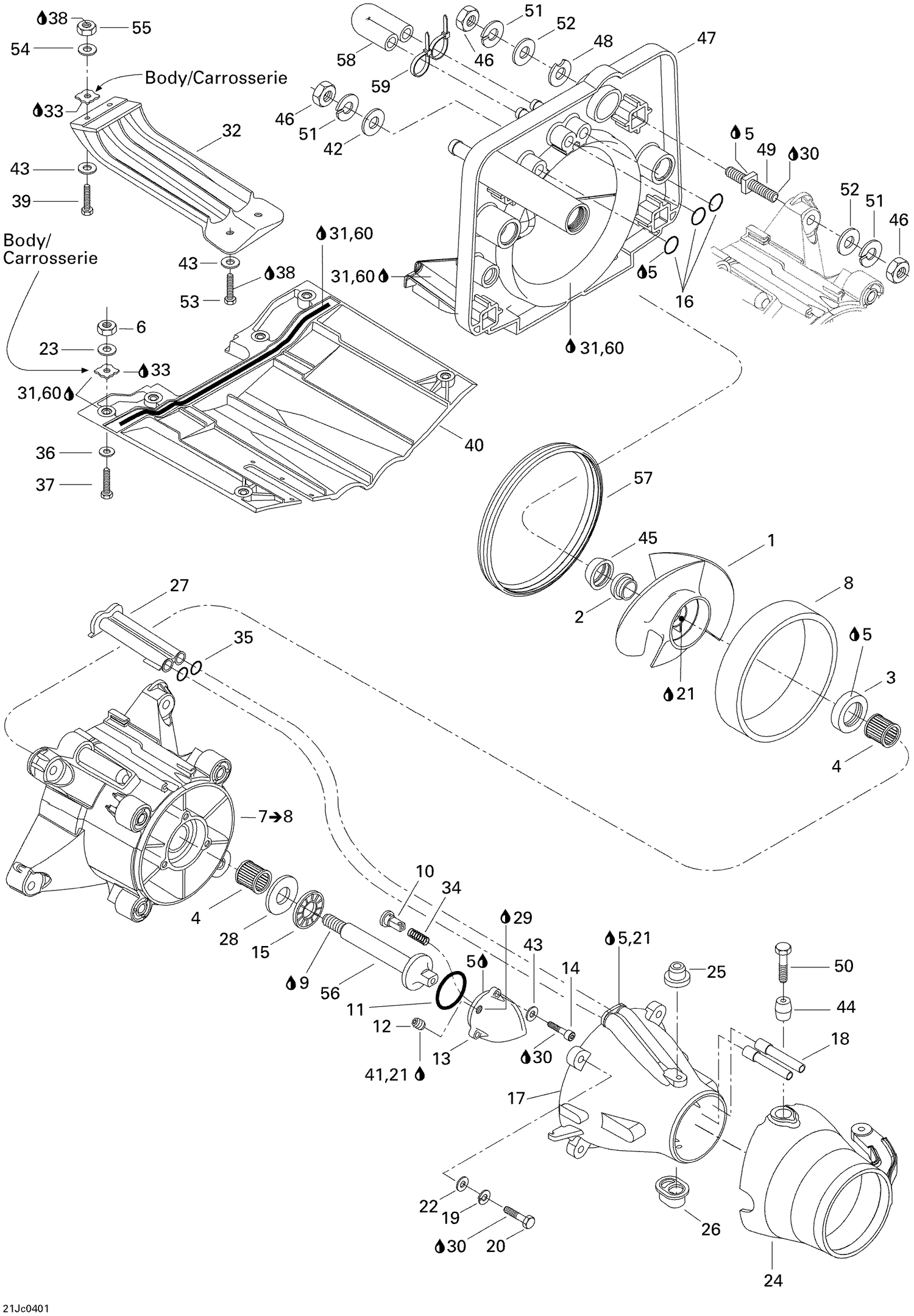

| Ref | Part Number | Description |
|---|
| 1 |
204160136 |
Impeller Assy - Call your local BRP dealership |
| 2 |
271000516 |
Impeller Boot |
| 3 |
267000094 |
Oil Seal This part replaces 293200025. |
| 4 |
293350017 |
Needle Bearing |
| 6 |
232581600 |
Hex. Elastic Nut M8 |
| 8 |
271000653 |
Wear Ring |
| 9 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 10 |
271000978 |
PUSHER - Call your local BRP dealership |
| 11 |
293300011 |
O-Ring |
| 12 |
211500001 |
Pipe Plug Socket Head 1/8-27 Npt |
| 13 |
271001250 |
IMPELLER COVER - Call your local BRP dealership |
| 14 |
205062560 |
Socket Head Screw M6 X 25 |
| 15 |
293350022 |
Thrust-Bearing |
| 16 |
293250084 |
Watertight Seal |
| 17 |
204160191 |
Venturi, Black |
| 18 |
271001133 |
Siphon Tube |
| 19 |
234181601 |
Lock Washer 8 mm, Stainless |
| 20 |
207087060 |
HEX. SCREW M8 X 70 - Call your local BRP dealership |
| 21 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 22 |
293050001 |
Flat Washer M8.5 x 18 |
| 23 |
234082600 |
Flat Washer 8 mm, Stainless |
| 24 |
204160144 |
Steering Nozzle |
| 25 |
293900001 |
Venturi Bushing |
| 26 |
293900010 |
Plastic Bushing |
| 27 |
271000785 |
Water Outlet |
| 28 |
293350020 |
THRUST WASHER - Call your local BRP dealership |
| 29 |
779221 |
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML This part replaces 293600011. |
| 30 |
293800060 |
Loctite 243, 10 ml |
| 31 |
219701421 |
Instant Gasket This part replaces 293800088. |
| 32 |
271000790 |
PUMP GRATE - Call your local BRP dealership |
| 33 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 34 |
271000973 |
SPRING - Call your local BRP dealership |
| 35 |
293300013 |
O-Ring |
| 36 |
234081600 |
Stainless, Flat Washer 8 mm |
| 37 |
207184060 |
Hex. Screw M8 X 40 |
| 38 |
293800005 |
Loctite 271, 10 ml |
| 39 |
207164560 |
Hex. Screw M6 X 45 |
| 40 |
271000955 |
RIDING PLATE, BLACK - Call your local BRP dealership |
| 41 |
219704454 |
Was 293800013 Loctite 56765 |
| 42 |
234001600 |
Flat Washer 10 mm, Stainless |
| 43 |
234061600 |
Stainless Flat Washer M6 |
| 44 |
204160153 |
Venturi Spacer |
| 45 |
271000517 |
Impeller Ring |
| 46 |
232001600 |
HEX. NUT M10 - Call your local BRP dealership |
| 47 |
204120170 |
Pump Support |
| 48 |
0460011 |
NEEDS DESCRIPTION This part replaces 204120067. |
| 49 |
250300022 |
Square Stud This part replaces 250300010. |
| 50 |
211000047 |
SCREW-SPECIAL M8 - Call your local BRP dealership |
| 51 |
234101601 |
Helicoidal Lock Washer M10 |
| 52 |
234002600 |
Flat Washer 10 mm, Stainless |
| 53 |
207161660 |
Hex. Screw M6 X 16 |
| 54 |
234062600 |
Flat Washer M6, Stainless |
| 55 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 56 |
271000965 |
Impeller Shaft |
| 57 |
293200051 |
Neoprene Seal |
| 58 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 59 |
293750001 |
Tie Wrap 94 mm |
