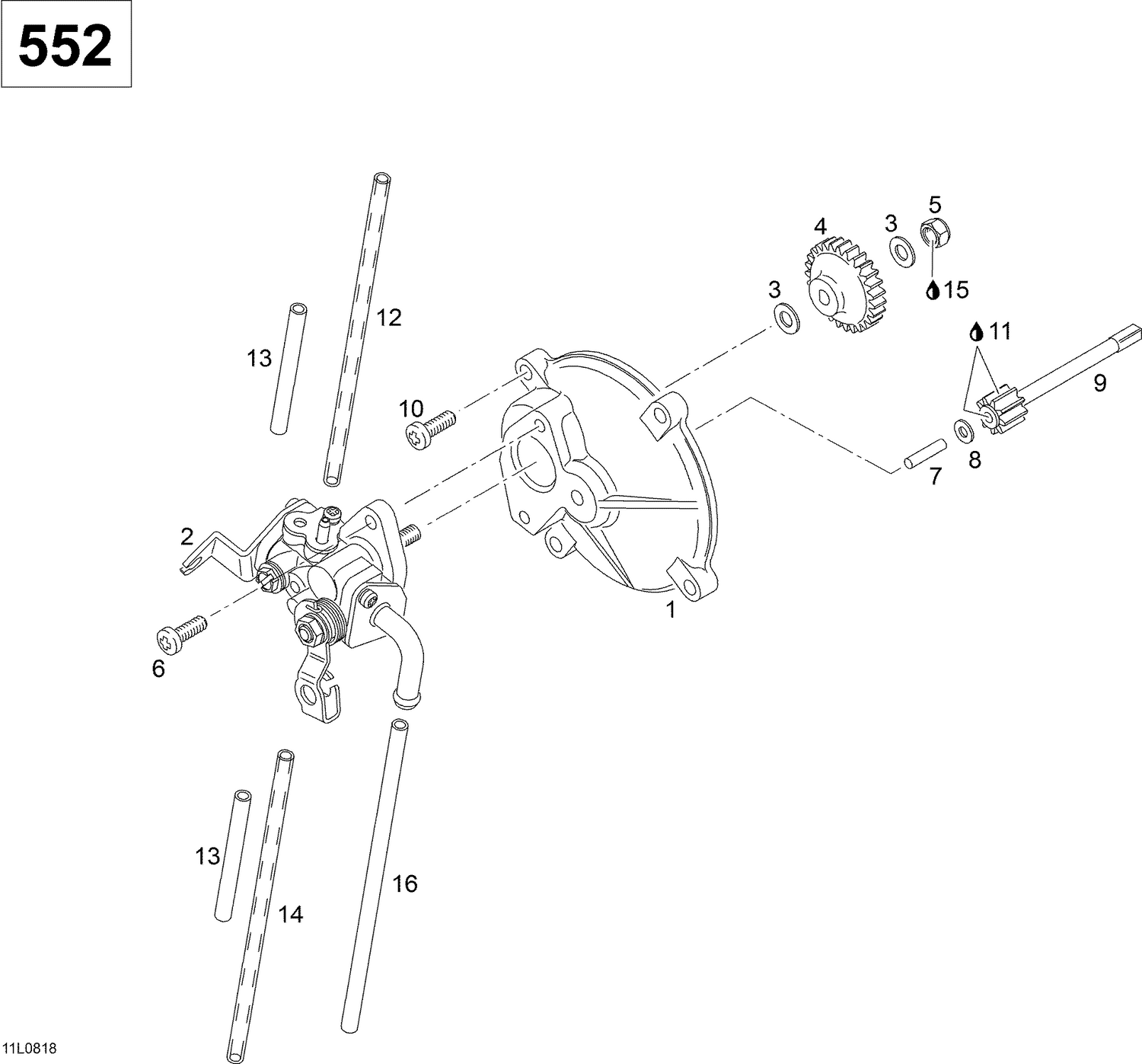

| Ref | Part Number | Description |
|---|
| 1 |
420910160 |
PUMP MOUNTING FLANGE - Call your local BRP dealership |
| 2 |
420889070 |
OIL PUMP ASSY - Call your local BRP dealership |
| 3 |
420927945 |
FLAT WASHER - Call your local BRP dealership |
| 4 |
420935930 |
Oil pump gear (27 tooth) |
| 5 |
232561414 |
Elastic Stop Nut M6 |
| 6 |
420841971 |
Self tapping screw M 5.5 x 16 |
| 7 |
420832260 |
NEEDLE PIN - Call your local BRP dealership |
| 8 |
420244072 |
Washer-Flat 4 This part replaces 420244073. |
| 9 |
420935970 |
Gear (9-tooth) |
| 10 |
420841976 |
SCREW - Call your local BRP dealership |
| 11 |
413707000 |
Molykote 111 |
| 12 |
414413800 |
MAG side oil line 325 mm |
| 13 |
276000048 |
Hose 6 mm This part replaces 420960725. |
| 14 |
420660495 |
OIL LINE 400MM - Call your local BRP dealership |
| 15 |
293800060 |
Loctite 243, 10 ml |
