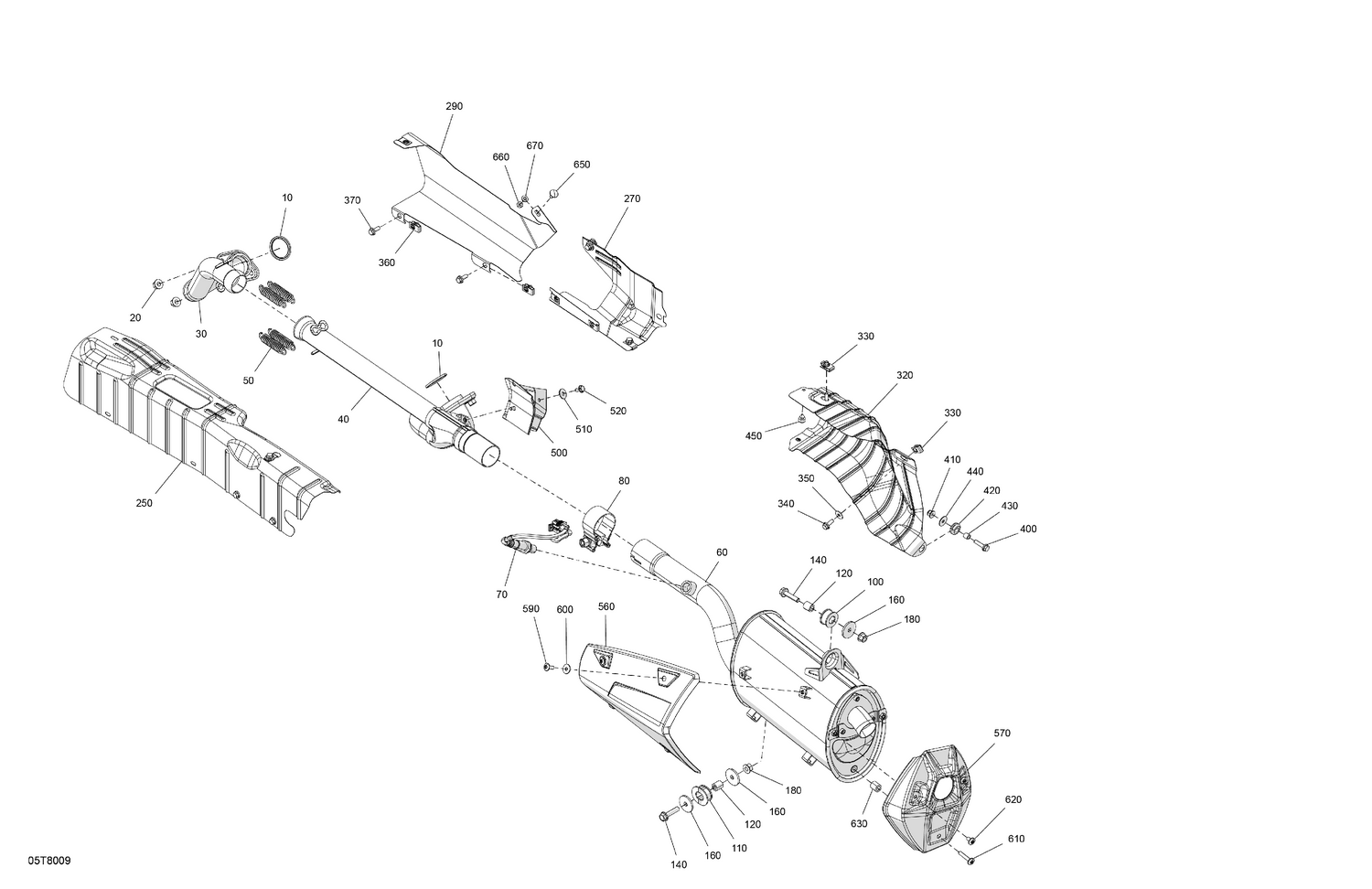

02- Engine - Exhaust
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707600317 | Gasket |
| 20 | 233081416 | Hex. Flange Nut M8 |
| 30 | 707600764 | Front Head Pipe |
| 40 | 707601446 | Rear Head Pipe |
| 50 | 415107100 | Spring |
| 60 | 707602183 | Exhaust Muffler |
| 70 | 707600872 | Oxygen Sensor |
| 80 | 293650228 | Exhaust Pipe Clamp |
| 100 | 707603323 | Vibration Damper This part replaces 707600701. |
| 110 | 707600448 | Rubber |
| 120 | 293900116 | Spacer Bushing |
| 140 | 207683544 | Hex. Flange Screw M8 X 35 |
| 160 | 250200158 | Flat Washer M8 |
| 180 | 233081416 | Hex. Flange Nut M8 |
| 250 | 707603724 | Heat Shield |
| 270 | 707601484 | Protector |
| 290 | 707600996 | Heat Shield |
| 320 | 707601425 | Protector |
| 330 | 250100198 | Panel Nut M6 X 1.0 |
| 340 | 207661644 | Hex. Flange Screw M6 X 16 |
| 350 | 234062410 | Flat Washer 6 mm |
| 360 | 250100198 | Panel Nut M6 X 1.0 |
| 370 | 207661644 | Hex. Flange Screw M6 X 16 |
| 400 | 207662534 | Hex. Flange Screw M6 X 25 |
| 410 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 420 | 293720130 | Overmolded Grommet |
| 430 | 293900105 | Bushing |
| 440 | 224060201 | Flat Washer |
| 450 | 293830005 | Rubber Bumper |
| 500 | 707600932 | Pipe Protector |
| 510 | 250200082 | Flat Washer |
| 520 | 250000574 | Hex. Flange Screw M6 X 12 |
| 560 | 707600710 | Heat Deflector |
| 570 | 707601255 | Heat Shield End Cap |
| 590 | 250000717 | Torx Head Screw M6 X 16 |
| 600 | 234062670 | Stainless Steel Flat Washer |
| 610 | 250000541 | Torx Screw M6 X 35 |
| 620 | 250000767 | Torx Truss Screw M6 X 12 |
| 630 | 293900106 | Bushing |
| 650 | 207761244 | Carriage Bolt M6 X 12 |
| 660 | 232561414 | Elastic Stop Nut M6 |
