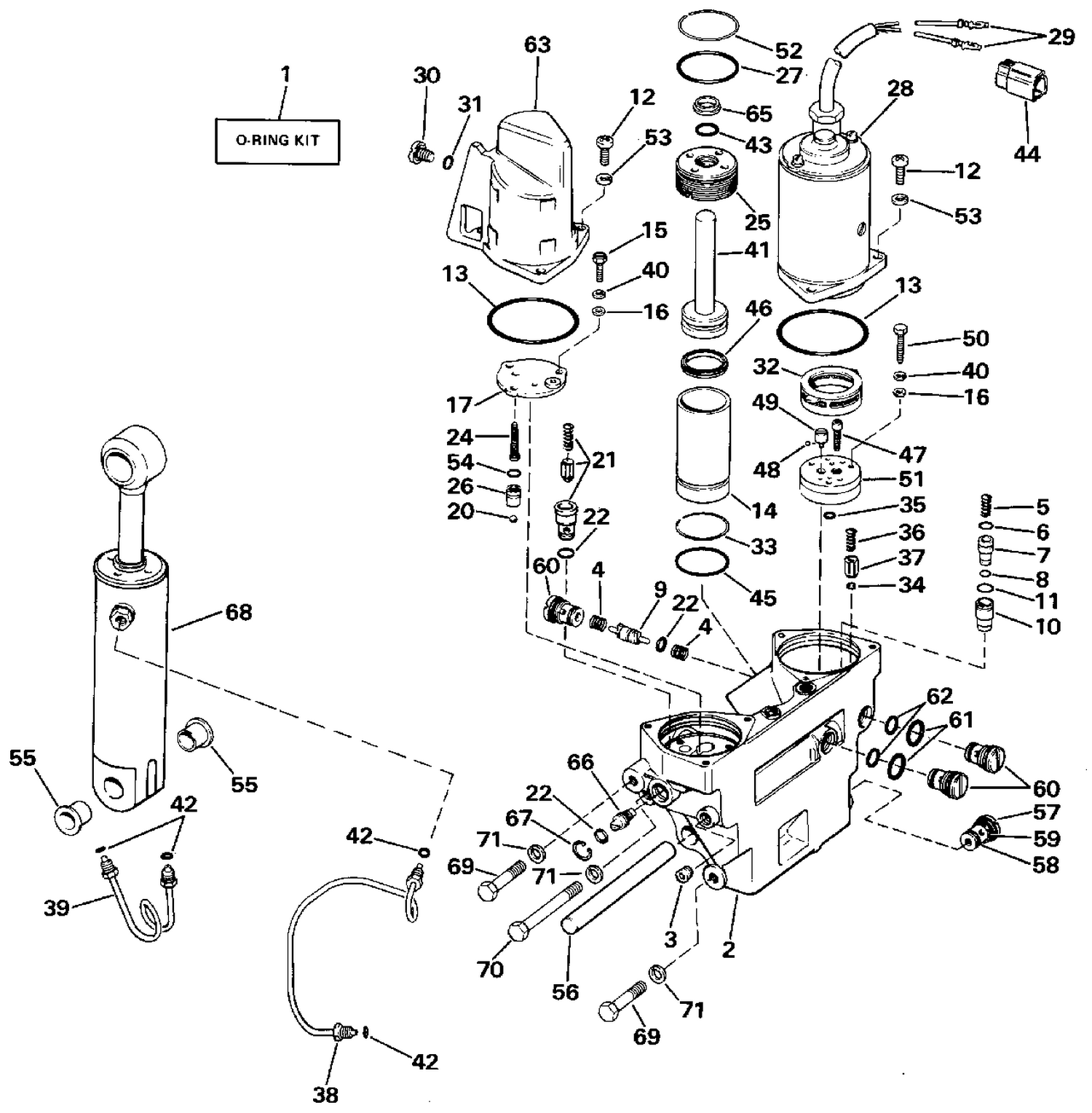

POWER TRIM/TILT HYDRAULIC ASSEMBLY
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0393842 | O-RING KIT, Manifold |
| 6 | 0324677 | JOINT TORIQUE, mamelon, vidange inférieure |
| 8 | 0324678 | JOINT TORIQUE Galet de came de papillon |
| 28 | 0394176 | TRIM /TILT MOTOR |
| 40 | 0360252 | WASHER This part replaces 0306311. |
| 44 | 0325698 | CONNECTOR |
| 50 | 0321219 | VIS, vis de fixation |
| 55 | 0321246 | BUSHING, Shock absorber, lower |
| 68 | 0397798 | CYLINDER ASSY., Tilt |
| 0398426 | 0398426 | HYDRAULIC ASSY., Trim/tilt |
| 0398606 | 0398606 | BRUSH & SEAL KIT |
| 0583522 | 0583522 | BRUSH & SEAL KIT |
