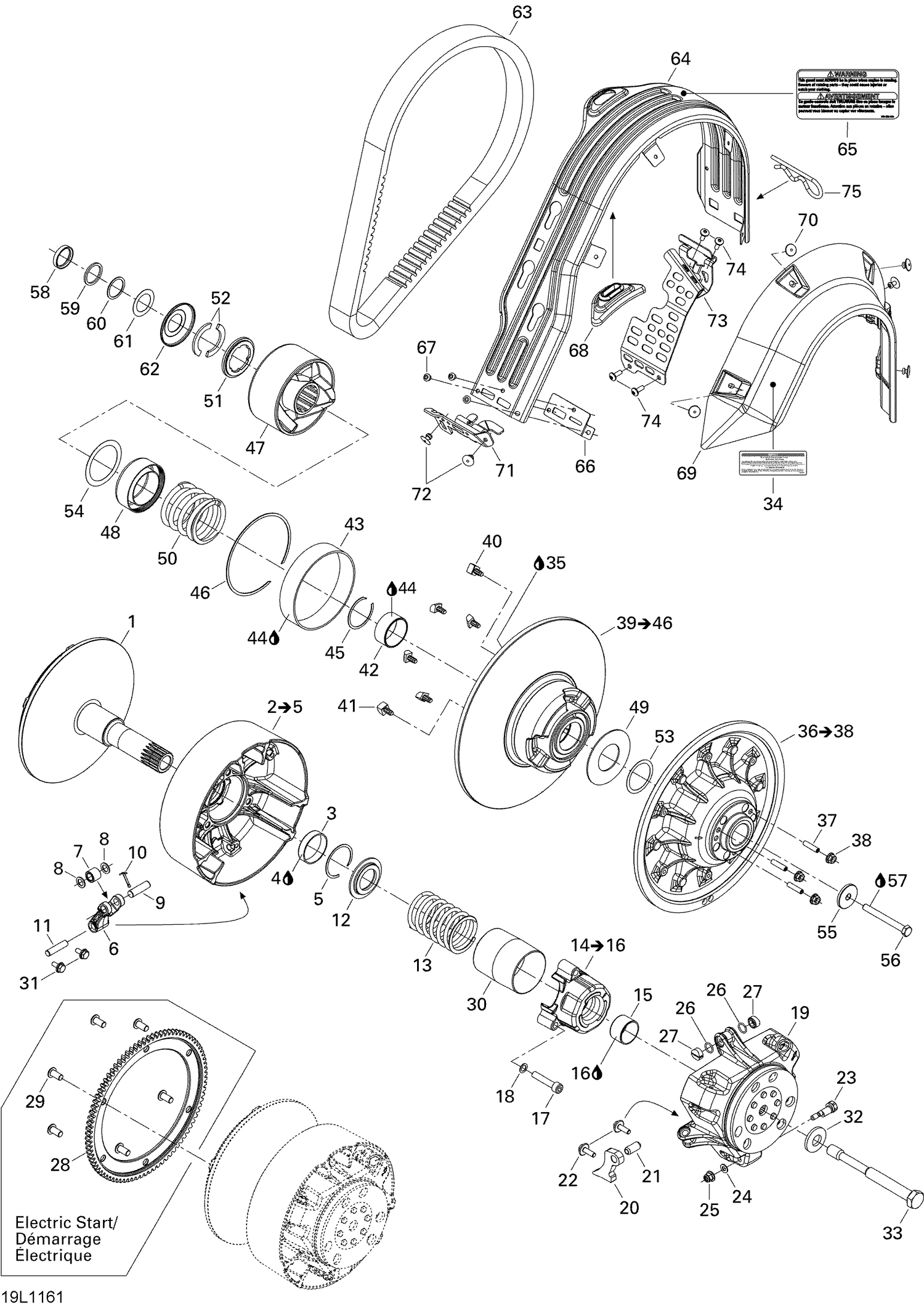

| Ref | Part Number | Description |
|---|
| 1 |
417222937 |
Fixed Flange Ass'y |
| 3 |
417222758 |
Bushing Outer Half |
| 4 |
219702967 |
Adhesive LOCTITE 680 - Call your local BRP dealership This part replaces 293800118. |
| 5 |
293370037 |
Circlip |
| 6 |
417222671 |
Lever |
| 7 |
417222947 |
Roller |
| 8 |
417004302 |
Stopper Washer |
| 9 |
417004308 |
Pin |
| 10 |
250400060 |
Cotter Pin This part replaces 732958001. |
| 11 |
417223164 |
Lever Axle |
| 12 |
417222312 |
Spring Seat |
| 13 |
414748600 |
CLUTCH SPRING, YELLOW/YELLOW - Call your local BRP dealership |
| 15 |
417009204 |
Bushing |
| 16 |
413703100 |
Loctite 609, 10 ml |
| 17 |
205084044 |
Socket Head Screw M8 X 40 |
| 18 |
250200009 |
Lock Washer 8 mm |
| 19 |
417222441 |
Governor Cup |
| 20 |
417222444 |
Ramp 600 |
| 21 |
250400050 |
Spring Pin M10 X 22 |
| 22 |
250000418 |
Flanged Hex. Screw M6 X 18, Scotch Grip |
| 23 |
417223501 |
Calibration Screw This part replaces 417223460. |
| 24 |
417005600 |
Washer |
| 25 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 26 |
732401030 |
O-Ring |
| 27 |
417222992 |
Slider Shoe |
| 30 |
417009205 |
Guard |
| 31 |
250000412 |
Flanged Hex. Screw M6 X 12, Scotch Grip |
| 32 |
250200006 |
Spring Washer 14 mm |
| 33 |
417120000 |
Drive Pulley Bolt |
| 34 |
516003708 |
DECAL, NOTICE, DRIVE PULLEY BOLT - Call your local BRP dealership |
| 35 |
293800070 |
Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 37 |
206262590 |
SOCKET SET SCREW M6 X 25 - Call your local BRP dealership |
| 38 |
233061414 |
Hex. Flanged Nut M6 |
| 40 |
417126373 |
Rear Cam Slider Shoe, Red |
| 41 |
417126374 |
Front Cam Slider Shoe, Black |
| 42 |
417126901 |
BUSHING - Call your local BRP dealership |
| 43 |
417126902 |
BUSHING - Call your local BRP dealership |
| 44 |
413408300 |
Loctite, Black Max, 3 ml |
| 45 |
371911200 |
CIRCLIP - Call your local BRP dealership |
| 46 |
417126878 |
CIRCLIP - Call your local BRP dealership |
| 47 |
417126445 |
CAM ASS'Y - Call your local BRP dealership |
| 48 |
417126381 |
GUARD - Call your local BRP dealership |
| 49 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 50 |
417127061 |
Spring |
| 51 |
417126733 |
SPACER - Call your local BRP dealership |
| 52 |
417126734 |
HALF KEY - Call your local BRP dealership |
| 53 |
504112300 |
SHIM - Call your local BRP dealership |
| 54 |
417126322 |
SWIVEL ABUTMENT - Call your local BRP dealership |
| 55 |
517302322 |
Strength Washer |
| 56 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 57 |
293800060 |
Loctite 243, 10 ml |
| 58 |
417300399 |
Spacer |
| 59 |
417300252 |
Spacer |
| 60 |
417300265 |
Spacer |
| 61 |
504112000 |
Shim |
| 62 |
417300238 |
PROTECTOR - Call your local BRP dealership |
| 63 |
417300367 |
Drive Belt |
| 64 |
417300382 |
Belt Guard |
| 65 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership |
| 66 |
417300380 |
Reinforcement |
| 67 |
390909200 |
Avex Rivet |
| 68 |
417300381 |
Guide |
| 69 |
417300356 |
Side Protector |
| 70 |
293150103 |
Pop Rivet 3/16 |
| 71 |
417300386 |
Front Belt Guard Bracket |
| 72 |
293150104 |
Pop Rivet 3/16 |
| 73 |
417300448 |
BELT GUARD BRACKET - Call your local BRP dealership This part replaces 417300378. |
| 74 |
250000742 |
Torx Screw M5 X 14 This part replaces 250000145. |
