Home / BRP / ELECTRIC / 1982 / 12 / 07- Front Suspension And Ski

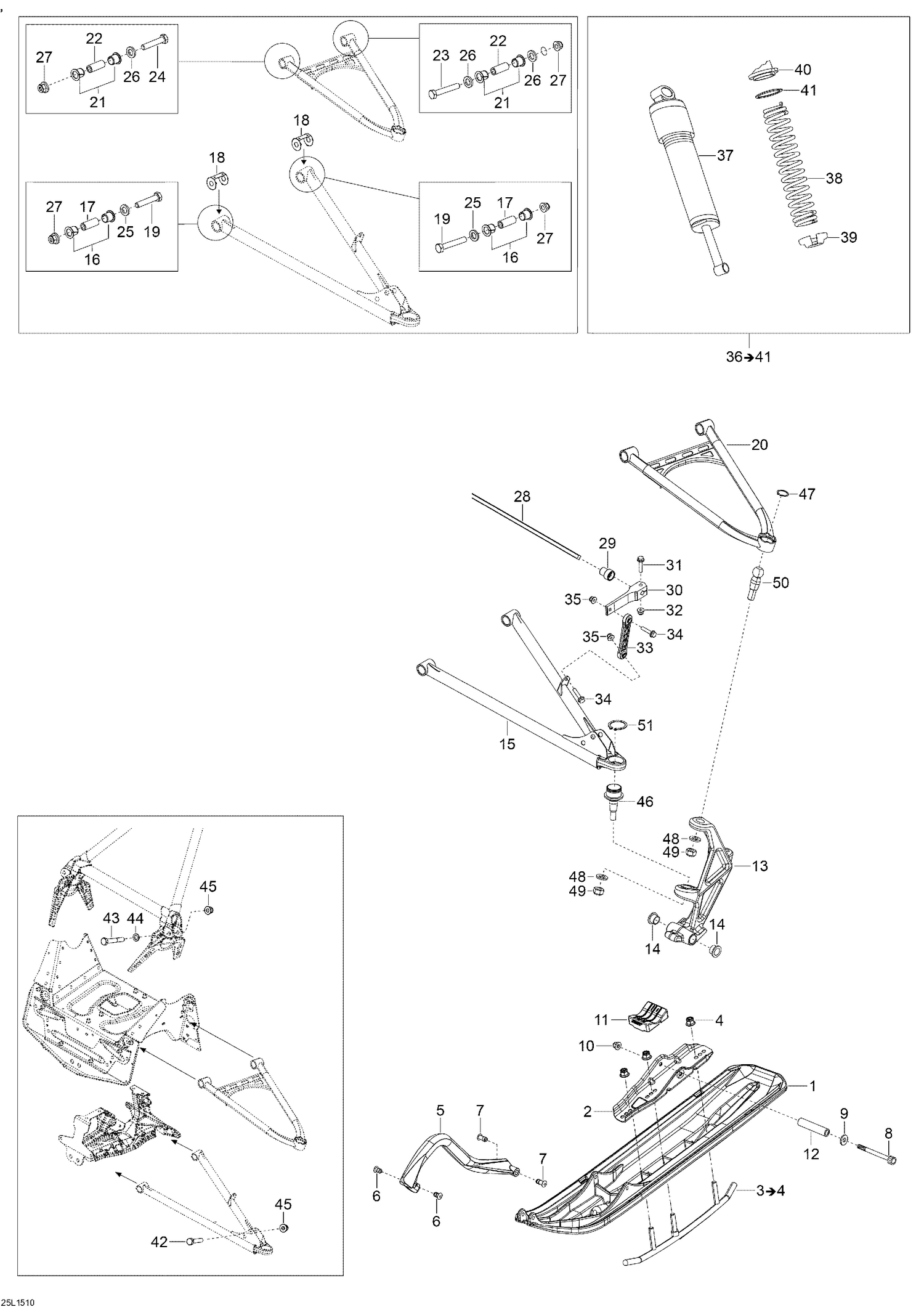

07- Front Suspension And Ski

07- Front Suspension And Ski

Parts (51)

RefPart NumberDescription
1 505073154 Black Blade Ski
2 505073240 Ski Bridge
4 233201414 Hex. Flanged Elastic Nut M10
5 505073109 Handle
6 505071812 Retainer 17mm long
7 505072133 Retainer 23mm Long
8 231080044 Hex. Cap Screw M10 x 140
9 732900049 Washer
10 233201414 Hex. Flanged Elastic Nut M10
11 505073411 Rubber Damper
12 506133300 Ski Axle
13 505073007 LH Ski Leg
13 505073008 RH Ski Leg
14 505072690 Leg Bushing
15 505072664 Black RH Lower Arm
15 505072665 Black LH Lower Arm
16 505073330 Bushing
17 505072209 Bushing This part replaces 505072393.
18 505072634 Wear Plate
19 250001024 Screw Hex. M10 X 70 This part replaces 250000291.
20 505073462 Black LH Upper Arm
20 505073463 Black RH Upper Arm
21 505073329 Bushing
22 505072143 Bushing
23 250001023 Screw Hex. M10 X 60 This part replaces 250000290.
24 250001022 Screw Hex. M10 X 50 This part replaces 250000289.
25 503189564 Washer
26 505072392 Washer
27 250100165 Hex. Flanged Elastic Nut M10
28 505072602 Stabilisator
29 505072064 Bushing
30 505072394 Stabilisator Lever
31 207663046 Hex. Flange Screw M6 X 30
32 233261416 Elastic Flanged Nut M6 X 1.0
33 505072204 Sway Bar Double Joint Link
34 207663046 Hex. Flange Screw M6 X 30
35 233261416 Elastic Flanged Nut M6 X 1.0
37 505072517 Shock
38 505072882 Spring
39 230076 Spring Seat
40 505073625 Adjustment Cam
41 503191872 Spring Guide
42 207005544 Hex. Cap Screw M10 x 55
43 207006544 Hex. Cap Screw M10 x 65
44 503189564 Washer
45 233201414 Hex. Flanged Elastic Nut M10
46 505073636 Ball Joint This part replaces 505072682.
47 293370070 Circlip
48 234021410 Flat Washer
49 250100089 Nut M12
50 505072913 Upper Ball Joint
