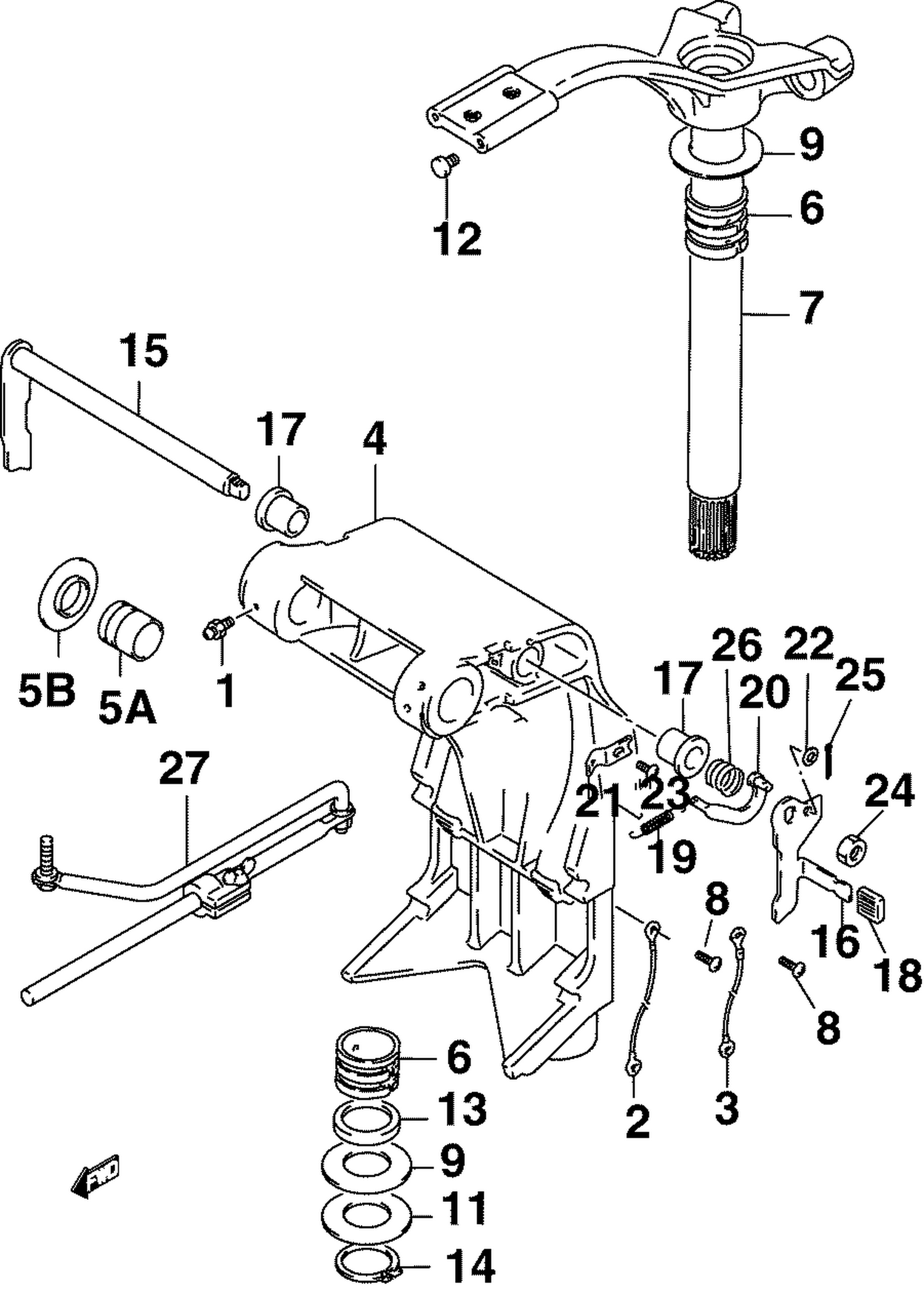

SWIVEL BRACKET
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5030207 | FITTING, GREASE |
| 2 | 5030821 | BONDING LEAD, Exh. hsg. to bracket |
| 3 | 5030822 | LEAD (SWIVEL TO HSG) |
| 4 | 5034527 | BRACKET, SWIVEL 20 in. |
| 5A | 5032634 | BUSHING |
| 5B | 5032635 | BUSHING, Tilt tube |
| 6 | 5030852 | BUSHING, STEERING |
| 8 | 5030407 | SCREW (5X8) |
| 9 | 5031851 | WASHER |
| 11 | 5030477 | SHIM |
| 12 | 5030527 | PLUG |
| 13 | 5030548 | SEAL |
| 14 | 5030572 | CIRCLIP |
| 15 | 5032917 | LEVER, TILT LOCK |
| 16 | 5030842 | LEVER, TILT LOCK PORT |
| 17 | 5030843 | BUSHING, TILT STOP ROD |
| 18 | 5030844 | COVER, Tilt lock lever |
| 19 | 5032918 | SPRING, TILT LOCK LEVER |
| 20 | 5030846 | LINK, TILT LOCK LEVER |
| 21 | 5030847 | BRACKET, TILT LOCK SPRING |
| 23 | 5030409 | SCREW |
| 24 | 5030417 | NUT |
| 26 | 5030597 | SPRING |
