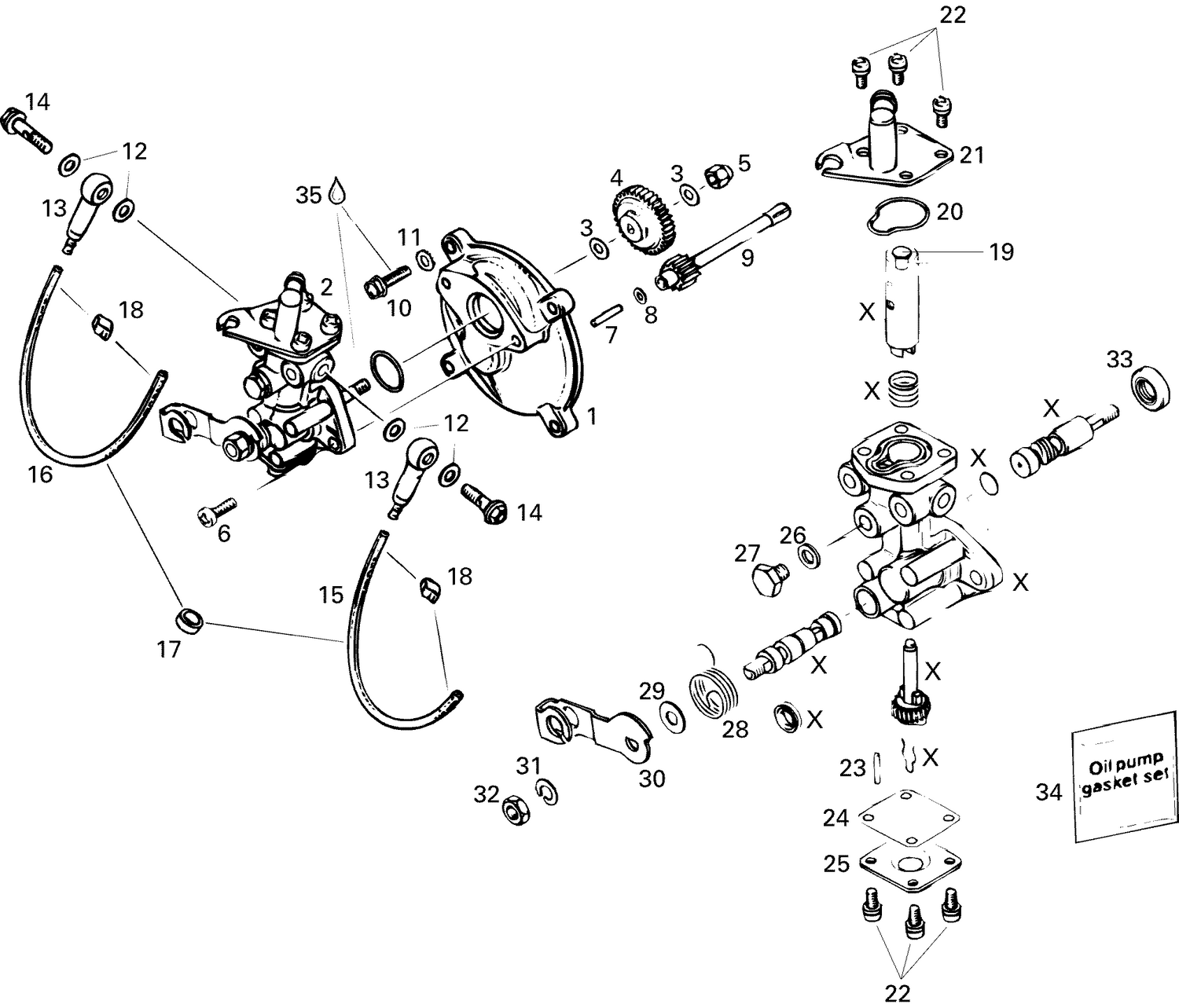

| Ref | Part Number | Description |
|---|
| 1 |
420910160 |
PUMP MOUNTING FLANGE - Call your local BRP dealership |
| 3 |
420927945 |
FLAT WASHER - Call your local BRP dealership |
| 4 |
420935930 |
Oil Pump Gear, 27 Teeth |
| 5 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 6 |
420841971 |
Screw This part replaces 420841970. |
| 7 |
420832260 |
NEEDLE PIN - Call your local BRP dealership |
| 8 |
420244072 |
Flat Washer 4 This part replaces 420244073. |
| 9 |
420935970 |
Gear, 9 Teeth |
| 10 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 11 |
420945530 |
Washer |
| 12 |
404146600 |
Sealing Washer |
| 13 |
420956010 |
Valve Ass’Y |
| 14 |
404146800 |
Banjo Bolt M6 X 16 |
| 15 |
219704404 |
Oil Hose 1500Mm Long |
| 16 |
219704404 |
Oil Hose 1500Mm Long |
| 17 |
420960700 |
Rubber Ring |
| 18 |
420853840 |
Clamp |
| 19 |
Not |
Available As Spare Part - Stopper |
| 20 |
420230475 |
O-Ring |
| 21 |
Not |
Available As Spare Part - Plate Ass'y |
| 22 |
420241975 |
SCREW M4 X 8 WITH LOCK WASHER - Call your local BRP dealership |
| 23 |
Not |
Available As Spare Part - Pin |
| 24 |
420850200 |
Gasket |
| 25 |
Not |
Available As Spare Part - Plate-Casing |
| 26 |
420227505 |
GASKET - Call your local BRP dealership |
| 27 |
420841580 |
Hex. Screw M6 X 8 |
| 28 |
420838020 |
Release Spring |
| 29 |
Not |
Available As Spare Part - Washer |
| 30 |
420848256 |
Control Lever |
| 31 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 32 |
420242621 |
Hex. Nut M6 |
| 33 |
Not |
Available As Spare Part - Seal-Oil |
| 34 |
420995045 |
GASKET SET - Call your local BRP dealership |
