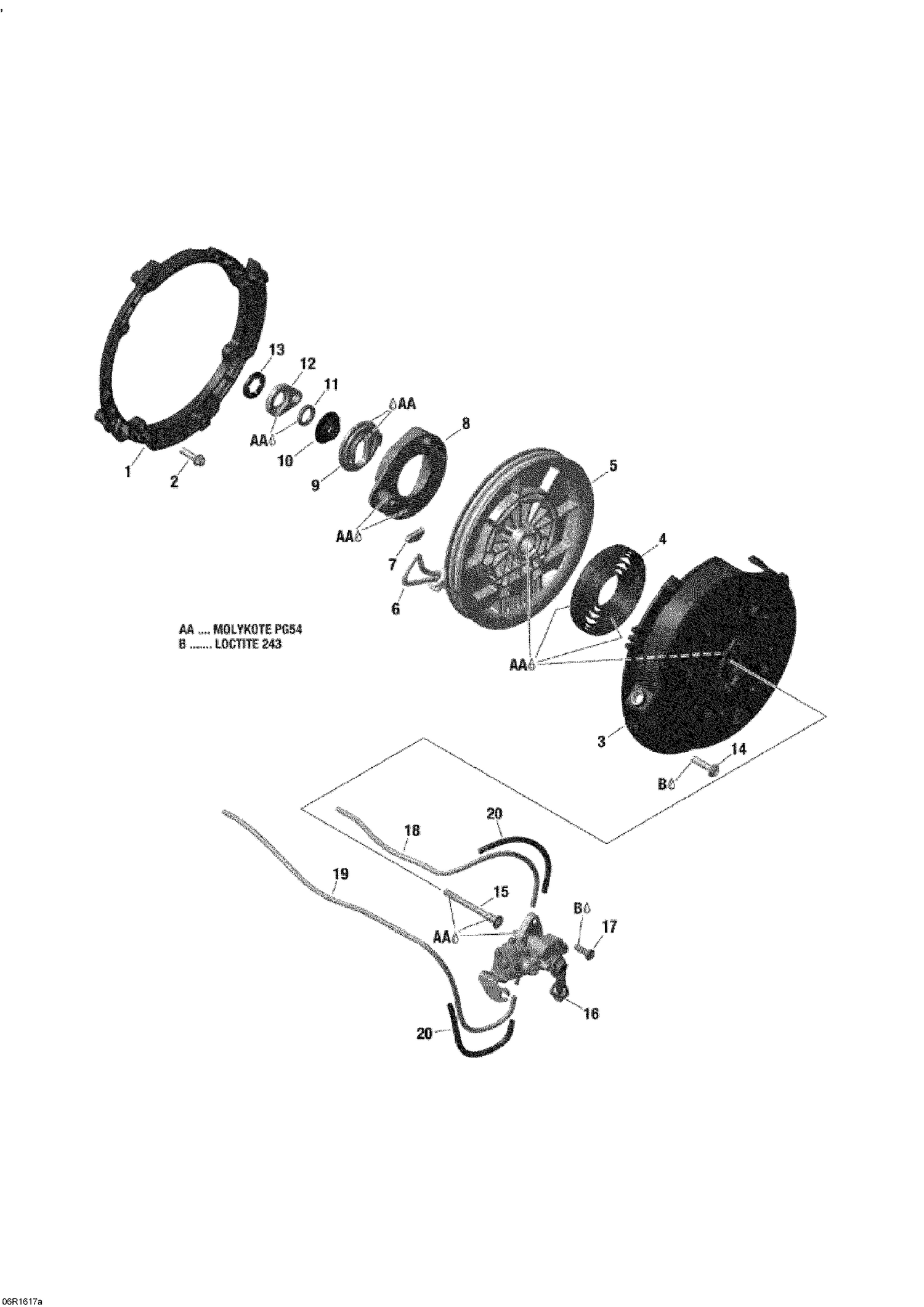

04- Rewind Starter And Oil Pump - 550F
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| AA | Not | Available As Spare Part - Molykote PG 54 |
| 1 | 420810955 | Flange Connector |
| 3 | Not | Available As Spare Part - Starter Housing |
| 4 | 420939115 | Rewind Spring |
| 5 | 420852480 | Rope Sheave |
| 6 | 219704403 | Was 412500100 Rope-Starter |
| 7 | 420852070 | Key Clamp |
| 8 | 420852296 | Pawl |
| 9 | 420852640 | Pawl Lock |
| 10 | 420847926 | Stage Sleeve |
| 11 | 420250400 | O-Ring |
| 12 | 420852520 | Lock Ring |
| 13 | 420845560 | Locking Element |
| 15 | 420820090 | Oil Pump Shaft |
| 16 | 420892291 | Oil Pump |
| 18 | 219704404 | Oil Hose 1500Mm Long |
| 19 | 219704404 | Oil Hose 1500Mm Long |
| 20 | 420960728 | Isolation Line |
