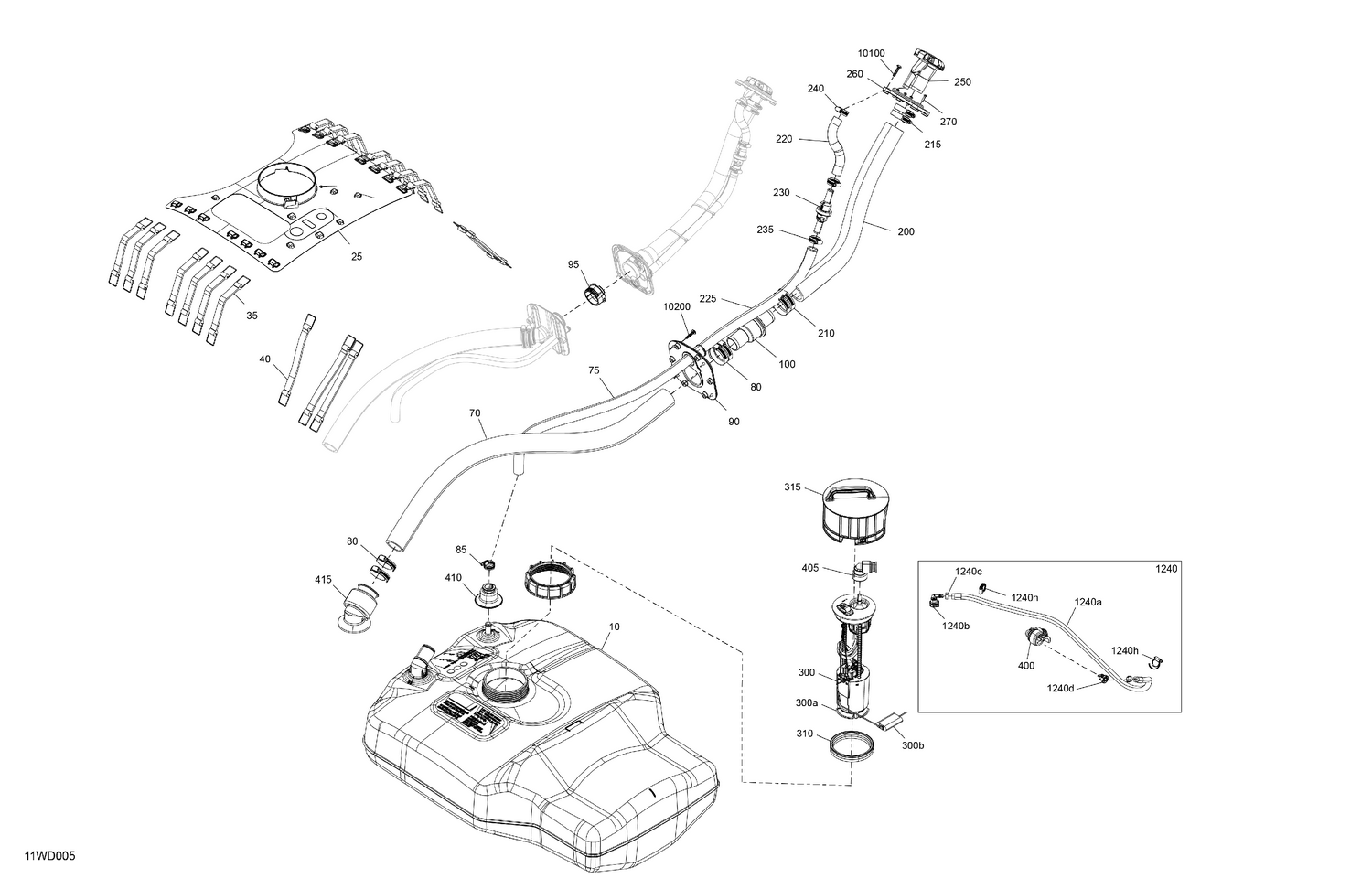

02- MECHANICS - Fuel
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 275501143 | Fuel Tank |
| 25 | 275501017 | Fuel Tank Support |
| 35 | 275501161 | Retaining Strap |
| 40 | 293850087 | Fuel Tank Strap |
| 70 | 275501030 | Hose |
| 75 | 275501138 | Vent Hose This part replaces 275501087. |
| 80 | 293650036 | Tridon Clamp |
| 85 | 293650019 | Tridon Gear Clamp |
| 90 | 275501073 | Through Hull Fitting Sub Ass'y |
| 95 | 275501142 | Adapter |
| 100 | 275501047 | Check Valve |
| 200 | 275501084 | Filler Neck Hose Ext |
| 210 | 293650036 | Tridon Clamp |
| 215 | 293650036 | Tridon Clamp |
| 220 | 275501138 | Vent Hose This part replaces 219704468. |
| 225 | 275501138 | Vent Hose This part replaces 219704468. |
| 230 | 275501103 | Check Valve |
| 235 | 293650019 | Tridon Gear Clamp |
| 240 | 293650019 | Tridon Gear Clamp |
| 250 | 275501080 | Filler Neck |
| 260 | 275501079 | Fuel Cap Spacer |
| 270 | 250000287 | Flange Torx Screw K40 X 16 |
| 300a | 270600113 | Fuel Filter |
| 300b | 275500780 | Sensor Lever |
| 310 | 293250173 | Gasket |
| 315 | 273000416 | Fuel Pump Cover |
| 400 | 275501058 | Connector Guard |
| 405 | 275501063 | Connector Guard |
| 410 | 275501070 | Hose Guard |
| 415 | 275501071 | Hose Guard |
| 1240a | 219704359 | Hose I.D. 7.9Mm 3000Mm Long |
| 1240b | 275500921 | Quick Disconnect |
| 1240c | 293650053 | Crimp Clamp |
| 1240d | 293710105 | Elbow Fitting 90° |
| 1240h | 293650284 | Gear Clamp |
| 10100 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
