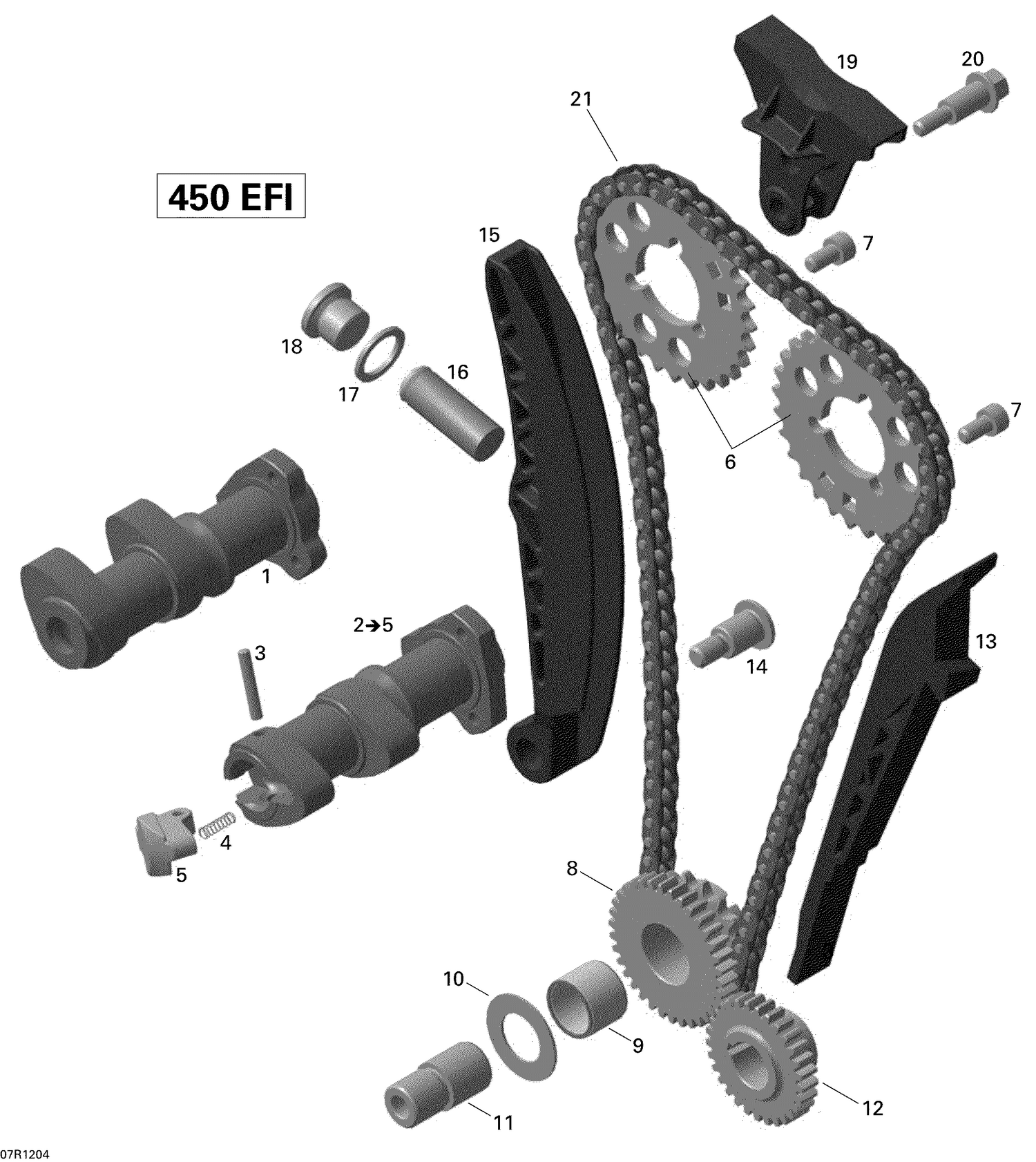

| Ref | Part Number | Description |
|---|
| 1 |
420220692 |
Camshaft, Intake |
| 3 |
Not |
Available As Spare Part - Needle Pin M4 X 25 |
| 4 |
Not |
Available As Spare Part - Spring |
| 5 |
Not |
Available As Spare Part - Centrifugal Weight |
| 6 |
420435112 |
TIMING GEAR - Call your local BRP dealership |
| 7 |
420840379 |
Socket Head Screw M6 X 11.5 This part replaces 420840371. |
| 8 |
420434705 |
INTERMEDIATE GEAR - Call your local BRP dealership |
| 9 |
420832990 |
NEEDLE BEARING - Call your local BRP dealership |
| 10 |
420627292 |
THRUST WASHER - Call your local BRP dealership |
| 11 |
420229135 |
BEARING PIN - Call your local BRP dealership |
| 12 |
420434721 |
CONTROL GEAR, 29 TEETH - Call your local BRP dealership |
| 13 |
420236310 |
Chain Guide |
| 14 |
420241150 |
BEARING BOLT M8 - Call your local BRP dealership |
| 15 |
420236300 |
Chain Tension Guide |
| 16 |
415129408 |
Chain Tensioner |
| 17 |
420430622 |
O-Ring |
| 18 |
420240234 |
Plug Screw M16 X 1.5 |
| 19 |
420236320 |
CHAIN GUIDE BOW - Call your local BRP dealership |
| 20 |
420240960 |
DISTANCE SCREW M6 X 16 - Call your local BRP dealership |
