Parts Catalog

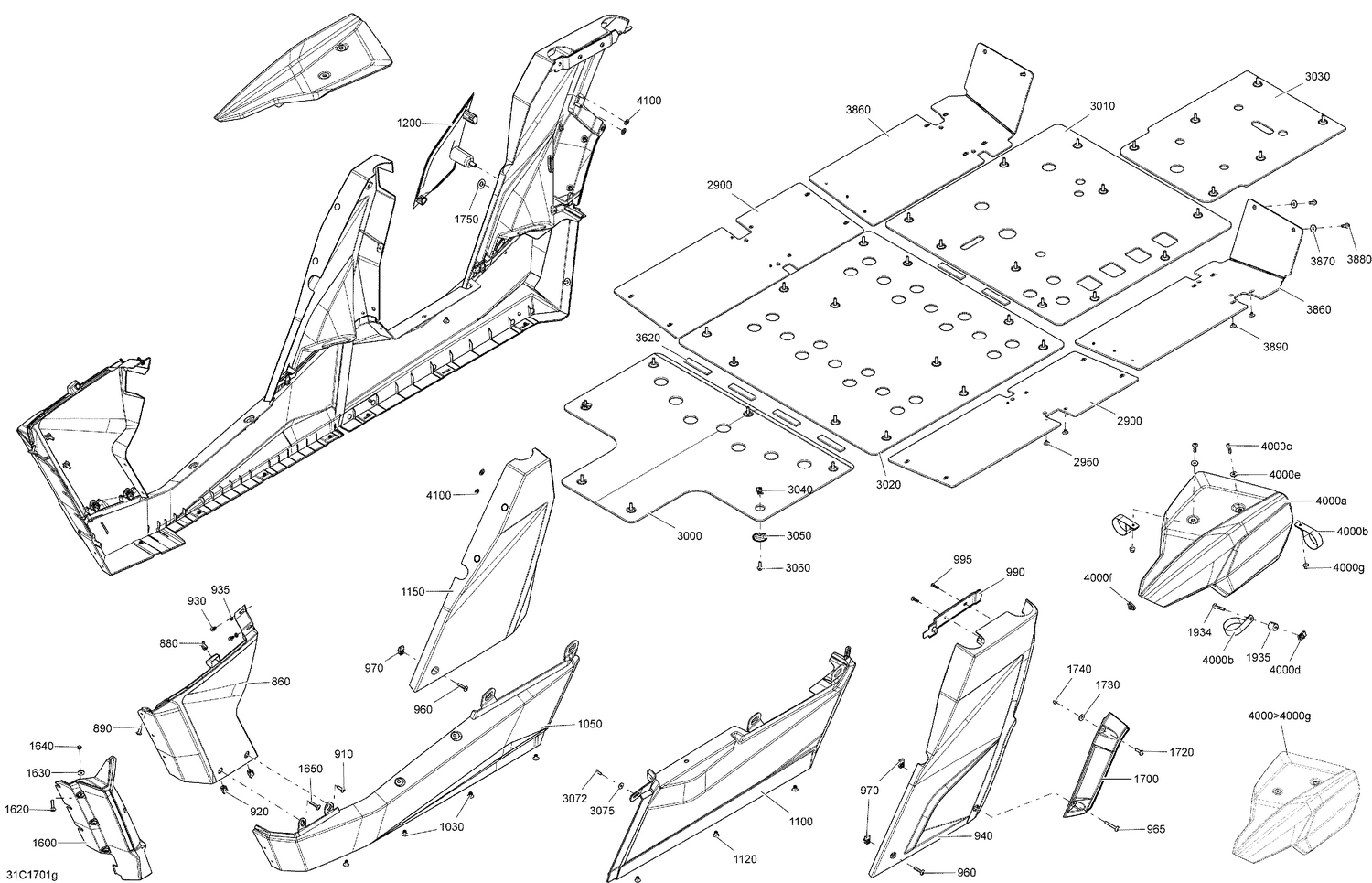

09- Body And Accessories - Max, Central, All Models

Parts (39)

Ref	Part Number	Description
880	293150230	Tuflok Plastic Rivet This part replaces 293150089.
890	250000722	Torx Screw M6 X 20
910	250000722	Torx Screw M6 X 20
920	250100198	Panel Nut M6 X 1.0 This part replaces 250000048.
930	250000760	Torx Screw Truss Head K50X20 T20
935	234051410	Flat Washer M5
960	250000843	Torx Truss Screw M6 X 30
965	250000748	Torx Screw M6 X 45
970	250100198	Panel Nut M6 X 1.0 This part replaces 250000048.
990	705007916	Support Skid Plate
995	250000760	Torx Screw Truss Head K50X20 T20
1030	293150104	Pop Rivet 3/16"
1100	705005425	Black, LH Rear Lower Panel
1100	705005426	Black, RH Rear Lower Panel
1120	293150104	Pop Rivet 3/16"
1934	250000867	Torx Truss Hex. Screw M6X35, Nylon Patch This part replaces 250000415.
1935	705009217	Spacer
2900	705008421	Side Protector Plate
2950	293150104	Pop Rivet 3/16"
3000	705007055	Middle Protector Plate
3010	705007056	Rear Protector Plate
3020	705009447	Skid Plate
3030	705007227	Rear Protector Plate
3040	250100198	Panel Nut M6 X 1.0 This part replaces 250000048.
3050	705007171	Cup
3060	210262050	Hexagonal Head Screw
3072	250000720	Torx Screw K50 X 16
3075	250200025	Washer M5
3620	291001932	Pad
3860	705007038	RH Lateral Skid Plate
3870	250200097	Flat Washer
3880	210262050	Hexagonal Head Screw
3890	293150104	Pop Rivet 3/16"
4000b	705005626	Attache en "P", 2" Dia.
4000c	207662054	Hex. Flange Screw M6 X 20
4000d	250100198	Panel Nut M6 X 1.0 This part replaces 250000048.
4000e	234062670	Stainless Steel Flat Washer
4000f	293750008	Tie Wrap 368 mm
4000g	233261494	Hex. Flange Elastic Nut M6
