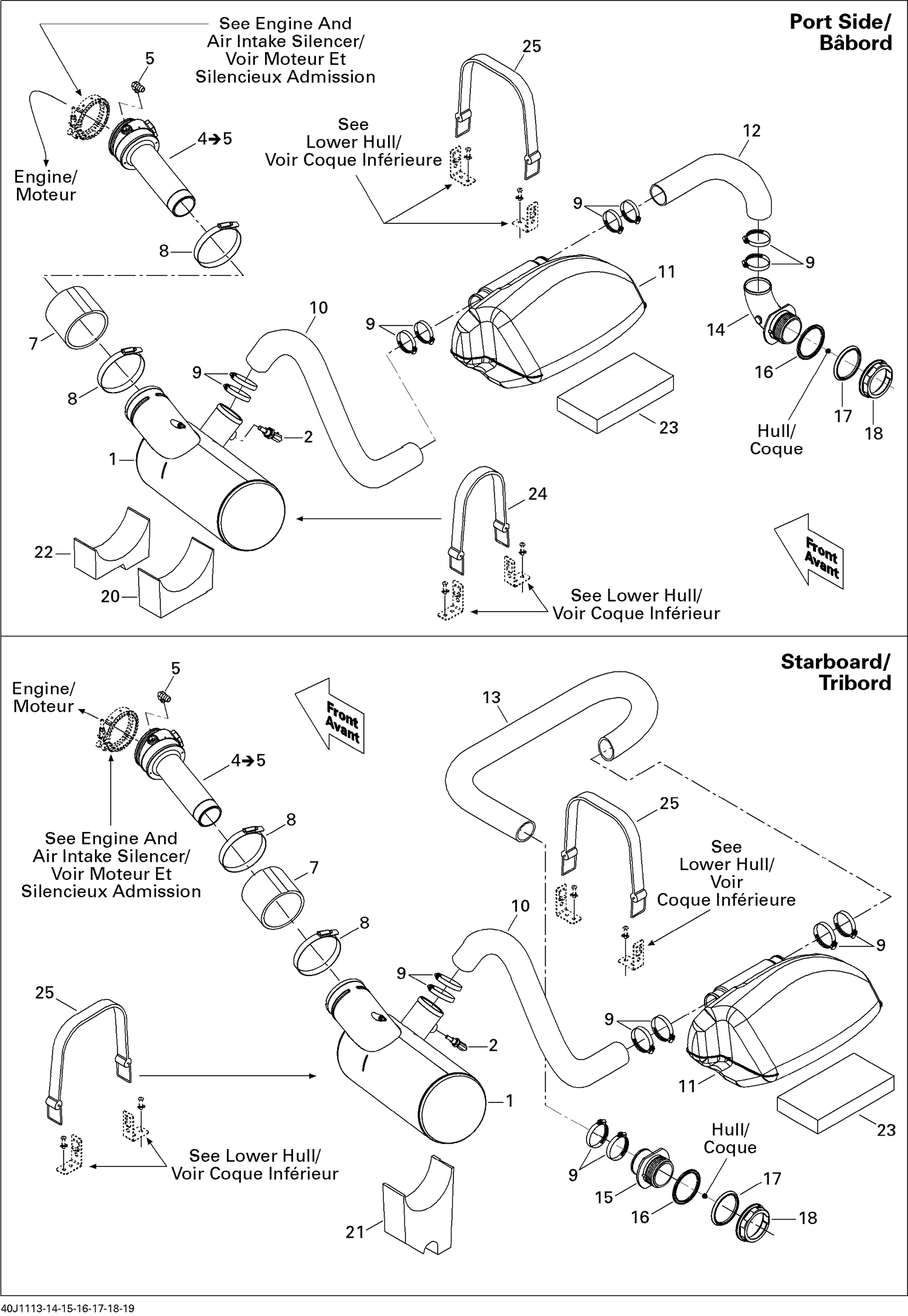

| Ref | Part Number | Description |
|---|
| 1 |
274001350 |
MUFFLER_EXHAUST - Call your local BRP dealership |
| 2 |
278002895 |
Temperature Sensor This part replaces 278001016. |
| 5 |
293700023 |
Elbow Fitting 90° |
| 7 |
274001348 |
Hose |
| 8 |
293650202 |
Gear Clamp |
| 9 |
293650179 |
Tridon Clamp |
| 10 |
204340533 |
EXHAUST HOSE - Call your local BRP dealership |
| 11 |
274001045 |
RH Resonator |
| 16 |
293250041 |
GASKET - Call your local BRP dealership |
| 17 |
274000225 |
STABILIZING WASHER - Call your local BRP dealership |
| 18 |
274000224 |
Nut 72 mm |
| 20 |
204340502 |
SUPPORT_EXHAUST - Call your local BRP dealership |
| 21 |
204340521 |
MUFFLER SUPPORT - Call your local BRP dealership |
| 22 |
204340522 |
MUFFLER SUPPORT - Call your local BRP dealership |
| 23 |
204340491 |
MUFFLER SUPPORT - Call your local BRP dealership |
| 24 |
293850093 |
Fuel Tank Strap |
