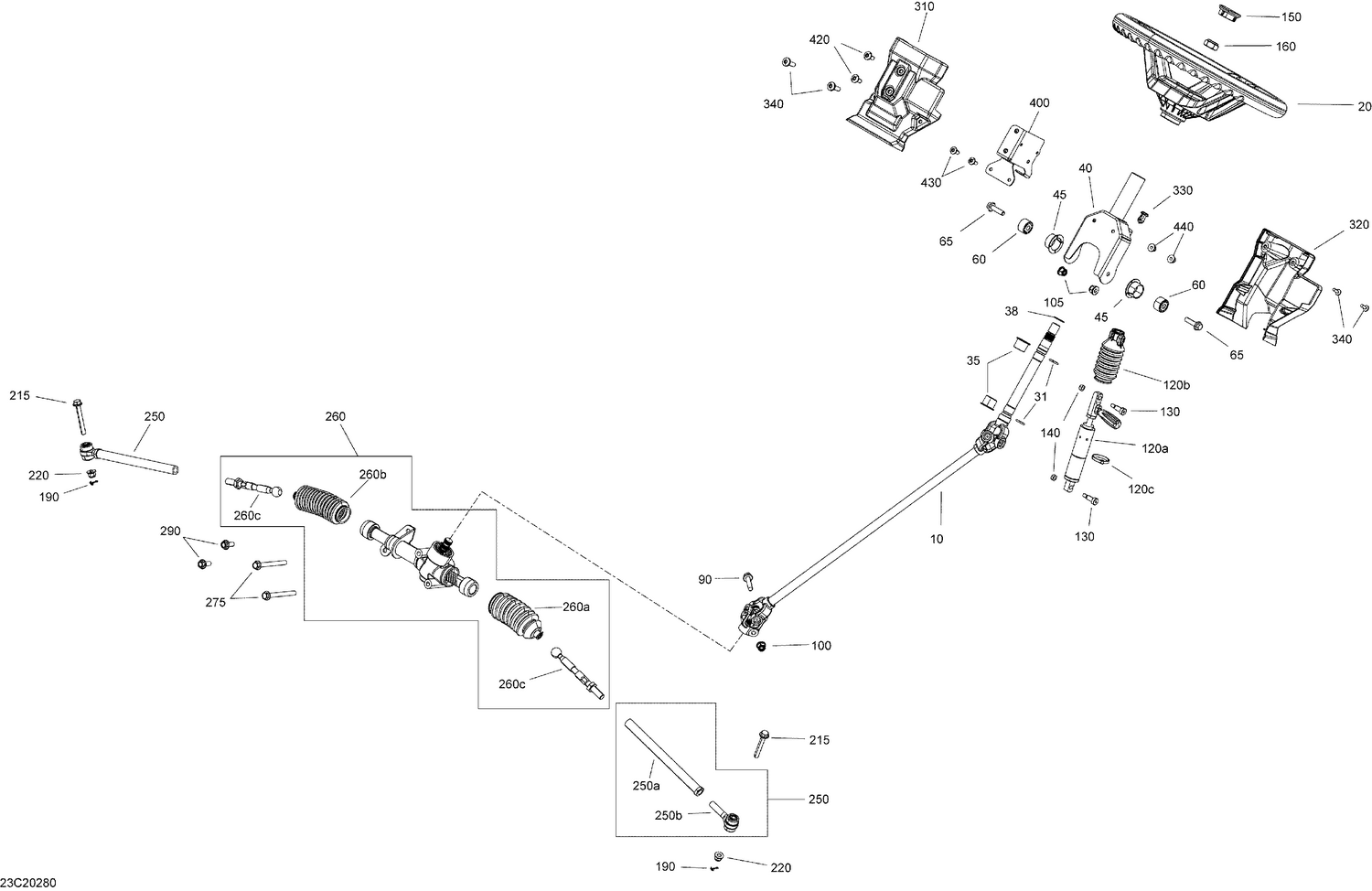

07- Steering — Parts Catalog

Ref	Part Number	Description
10	709402491	Steering Column This part replaces 709402324.
20	709401513	Steering Wheel
31	293300144	O-Ring
35	709402725	Steering Bushing This part replaces 709401733.
38	293370110	Circlip
40	709401602	Steering Support
45	709401603	Bushing
60	709401604	Bushing
65	207683044	Hex. Flange Screw M8 X 30
90	250001021	Hex. Flange Screw M8 X 35
100	233281416	Hex. Elastic Flange Nut M8
105	233281416	Hex. Elastic Flange Nut M8
120a	709402506	Adjustment Cylinder This part replaces 709402419.
120b	709401232	Boot Tube Side
120c	414115200	Tie-Rap 180 mm
130	250000669	Socket Head Screw M8 X 16
140	232561414	Elastic Stop Nut M6
150	709401514	Steering Cap
160	232511414	Elastic Lock Nut M16
190	211400017	Cotter Pin
215	250000814	Screw Hex Cap M10 X 75
220	233201436	Hex. Flange Elastic Nut M10 This part replaces 233201416.
250a	715900238	Steering Rod Nut
250b	709401601	Ball Joint
260a	715900235	Boot Kit, Pinion Side
260b	715900236	Boot Kit, Tube Side
260c	715900238	Steering Rod Nut
275	230500046	Hex. Screw M10 X 100, Scotch Grip
290	207502546	Hex. Flange Screw M10 X 25
310	709402012	Steering Box Cover
320	709402013	Steering Box Cover
330	293150230	Tuflok Plastic Rivet
340	250000720	Torx Screw K50 X 16
400	709401962	Flasher Arm Support
420	250000721	Torx Truss Screw M6 X 16
430	250000712	Torx Screw M6 X 20
