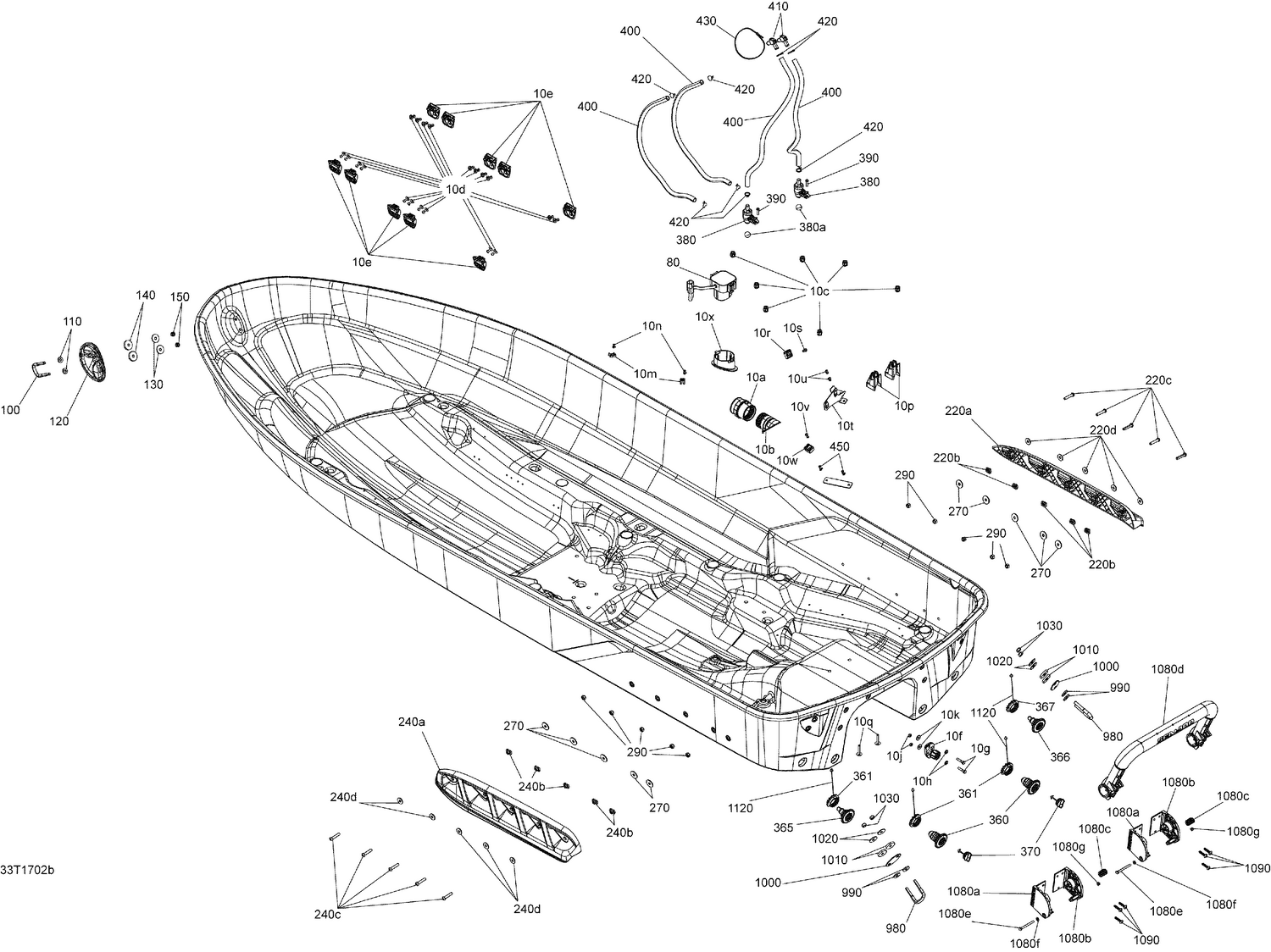

09- Hull - All Models
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 293450355 | HULL INSERT - Call your local BRP dealership |
| 10b | 293450309 | Outer Hull Insert |
| 10c | Not | Available As Spare Part - Hull Insert |
| 10d | 293150123 | Pop Rivet 3/16" |
| 10e | 270000933 | Strap Retaining |
| 10f | 277001881 | Cable Adaptor Ass'y |
| 10g | 207063060 | Hex. Screw M6 X 30 |
| 10h | 250200114 | Sealing Washer |
| 10j | 232561200 | Brass Elastic Stop Nut M6 |
| 10k | 234062600 | Flat Washer M6, Stainless |
| 10m | 293750026 | Tie Rap Mount |
| 10n | 293150037 | Avdel Rivet 3/16" |
| 10p | 270000988 | Strap Anchor |
| 10q | 250000399 | Hexagonal Cap Screw M6 X35 |
| 100 | 292000933 | U-Clamp |
| 110 | 293050001 | Flat Washer M8.5 x 18 |
| 120 | 292001867 | BOW CUP - Call your local BRP dealership |
| 130 | 250200175 | Flat Washer 8 mm, Stainless This part replaces 250200011. |
| 140 | 293830037 | Rubber Washer |
| 150 | 232581200 | Hex. Elastic Nut M8 Brass |
| 270 | 250200175 | Flat Washer 8 mm, Stainless This part replaces 250200011. |
| 290 | 232581200 | Hex. Elastic Nut M8 Brass |
| 360 | 292001580 | Drain Ass'y |
| 361 | 292001825 | Plastic Nut |
| 370 | 292002022 | Plug Ass'y This part replaces 292001583. |
| 380a | 293830080 | Floating Ball |
| 390 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 400 | 219704356 | Was 275500008 Hose 12 mm |
| 410 | 293710152 | Fitting Elbow 90° |
| 420 | 293750001 | Tie Wrap 94 mm |
| 430 | 293750008 | Tie Wrap 368 mm |
| 450 | 293150037 | Avdel Rivet 3/16" |
| 980 | 292000933 | U-Clamp |
| 990 | 279000336 | Flat Washer This part replaces 279000164. |
| 1000 | 291001386 | Black, Finition Plate |
| 1010 | 293830037 | Rubber Washer |
| 1020 | 250200175 | Flat Washer 8 mm, Stainless This part replaces 250200011. |
| 1030 | 232581200 | Hex. Elastic Nut M8 Brass |
