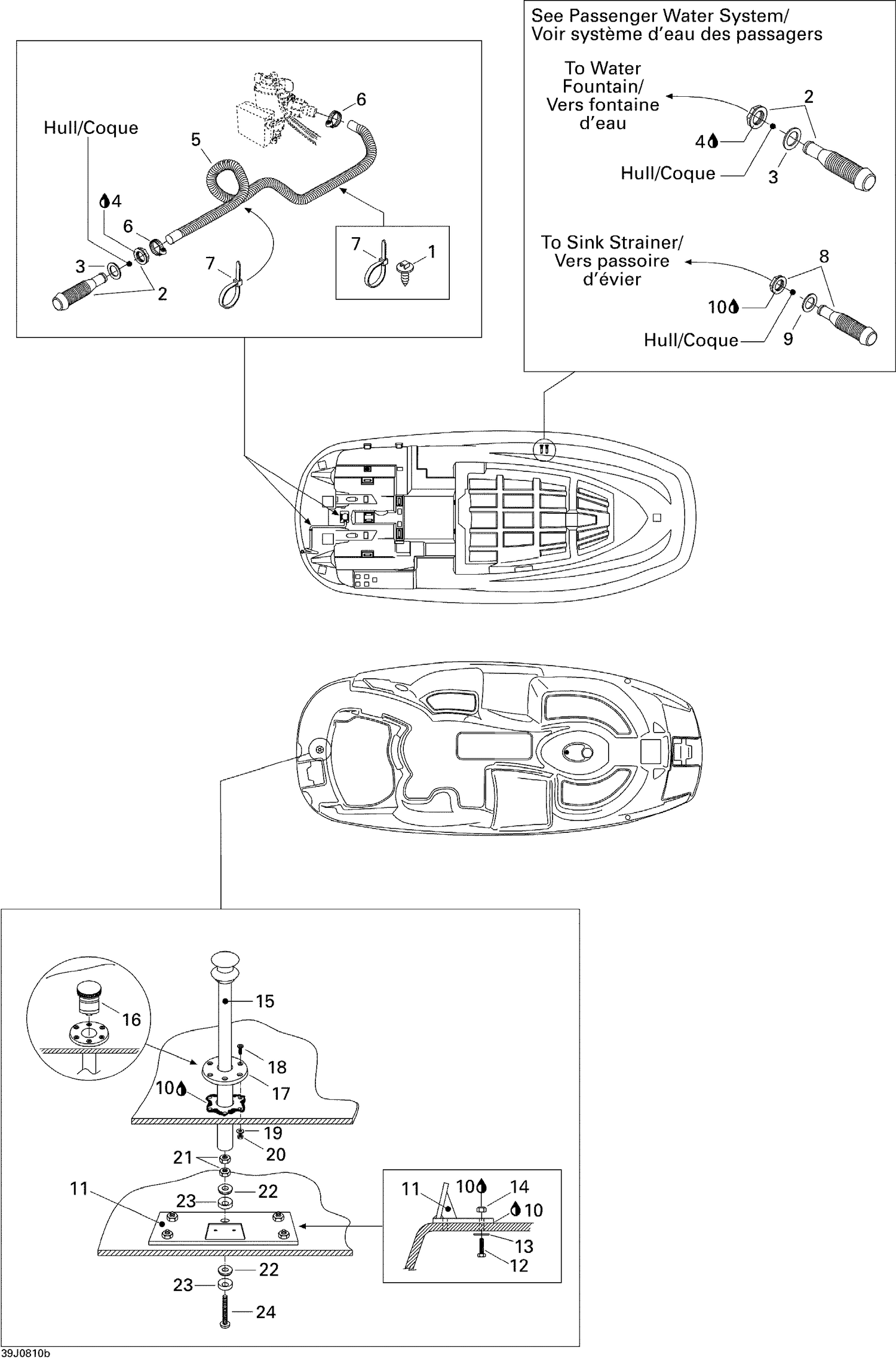

| Ref | Part Number | Description |
|---|
| 1 |
293730006 |
Black, Dart |
| 2 |
293710162 |
Fitting This part replaces 293710015. |
| 3 |
293250006 |
GASKET - Call your local BRP dealership |
| 4 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 5 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership |
| 6 |
293650016 |
Tridon Clamp |
| 7 |
414115200 |
Tie-Rap 180 mm |
| 8 |
204100028 |
Thru Hull Fitting 5/8" |
| 9 |
293250028 |
GASKET - Call your local BRP dealership |
| 10 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 11 |
204050671 |
DECK SUPPORT ASS'Y. - Call your local BRP dealership |
| 12 |
250000188 |
HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership |
| 13 |
234002600 |
Flat Washer 10 mm, Stainless |
| 14 |
232501600 |
HEX. ELASTIC NUT M10 - Call your local BRP dealership |
| 15 |
204050682 |
SKI PYLON ASS'Y - Call your local BRP dealership |
| 16 |
204073209 |
Plug Ass'y |
| 17 |
204050677 |
Ski Post Ass'y |
| 18 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 19 |
234062600 |
Flat Washer M6, Stainless |
| 20 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 21 |
204100169 |
Hex. Nut 3/4-10 |
| 22 |
204100167 |
SPHERICAL WASHER A - Call your local BRP dealership |
| 23 |
204100168 |
SPHERICAL WASHER B - Call your local BRP dealership |
