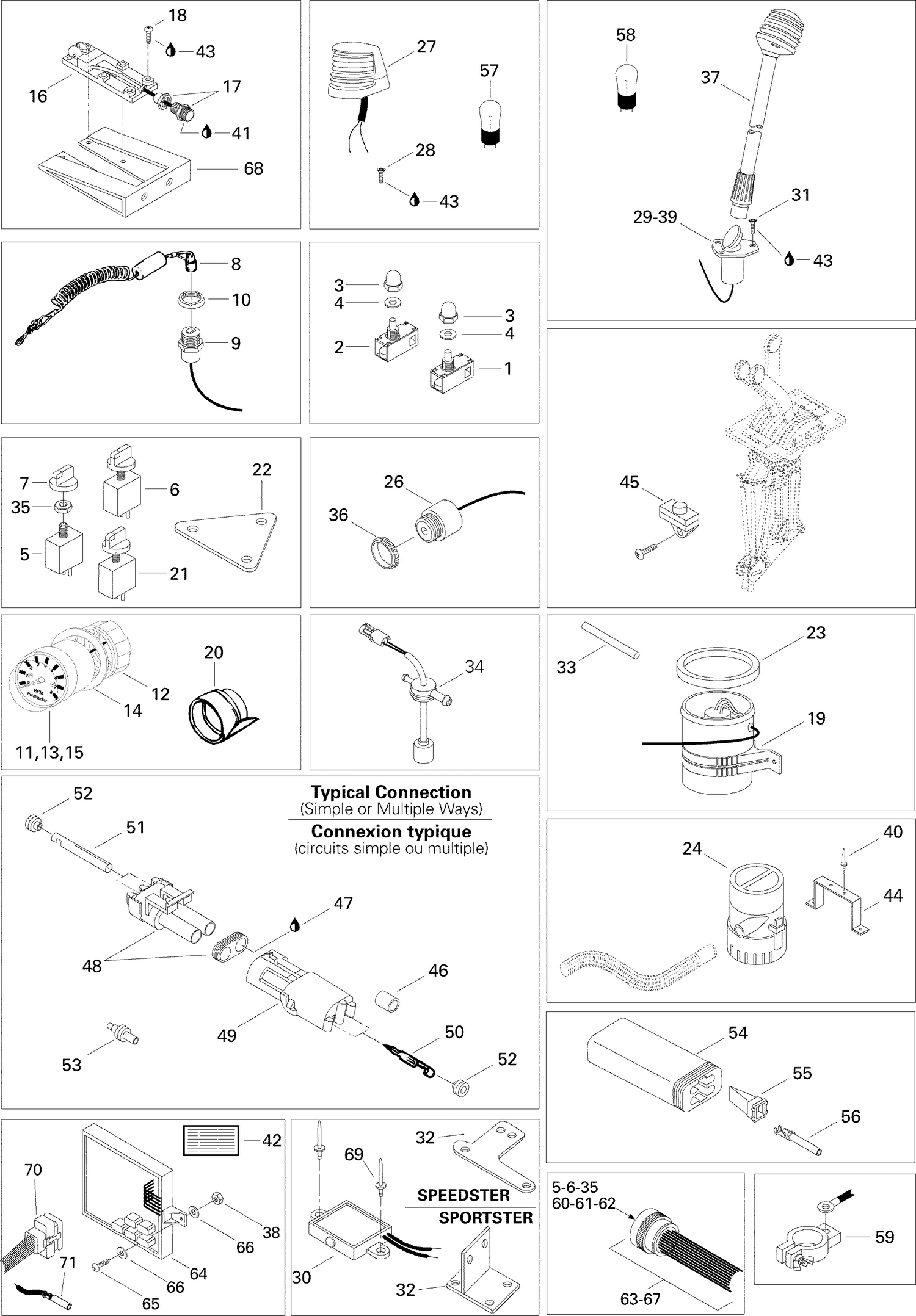

| Ref | Part Number | Description |
|---|
| 1 |
278000622 |
RH IGNITION SWITCH - Call your local BRP dealership |
| 2 |
XXX |
Not Available As Spare Parts |
| 3 |
278000565 |
IGNITION SWITCH CAP, RED - Call your local BRP dealership |
| 4 |
213200017 |
Flat Washer |
| 5 |
278000540 |
Fan Switch |
| 6 |
278000541 |
Light Switch |
| 7 |
278000542 |
SWITCH CAP - Call your local BRP dealership |
| 8 |
278002199 |
Safety Lanyard, Antitheft This part replaces 295500382. |
| 9 |
278002773 |
Safety Switch This part replaces 278000646. |
| 10 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 11 |
XXX |
Not Available As Spare Parts |
| 12 |
278000743 |
Gauge Nut |
| 13 |
XXX |
Not Available As Spare Parts |
| 14 |
293250040 |
Gasket |
| 15 |
278000745 |
Fuel/Oil Gauge |
| 16 |
XXX |
Not Available As Spare Parts |
| 17 |
XXX |
Not Available As Spare Parts |
| 18 |
XXX |
Not Available As Spare Parts |
| 19 |
278000538 |
Terminal 45°, Big Hole |
| 20 |
293720005 |
GAUGE SUPPORT - Call your local BRP dealership |
| 21 |
278000540 |
Fan Switch |
| 22 |
Not |
Available As Spare Part - Insert-Switch |
| 23 |
219704368 |
Seal Tray 1000Mm Long |
| 24 |
278000643 |
Bilge Pump |
| 25 |
219900783 |
Fuse Decal |
| 26 |
278000887 |
BUZZER ASSEMBY - Call your local BRP dealership |
| 28 |
208641660 |
Phillips Screw M4 X 16 This part replaces 211000011. |
| 30 |
278000864 |
Water Sensor |
| 31 |
216142060 |
SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership |
| 32 |
292000365 |
Water Sensor Support |
| 33 |
204000133 |
BROACH - Call your local BRP dealership |
| 34 |
278000478 |
Oil Level Sensor |
| 35 |
278000647 |
Switch Nut |
| 36 |
278000707 |
Buzzer Nut |
| 37 |
278000676 |
POLE-REAR LAMP - Call your local BRP dealership |
| 38 |
232561600 |
Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 39 |
204471177 |
Rear Lamp Base Ass'y |
| 40 |
293150285 |
Pop RIvet 1/8 X ,375 This part replaces 293150006. |
| 41 |
XXX |
Not Available As Spare Parts |
| 42 |
XXX |
Not Available As Spare Parts |
| 43 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 44 |
292000236 |
Bilge Pump Support |
| 45 |
278001195 |
NEUTRAL SWITCH ASS'Y - Call your local BRP dealership This part replaces 278000888. |
| 46 |
278000231 |
Insulation Sheath |
| 47 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 48 |
278000219 |
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership |
| 48 |
278000220 |
Male Connector, 2 Circuits |
| 48 |
278000221 |
MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership |
| 48 |
278000273 |
Male Housing, 3 Circuits |
| 48 |
278000395 |
Male Housing, 4 Circuits |
| 49 |
278000156 |
FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership |
| 49 |
278000161 |
Female Housing, 1 Circuit |
| 49 |
278000217 |
Female Housing, 2 Circuits |
| 49 |
278000281 |
Female Terminal Housing, 3 Circuits |
| 49 |
278000394 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 50 |
278000222 |
Male Terminal |
| 50 |
278000230 |
Male Terminal |
| 50 |
409004300 |
Male Terminal |
| 51 |
278000223 |
Female Terminal |
| 51 |
409007300 |
Female Terminal |
| 52 |
278000218 |
Wire Seal |
| 52 |
278001065 |
Wire Seal This part replaces 278000585. |
| 53 |
278000216 |
Wire Seal |
| 54 |
278000739 |
Male Connector, 4 Circuits |
| 55 |
278000738 |
Male Lock, 4 Circuits |
| 56 |
278000632 |
Female Terminal |
| 57 |
278000765 |
Bulb Front Lamp |
| 58 |
278000766 |
Bulb |
| 59 |
278000679 |
Battery Pole (Positive) |
| 59 |
278000680 |
Battery Pole (Negative) |
| 60 |
278000870 |
Male Housing(Canon) |
| 61 |
278000871 |
Female Terminal(Canon) |
| 62 |
278000872 |
Female terminal(Canon) |
| 64 |
278000863 |
Block-Fuse |
| 65 |
211000009 |
SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership |
| 66 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 67 |
XXX |
Not Available As Spare Parts |
| 68 |
XXX |
Not Available As Spare Parts |
| 69 |
293150017 |
Rivet |
| 70 |
XXX |
Not Available As Spare Parts |
