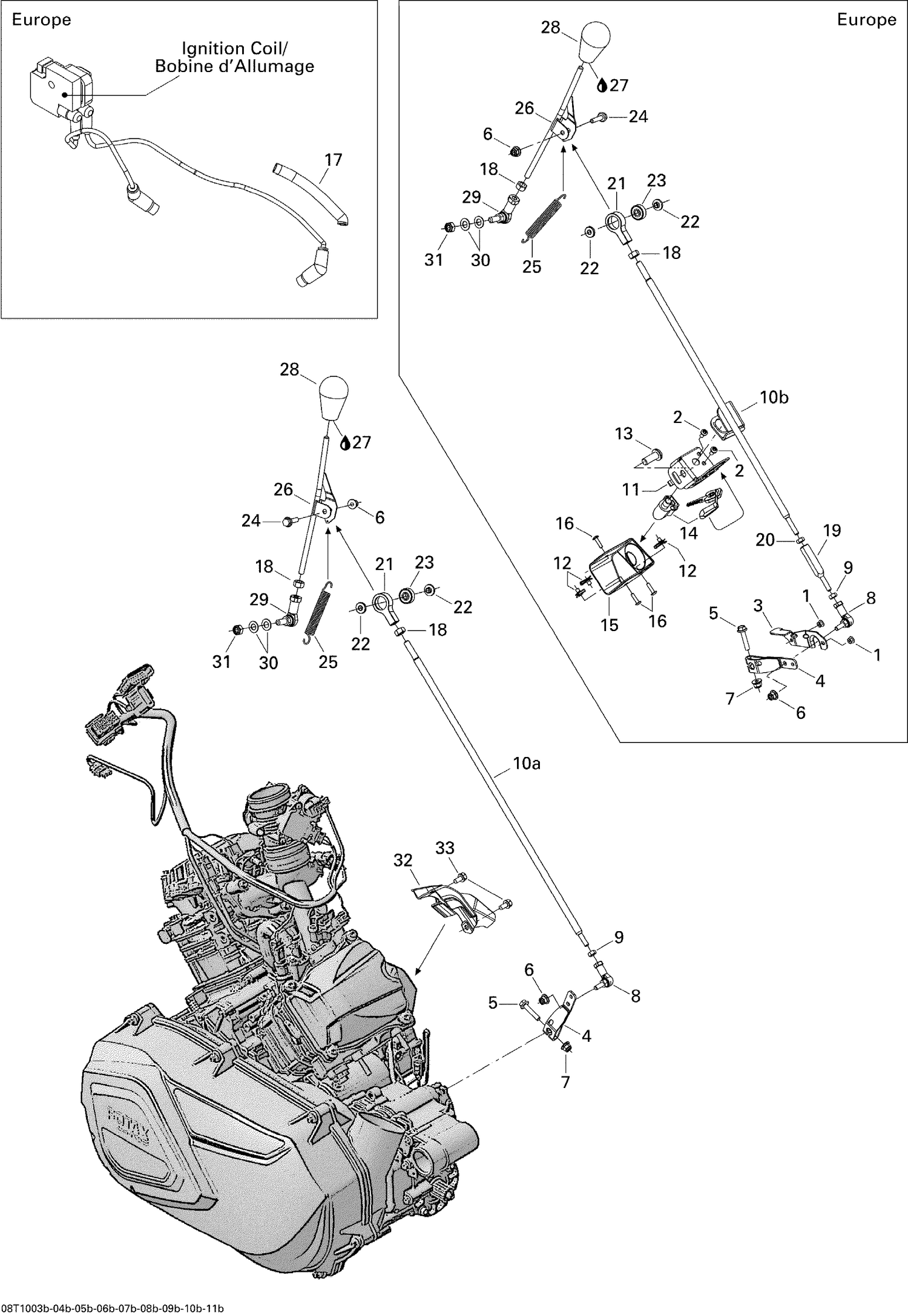

01- Engine 2
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 707000691 | Lever |
| 5 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 707000545 | LH BALL JOINT - Call your local BRP dealership |
| 9 | 232066414 | LH HEX. NUT M6 - Call your local BRP dealership |
| 18 | 232081414 | Hex. Nut M8 |
| 21 | 707000575 | PIVOT - Call your local BRP dealership |
| 22 | 707000576 | BUSHING - Call your local BRP dealership |
| 23 | 293350039 | BALL BEARING - Call your local BRP dealership |
| 24 | 207662544 | Hex. Flange Screw M6 X 25 |
| 25 | 707000577 | Spring |
| 26 | 707000783 | Lever Arm |
| 27 | 293800060 | Loctite 243, 10 ml |
| 28 | 705500022 | LEVER BUTTON - Call your local BRP dealership |
| 29 | 707001959 | RH Ball Joint This part replaces 707000546. |
| 30 | 506151252 | Washer |
| 31 | 232581414 | Hex. Elastic Stop Nut M8 |
| 32 | 707000410 | Cover OPS |
