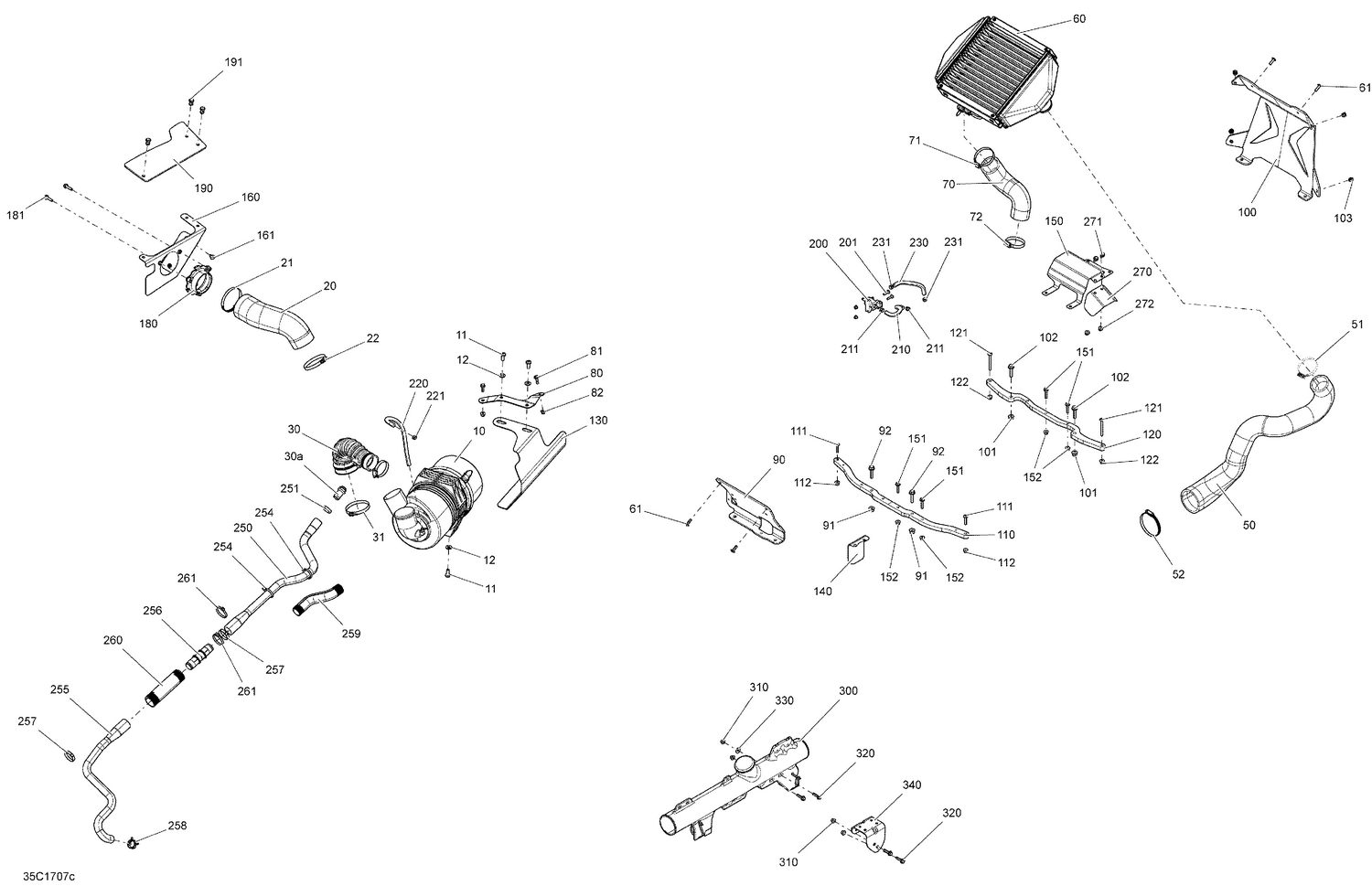

02- Air Intake - Turbo
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707800612 | Air Silencer Ass'y |
| 11 | 236282054 | Hex. Screw M8 X 20 |
| 12 | 234281474 | Conical Spring Washer M8 |
| 20 | 707800605 | AIR INTAKE - Call your local BRP dealership |
| 21 | 293650091 | Norma Clamp |
| 22 | 293650091 | Norma Clamp |
| 31 | 293650091 | Norma Clamp |
| 50 | 707800608 | AIR INTAKE - Call your local BRP dealership |
| 51 | 293650118 | Norma Gear Clamp |
| 52 | 293650091 | Norma Clamp |
| 60 | 707800721 | INTERCOOLER ASSY - Call your local BRP dealership This part replaces 707800613. |
| 61 | 250000722 | Torx Screw M6 X 20 |
| 70 | 707800607 | AIR INTAKE - Call your local BRP dealership |
| 71 | 293650118 | Norma Gear Clamp |
| 72 | 293650118 | Norma Gear Clamp |
| 80 | 707800653 | SUPPORT - Call your local BRP dealership |
| 81 | 207662044 | Hex. Flange Screw M6 X 20 |
| 82 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 90 | 707800675 | FRONT SUPPORT - Call your local BRP dealership |
| 91 | 233281414 | Hex. Flange Elastic Nut M8 |
| 92 | 207683544 | Hex. Flange Screw M8 X 35 |
| 100 | 707800622 | REAR SUPPORT - Call your local BRP dealership This part replaces 707800676. |
| 101 | 233281414 | Hex. Flange Elastic Nut M8 |
| 102 | 207683544 | Hex. Flange Screw M8 X 35 |
| 103 | 293450278 | Insert |
| 110 | 707800623 | FRONT SUPPORT - Call your local BRP dealership |
| 111 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 112 | 233261434 | Flange Elastic Nut M6 |
| 120 | 707800624 | REAR SUPPORT - Call your local BRP dealership |
| 121 | 250000648 | Torx Screw M6 X 60 |
| 122 | 233261434 | Flange Elastic Nut M6 |
| 130 | 707800625 | Deflector |
| 140 | 707800626 | DEFLECTOR - Call your local BRP dealership |
| 150 | 707800628 | DEFLECTOR - Call your local BRP dealership |
| 151 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 152 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 160 | 707800631 | SUPPORT - Call your local BRP dealership |
| 161 | 250000721 | Torx Truss Screw M6 X 16 |
| 180 | 707001171 | CVT Filter Base |
| 181 | 207562544 | Hex. Flange Screw M6 X 25 |
| 190 | 707800630 | COVER - Call your local BRP dealership |
| 191 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 200 | 707800632 | THREE-WAY ELECTRIC VALVE - Call your local BRP dealership |
| 201 | 250000792 | Torx Screw M5 X 20 |
| 210 | 219704437 | FUEL LINE 1000MM LONG - Call your local BRP dealership |
| 211 | 293650044 | Oetiker Clamp |
| 220 | 219704437 | FUEL LINE 1000MM LONG - Call your local BRP dealership |
| 221 | 293650044 | Oetiker Clamp |
| 230 | 219704437 | FUEL LINE 1000MM LONG - Call your local BRP dealership |
| 231 | 293650044 | Oetiker Clamp |
| 250 | 707800645 | HOSE - Call your local BRP dealership |
| 251 | 293650099 | Crimp Clamp |
| 254 | 293750008 | Tie Wrap 368 mm |
| 255 | 707800646 | HOSE - Call your local BRP dealership |
| 256 | 509000914 | Fitting |
| 257 | 509000181 | Oetiker Gear Clamp |
| 258 | 293650213 | Norma Spring Clamp |
| 259 | 219704402 | Tubing 25 MM 1000MM Long |
| 260 | 219704428 | Tubing 35 MM 1000MM Long |
| 261 | 293750008 | Tie Wrap 368 mm |
| 270 | 707800643 | DEFLECTOR - Call your local BRP dealership |
| 271 | 207661244 | Hex. Flange Screw M6 X 12 |
| 272 | 233061414 | Hex. Flange Nut M6 |
| 300 | 707800515 | Intake Adaptor |
| 310 | 233061414 | Hex. Flange Nut M6 |
| 320 | 207562544 | Hex. Flange Screw M6 X 25 |
| 330 | 234062410 | Flat Washer 6 mm |
| 340 | 707800560 | Rear Support |
