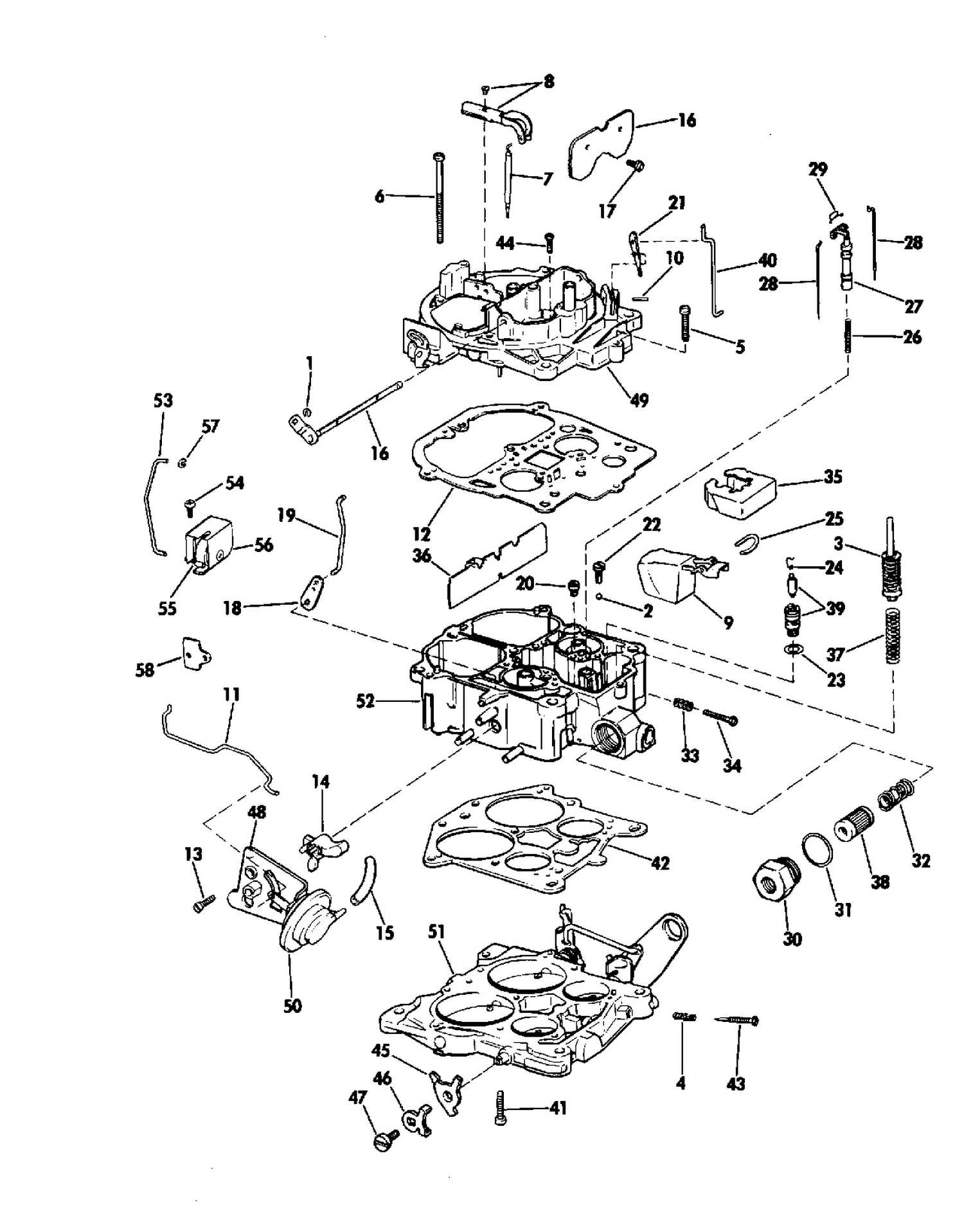

| Ref | Part Number | Description |
|---|
| 1 |
CLIP, |
Vacuum, choke, and pump rod |
| 2 |
BALL, |
Pump discharge |
| 3 |
PUMP |
ASSEMBLY |
| 4 |
0910181 |
SPRING, Idle needle |
| 5 |
0314521 |
SCREW, Air horn |
| 6 |
0314560 |
SCREW, Air horn |
| 7 |
0909691 |
METERING ROD, Secondary |
| 7 |
0910332 |
METERING ROD, Secondary This part replaces 0910182. |
| 8 |
0911652 |
HOLDER KIT, Secondary metering rod This part replaces 0314524. |
| 9 |
0983871 |
FLOAT & INSERT ASSY. This part replaces 0383087. |
| 10 |
ROLL |
PIN, Pump lever hinge |
| 11 |
0314527 |
ROD VACUUM BREAK |
| 12 |
GASKET, |
Air horn |
| 13 |
0314529 |
SCREW, Control attaching |
| 14 |
0316523 |
CAM, Fast idle This part replaces 0910141. |
| 15 |
0314531 |
HOSE, Vacuum |
| 16 |
0383391 |
CHOKE SHAFT & LEVER KIT |
| 16 |
0981742 |
CHOKE SHAFT & VALVE KIT |
| 17 |
0314533 |
SCREW, Choke valve |
| 18 |
0314534 |
LEVER, Intermediate choke |
| 19 |
0314535 |
ROD, Choke |
| 20 |
JET, |
Primary |
| 21 |
0908961 |
LEVER, Pump actuating |
| 22 |
0314538 |
RETAINER, Pump discharge ball |
| 23 |
GASKET, |
Needle seat |
| 24 |
PULL |
CLIP, Float needle |
| 25 |
0314541 |
HINGE PIN, Float assembly |
| 26 |
0314542 |
SPRING, Power piston |
| 26 |
0983868 |
POWER PISTON ASSY This part replaces 0910140. |
| 27 |
0983868 |
POWER PISTON ASSY This part replaces 0980912. |
| 28 |
METERING |
ROD, Primary |
| 29 |
0983868 |
POWER PISTON ASSY This part replaces 0908965. |
| 31 |
GASKET, |
Filter nut |
| 32 |
0314548 |
SPRING, Fuel filter |
| 33 |
0314549 |
INSERT, Float bowl |
| 34 |
0314550 |
SCREW, Idle sotp |
| 35 |
0314551 |
INSERT, Float bowl |
| 36 |
0314552 |
BAFFLE, Float bowl |
| 36 |
0315436 |
BAFFLE, Float bowl |
| 37 |
SPRING, |
Pump return |
| 38 |
0983870 |
FILTER, Fuel inlet This part replaces 0910139. |
| 40 |
0314556 |
PUMP ROD |
| 41 |
0316307 |
SCREW, Air horn, short |
| 42 |
GASKET, |
Throttle body |
| 43 |
IDLE |
NEEDLE SET |
| 44 |
0314522 |
SCREW, Air horn |
| 45 |
0314561 |
CAM LEVER |
| 46 |
0314562 |
LEVER, Fast idle |
| 47 |
0314563 |
SCREW IDLE LEVER |
| 48 |
0981753 |
BRACKET ASSEMBLY VACUUM BREAK CONTROL |
| 48 |
0981788 |
BACKET ASSEMBLY VACUUM BREAK CONTROL |
| 49 |
0981741 |
AIR HORN ASSEMBLY |
| 49 |
AIR |
HORN ASSEMBLY |
| 50 |
0383916 |
VACUUM BREAK CONTROL ASSEMBLY |
| 51 |
0981752 |
THROTTLE BODY ASSY |
| 51 |
0981806 |
THROTTLE BODY ASSY |
| 51 |
THROTTLE |
BODY ASSY |
| 52 |
0383086 |
FLOAT BOWL ASSEMBLY |
| 52 |
FLOAT |
BOWL ASSY |
| 53 |
0908239 |
ROD, Choke |
| 53 |
3998966 |
CHOKE, Rod |
| 54 |
0273156 |
SCREW, Choke |
| 54 |
0314576 |
SCREW |
| 55 |
0326079 |
THERM ASSY, Choke |
| 55 |
6272736 |
THERMOSTAT ASSEMBLY, Choke |
| 56 |
3998944 |
COVER, Bi-metal choke |
| 57 |
3989067 |
CLIP, Bi-metal choke |
| 0314564 |
0314564 |
AIR VALVE SPRING & CAM KIT |
| 0982221 |
0982221 |
CARBURETOR ASSY |
| 0982223 |
0982223 |
CARBURETOR ASSY |
| 0982227 |
0982227 |
CARBURETOR ASSY |
