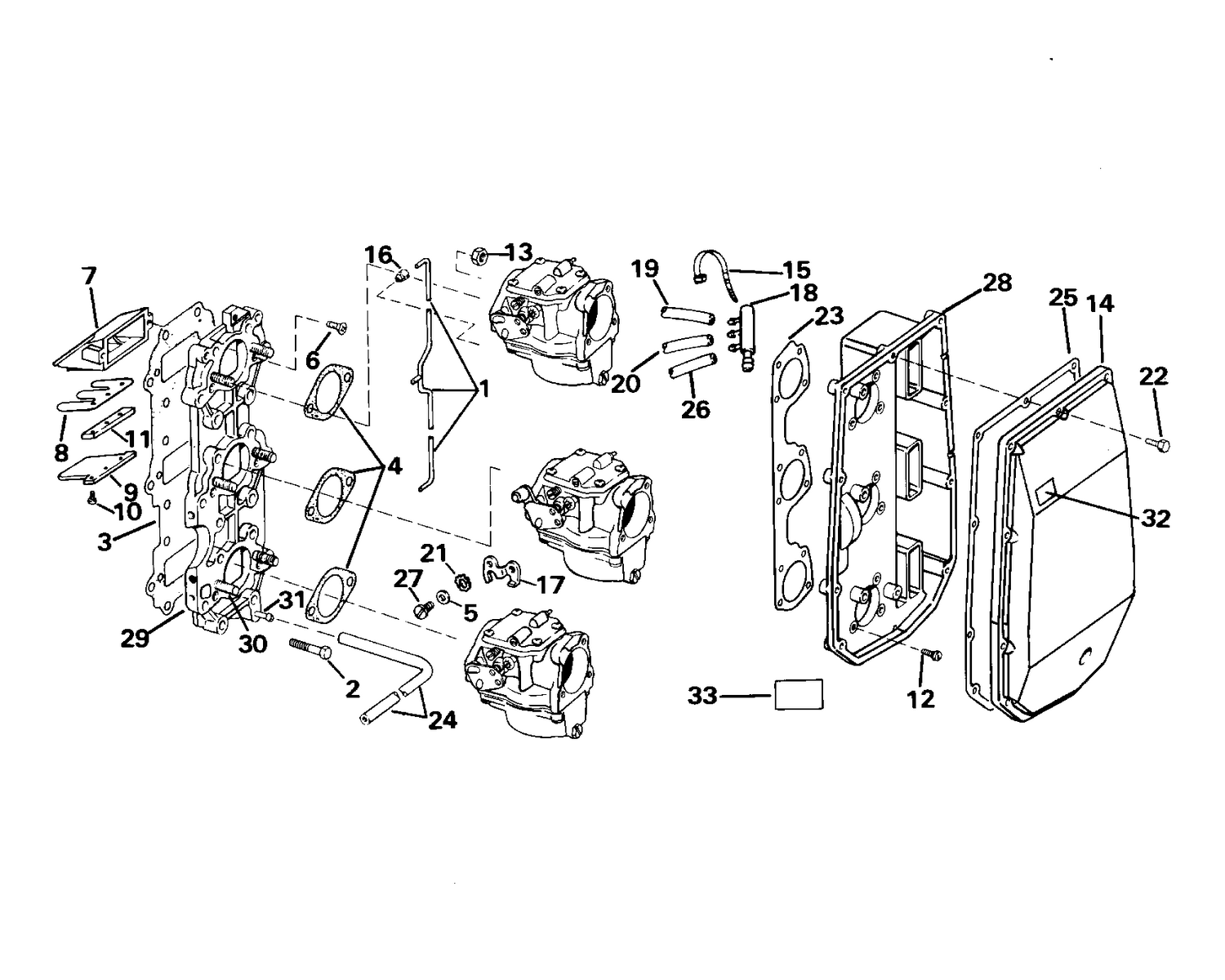

| Ref | Part Number | Description |
|---|
| 1 |
0432271 |
LINK & PIN, Middle arm |
| 2 |
0554306 |
SCREW, Cyl. to crankcase |
| 3 |
0326926 |
GASKET, Plat to manifold |
| 4 |
0325092 |
GASKET |
| 6 |
0316116 |
SCREW |
| 7 |
0389731 |
LEAF PLATE ASSEMBLY |
| 13 |
0316355 |
BUT, Carburetor mounting |
| 14 |
0388264 |
COVER, Air silencer |
| 15 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 16 |
0318165 |
DISPOSITIF DE RETENUE, tringlerie de carburateur |
| 17 |
0329418 |
LEVER, Synchronization adj. |
| 18 |
5004610 |
FITTING, Fuel manifold This part replaces 0395540. |
| 19 |
0336236 |
HOSE, Fuel pump to carburetor |
| 20 |
HOSE, |
Manifold to carb., middle, 2½ in. (65mm) |
| 23 |
0333008 |
GASKET, Air silencer |
| 24 |
HOSE, |
Air silencer to manifold, 4 7/8 in. (121mm) |
| 25 |
0321794 |
GASKET, Air silencer cover |
| 26 |
0336236 |
HOSE, Fuel pump to carburetor |
| 27 |
0306014 |
VIS, ancrage |
| 28 |
0333009 |
BASE ASSEMBLY |
| 29 |
0434126 |
MANIFOLD, Intake |
| 32 |
0340211 |
DECAL, Spark advance |
