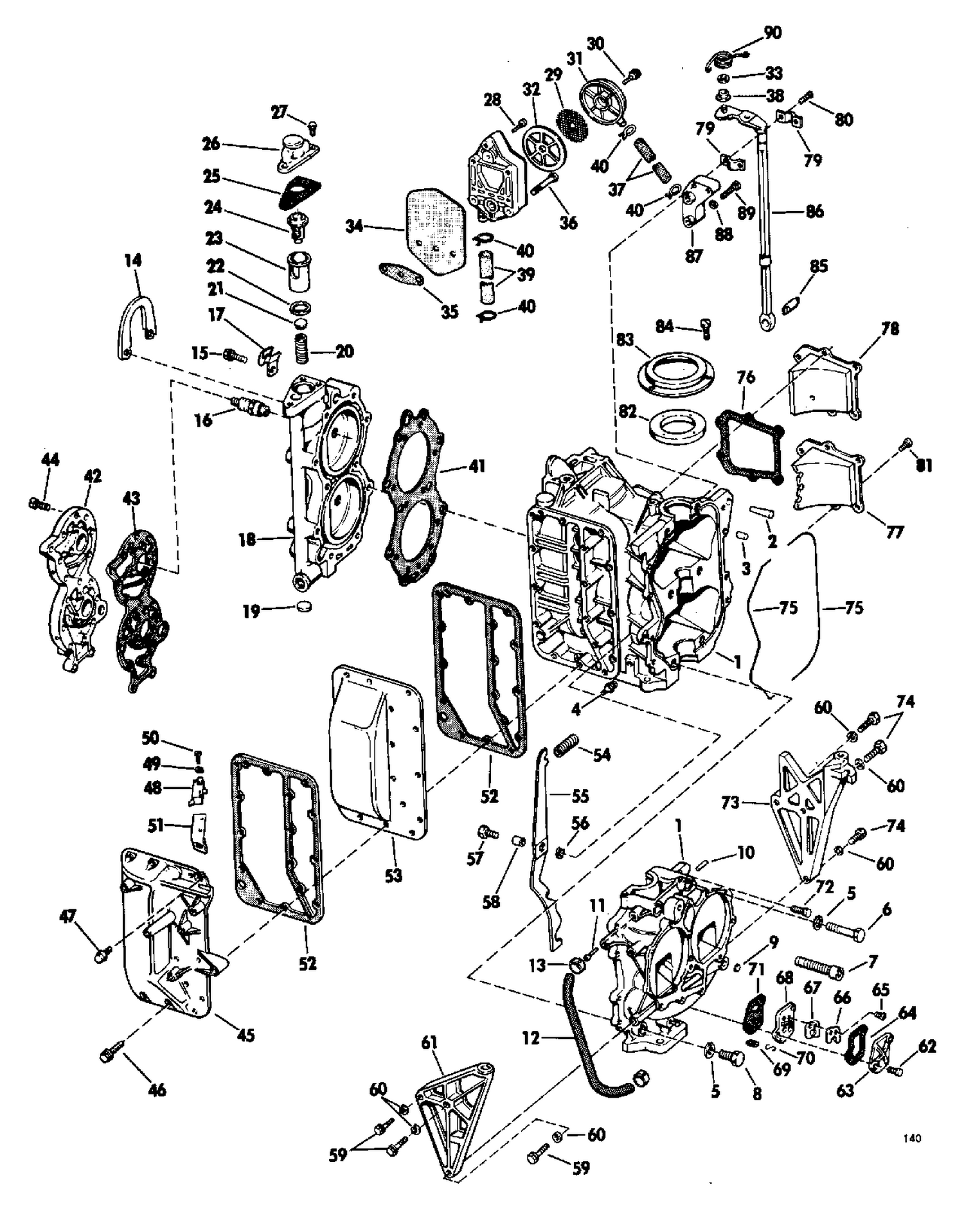

| Ref | Part Number | Description |
|---|
| 1 |
0380253 |
CYL. & CRANKCASE ASSY |
| 6 |
0301431 |
SCREW |
| 7 |
0302579 |
SCREW, Allen |
| 9 |
0300788 |
PLUG EXPANSION |
| 10 |
0307587 |
PLUG, Crankcase |
| 12 |
0308506 |
HOSE, Oil line |
| 13 |
0303473 |
CLAMP, Hose |
| 14 |
0312050 |
BRACKET, Lift |
| 15 |
0305027 |
SCREW |
| 16 |
0378101 |
SPARK PLUB, Champion j4j |
| 16 |
0378320 |
SPARK PLUG, AC - M42K |
| 16 |
0378368 |
SPARK PLUG, Auto - Lite A21X |
| 17 |
0310466 |
CLAMP, High tension leads |
| 18 |
0382816 |
CYLENDER HEAD ASSY |
| 20 |
0305199 |
SPRING, Control valve |
| 21 |
0305197 |
VALVE, Pressure control |
| 22 |
0305198 |
GASKET, Thermostat |
| 23 |
0305266 |
HOUSING, Thermostat |
| 24 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 25 |
0305196 |
GAKSET, Thermostat cover |
| 26 |
0305085 |
COVER, Thermostat |
| 28 |
0310302 |
SCREW PUMP ASSY |
| 32 |
0338879 |
GASKET, Cap to pump, upper This part replaces 0312679. |
| 33 |
0305831 |
SHIM |
| 34 |
0303680 |
DEFLECTOR |
| 35 |
0303615 |
GASKET |
| 36 |
0314317 |
SCREW |
| 37 |
0303617 |
HOSE This part replaces 0552646. |
| 38 |
0307841 |
BUSHING, Control lever |
| 39 |
0303617 |
HOSE This part replaces 0307403. |
| 41 |
0307069 |
GASKET, Cylinder head |
| 42 |
0307759 |
COVER, Cylinder head |
| 43 |
0307762 |
GASKET, Cover |
| 44 |
0306408 |
SCREW |
| 45 |
0312654 |
EXHAUSE COVER, Outer |
| 46 |
0306418 |
VIS, ancrage |
| 47 |
0307608 |
SCREW |
| 48 |
0386056 |
INTERRUPTEUR DE DÉMARRAGE AU POINT MORT This part replaces 0379542. |
| 49 |
0310498 |
WASHER |
| 50 |
0307922 |
SCREW |
| 51 |
0307881 |
BRACKER, Safety switch |
| 52 |
0304762 |
GAKSET, Exhaust cover |
| 53 |
0304761 |
COVER, Exhaust, inner |
| 54 |
0302587 |
SPRING, Shifter lock |
| 55 |
0311488 |
LOCK, Shifter |
| 57 |
0311487 |
SCREW |
| 58 |
0311490 |
BUSHING |
| 59 |
0308077 |
SCREW |
| 61 |
0305078 |
BRACKET, Starboard |
| 62 |
0305346 |
SCREW |
| 63 |
0302033 |
COVER |
| 65 |
0303761 |
SCREW |
| 66 |
0304655 |
PLATE |
| 67 |
0302031 |
LEAF PLATE |
| 68 |
0379093 |
DRAIN PLATE & SCREEN ASSEMBLY |
| 69 |
0310628 |
SCREEEN |
| 70 |
0310629 |
SPRING |
| 71 |
0309427 |
GAKSET, Drain valve |
| 72 |
0300646 |
VIS, ancrage |
| 73 |
0305077 |
BRACKET, Port |
| 74 |
0307471 |
SCREW |
| 75 |
SEAL, |
Cylinder to crankcase |
| 76 |
0304784 |
GASKET, By-oass cover |
| 77 |
0314242 |
COVER, By-pass lower |
| 78 |
0313871 |
BY-PASS COVER, Upper |
| 79 |
0305609 |
BEARING CLAMP |
| 80 |
0302948 |
SCREW |
| 81 |
0306487 |
SCREW |
| 82 |
0303277 |
RETAINING RING |
| 83 |
0303278 |
SUPORT, Armature plate |
| 84 |
0332070 |
SCREW, Retaining plate This part replaces 0304442. |
| 85 |
0329197 |
PIN, Control lever This part replaces 0304155. |
| 86 |
0378308 |
CONTROL LEVER |
| 87 |
0304941 |
BRACKET |
| 88 |
0302376 |
LOCKWASHER |
| 89 |
0306049 |
SCREW |
| 90 |
0316368 |
SPRING This part replaces 0307354. |
| 0306482 |
0329241 |
RONDELLE This part replaces 0306482. |
| 0382354 |
0438556 |
FUEL PUMP ASSY. This part replaces 0382354. |
