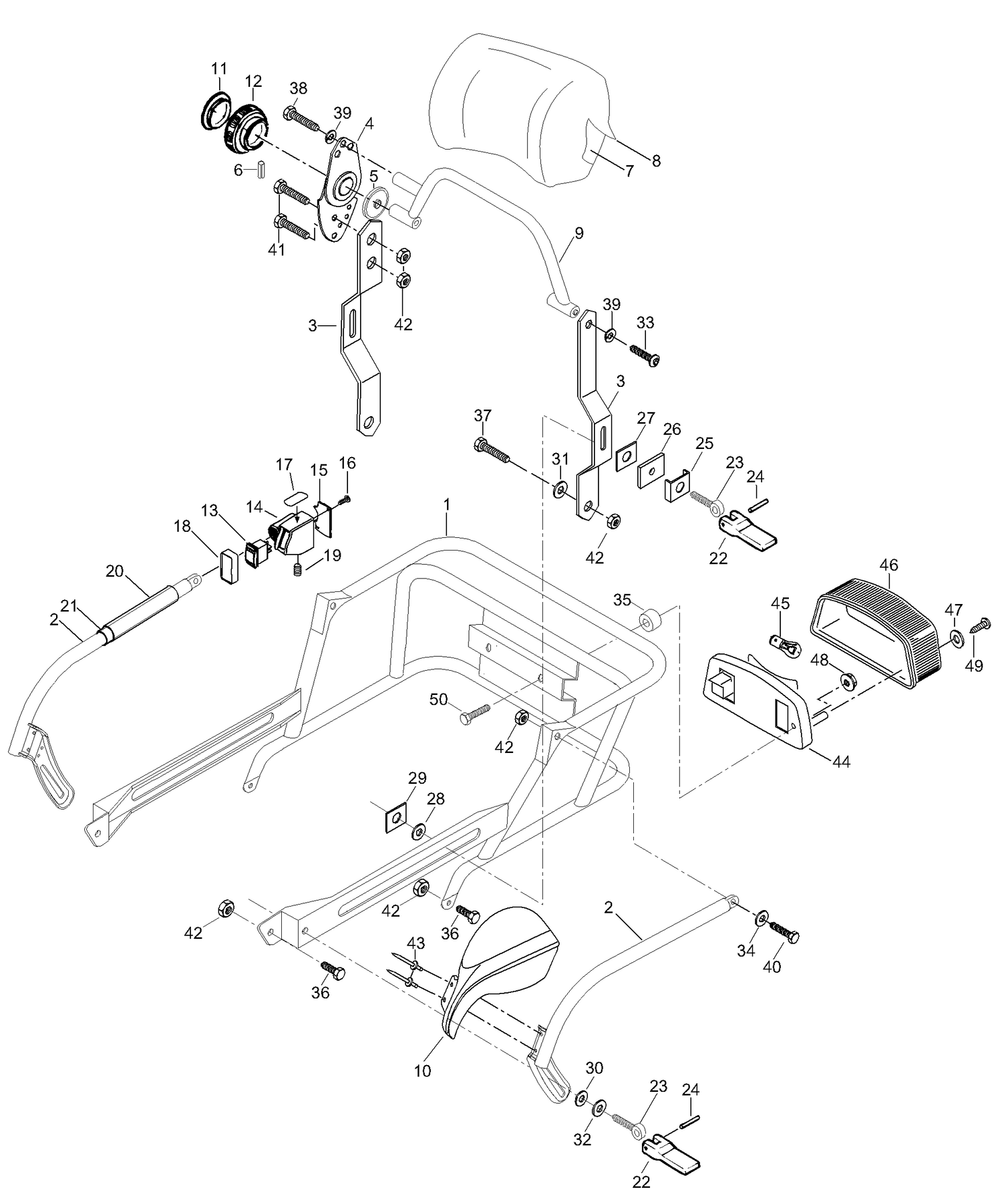

09- Backrest
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5146808 | Rack assy |
| 2 | 5342838 | R.H. Arm |
| 2 | 5342839 | L.H. Arm |
| 3 | 5342974 | R.H. Arm |
| 3 | 5342975 | L.H. Arm |
| 4 | 414813300 | Recliner |
| 5 | 5342954 | Sleeve |
| 6 | 41007 | Spring Pin 5 x 24 DIN 1481(1=10pcs) - Call your local BRP dealership |
| 7 | 5343163 | Backrest foam |
| 8 | 5347838 | Backrest cover |
| 9 | 5342906 | Backrest |
| 10 | 572089400 | RH Passengers hand grip shelter |
| 10 | 572089500 | LH Passengers hand grip shelter |
| 11 | 414821000 | Cap |
| 12 | 414820900 | TILLER HANDLE - Call your local BRP dealership |
| 13 | 511000001 | Switch |
| 14 | 572089200 | Heater switch housing |
| 15 | 572089300 | Plate |
| 16 | 414473200 | Screw |
| 17 | 418001800 | HEAT GRIP DECAL - Call your local BRP dealership |
| 18 | 511000002 | Protector |
| 19 | 414440800 | Socket Set Screw M8 X 10 |
| 20 | 415050300 | Grip |
| 21 | 515175573 | Heater This part replaces 515175387. |
| 22 | 5243419 | Lock lever |
| 23 | 517250100 | EYE BOLT - Call your local BRP dealership |
| 24 | 414821400 | Pin |
| 25 | 517257300 | Guide |
| 26 | 570027400 | Rubber plate |
| 27 | 517251300 | SPACER - Call your local BRP dealership |
| 28 | 414819500 | Sleeve bearing |
| 29 | 5443899 | Thread Plate |
| 30 | 20085 | Washer, nylon |
| 31 | 20082 | Washer |
| 32 | 20084 | Washer |
| 33 | 205982086 | SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership This part replaces 40351. |
| 34 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 35 | 549103 | Sleeve |
| 36 | 40336 | HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 37 | 40855 | Screw M8x25 |
| 38 | 40036 | Allenscrew M8x20 |
| 39 | 20072 | Lock washer |
| 40 | 40006 | Screw M8x35 |
| 41 | 40037 | Screw M8x25 |
| 42 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 43 | 36037 | Rivet |
| 44 | 414979400 | Taillamp housing |
| 45 | 520000758 | Bulb This part replaces 410504000. |
| 46 | 414513700 | Lens |
| 47 | 414516400 | Washer - Call your local BRP dealership |
| 48 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 49 | 209632540 | Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
