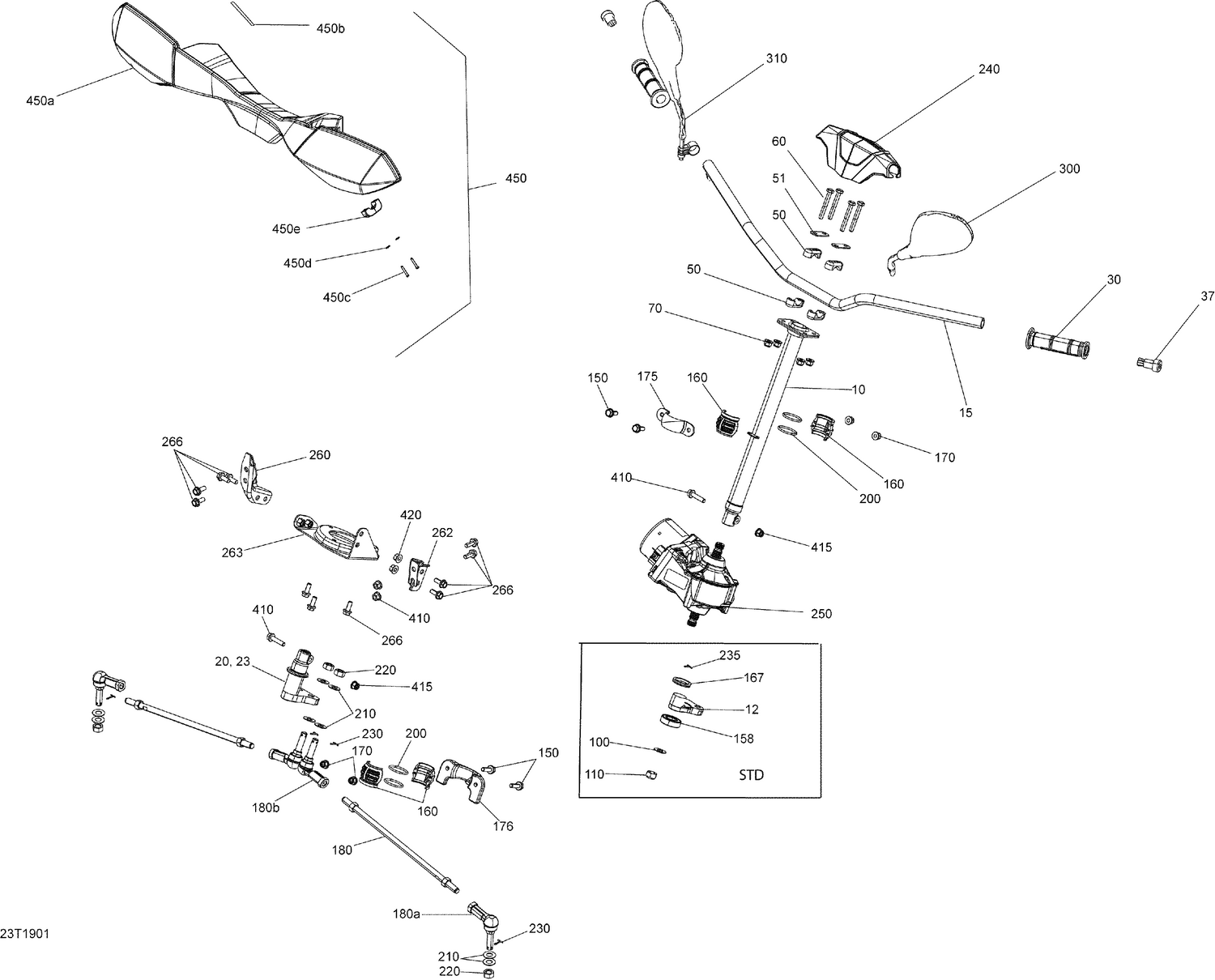

07- Steering
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 703501108 | Main Tube Kit This part replaces 709401750. |
| 15 | 709401240 | Black, Handlebar |
| 20 | 703501160 | Pitman Arm This part replaces 709401748. |
| 23 | XXX | Not Available As Spare Parts |
| 37 | 709400449 | End Piece |
| 50 | 709401799 | Steering Support |
| 51 | 709400509 | Stiffner |
| 60 | 207086046 | Hex. Screw M8 X 60 |
| 70 | 233281416 | Hex. Elastic Flange Nut M8 |
| 150 | 207682044 | Hex. Flange Screw M8 X 20 |
| 160 | 709400783 | Spherical Half Bushing |
| 170 | 233281414 | Hex. Flange Elastic Nut M8 |
| 175 | 709400827 | Upper Column Attachment |
| 176 | 709401428 | Column Attachment |
| 180a | 709402303 | LH Ball Joint This part replaces 709401837. |
| 180b | 709402302 | RH Ball Joint This part replaces 709401839. |
| 200 | 293300068 | O-Ring |
| 210 | 706200281 | Hardened Washer This part replaces 250200086. |
| 220 | 250100099 | Nut M12 |
| 230 | 211400013 | Cotter Pin |
| 250 | 709403187 | Power Steering Ass'y This part replaces 709402230. |
| 262 | 709402185 | RH Bracket |
| 263 | 709401743 | Power Steering Support |
| 266 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 410 | 250000986 | Hex. Flange Screw M8 X 35 |
| 415 | 233281416 | Hex. Elastic Flange Nut M8 |
| 420 | 233081416 | Hex. Flange Nut M8 |
