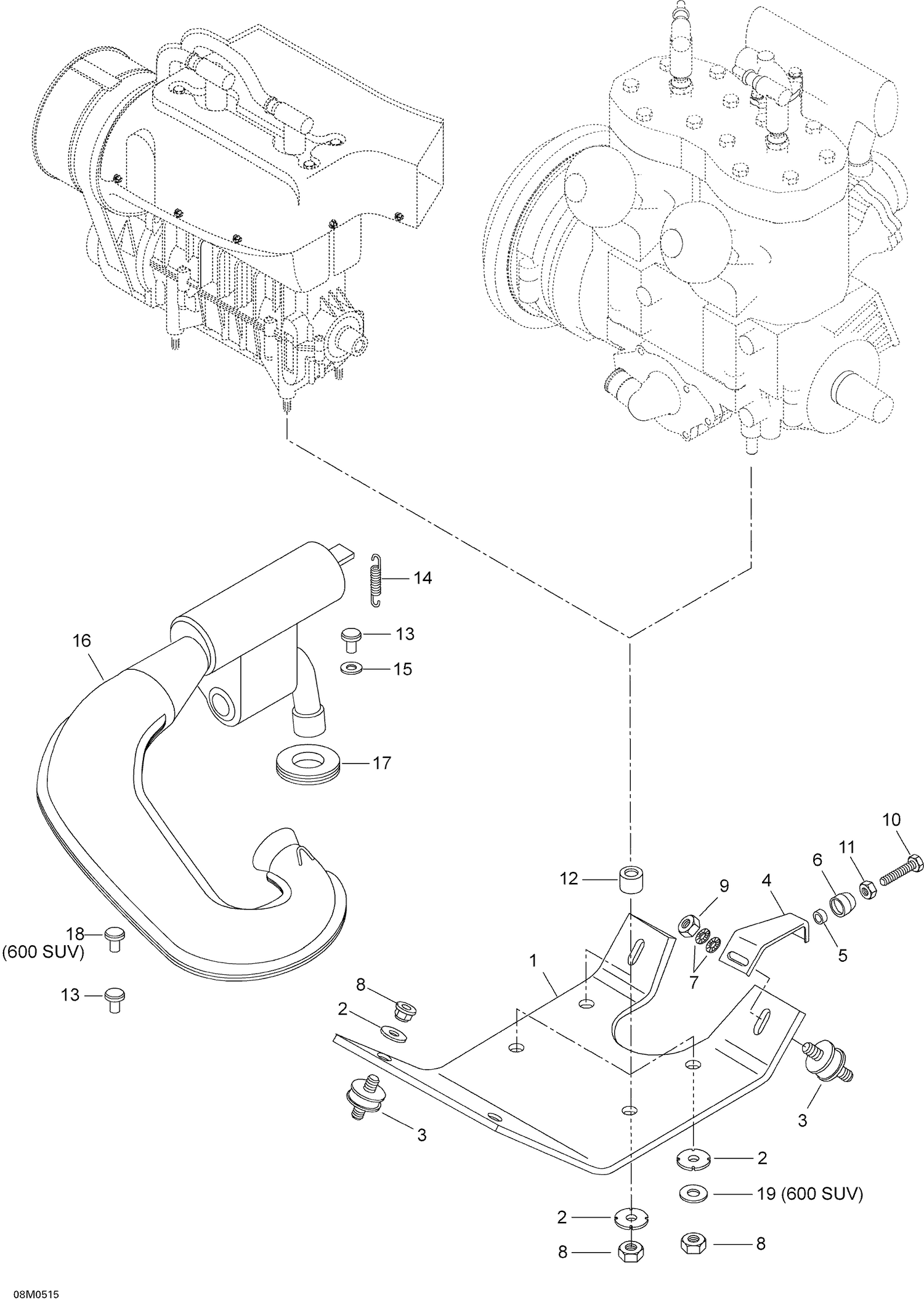

| Ref | Part Number | Description |
|---|
| 2 |
512056700 |
Lock Washer |
| 3 |
570128700 |
RUBBER MOUNT - Call your local BRP dealership |
| 4 |
M539902 |
Support |
| 5 |
M2846014 |
Rubber Washer |
| 7 |
20068 |
Lock Washer D10 This part replaces M20068. |
| 8 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 9 |
232006414 |
Hex. Nut M10 X 1.5 |
| 10 |
M40121 |
Hex. Screw M8 X 25 |
| 11 |
M33003 |
NUT - Call your local BRP dealership |
| 12 |
M5446347 |
SLEEVE - Call your local BRP dealership |
| 13 |
514053654 |
Rubber Bumper This part replaces 570048700. |
| 14 |
420938796 |
Spring This part replaces 420938795. |
| 15 |
M20087 |
Washer |
| 17 |
570039000 |
EXHAUST GROMMET - Call your local BRP dealership |
