Home / BRP / STERN DRIVE / 1992 / 5.70 / 574APLAMH 1992 / EXHAUST & COOLING

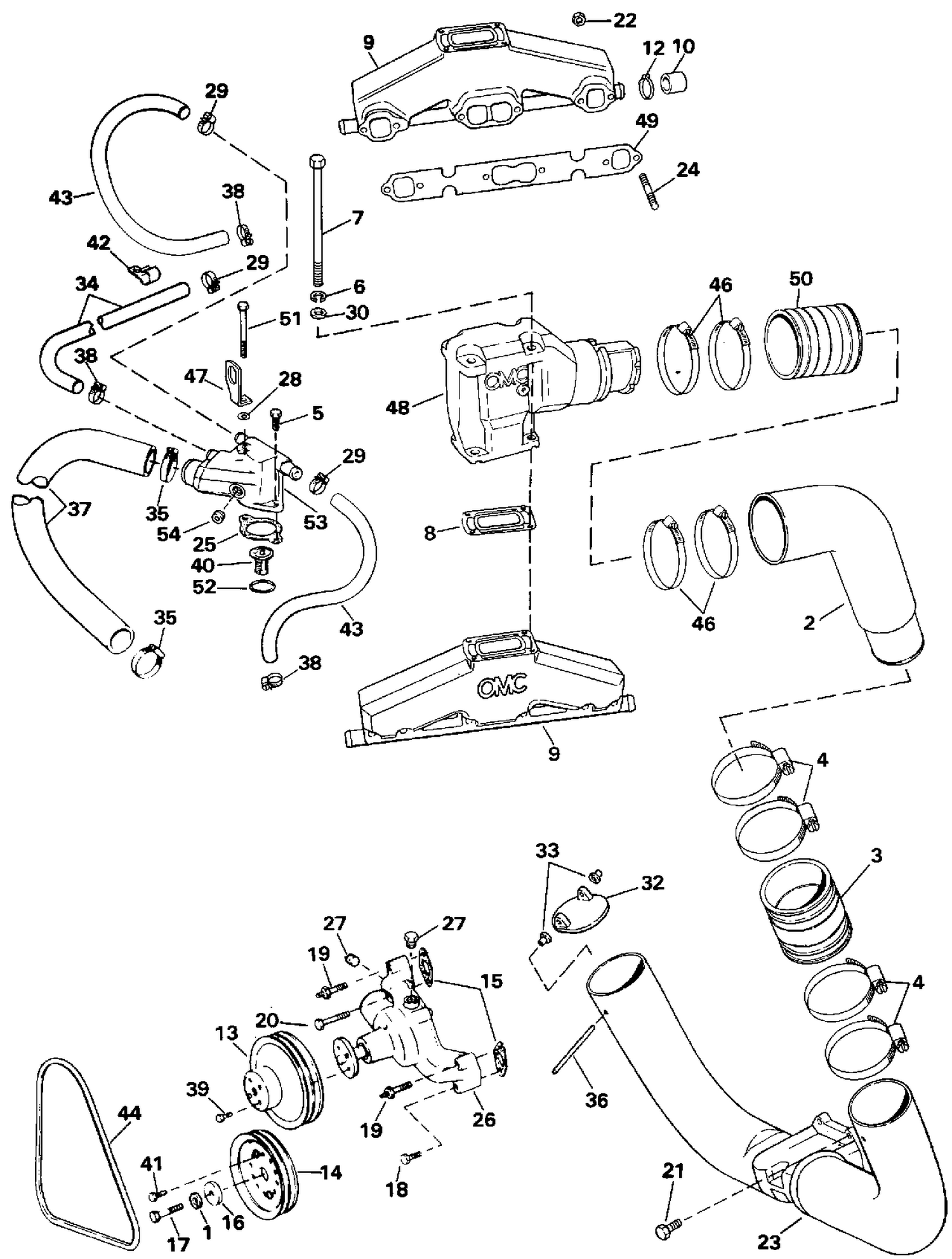

EXHAUST & COOLING

EXHAUST & COOLING

Parts (45)

RefPart NumberDescription
1 0303269 L'WASHER, Upper
2 0913583 EXHAUST PIPE, Upper
3 3852742 HOSE, Exhaust pipe This part replaces 0913592.
4 3852604 CLAMP, Exhaust This part replaces 0912667.
5 3853401 SCREW, Housing to manifold This part replaces 0915010.
6 0120177 L'WASHER, Alternator to brkt
7 3852830 HUB,Water pump pulley This part replaces 0913782.
8 0913783 GASKET, Elbow
9 3857723 EXHAUST MANIFOLD This part replaces 0914035.
10 3852476 CAP, Manifold This part replaces 0909829.
12 0912627 CLAMP
13 0384104 PULLEY ASSEMBLY
14 3852137 PULLEY, Crankshaft This part replaces 0315781.
15 3852477 GASKET, Pump to block This part replaces 0909835.
16 3852110 WASHER, Harmonic balancer This part replaces 0312787.
17 0314953 BOLT
18 0551094 BOLT, Manifold to head
19 3852507 STUD, Bracket to water pump This part replaces 0910440.
21 3855472 SCREW, Pipe to gimbal This part replaces 0913883.
22 3853404 NUT, Exhaust manifold This part replaces 0915013.
23 3858873 Kit This part replaces 0986117.
24 3852467 STUD, Manifold to engine This part replaces 0909313.
25 0312797 GASKET, Therm. hsg. to adapter
26 3853850 WATER PUMP ASSY. This part replaces 0985429.
27 0314834 PLUG
29 0979803 CLAMP
32 0985749 EXHAUST SEAL
33 3853566 BUSHING, Pin This part replaces 0915862.
34 0911946 HOSE, Cooler to thermostat
36 0913663 PIN EXHAUST FLAP
37 0914807 HOSE, Water pump to thermostat
38 0912627 CLAMP
39 3853390 SCREW, Pulley to pump This part replaces 0914996.
40 3853983 THERMOSTAT This part replaces 0986506.
41 3853418 SCREW, Crankshaft pulley This part replaces 0915041.
42 3853312 Clamp This part replaces 0914679.
43 3852746 HOSE, Thermostat hsg. to manifold This part replaces 0913614.
44 3852504 BELT, Alternator This part replaces 0910371.
46 3853860 CLAMP, Exhaust hose, upper This part replaces 0985661.
47 3852649 BRACKET, Center lift This part replaces 0912921.
48 3857944 ELBOW, Exhaust This part replaces 0913784.
49 3852468 GASKET, Manifold to engine This part replaces 0909314.
50 3852696 HOSE, High rise to elbow This part replaces 0913405.
51 3853430 SCREW, Manifold, 5 1/4 in. This part replaces 0914998.
53 3850360 HOUSING, Thermostat This part replaces 0986292.
