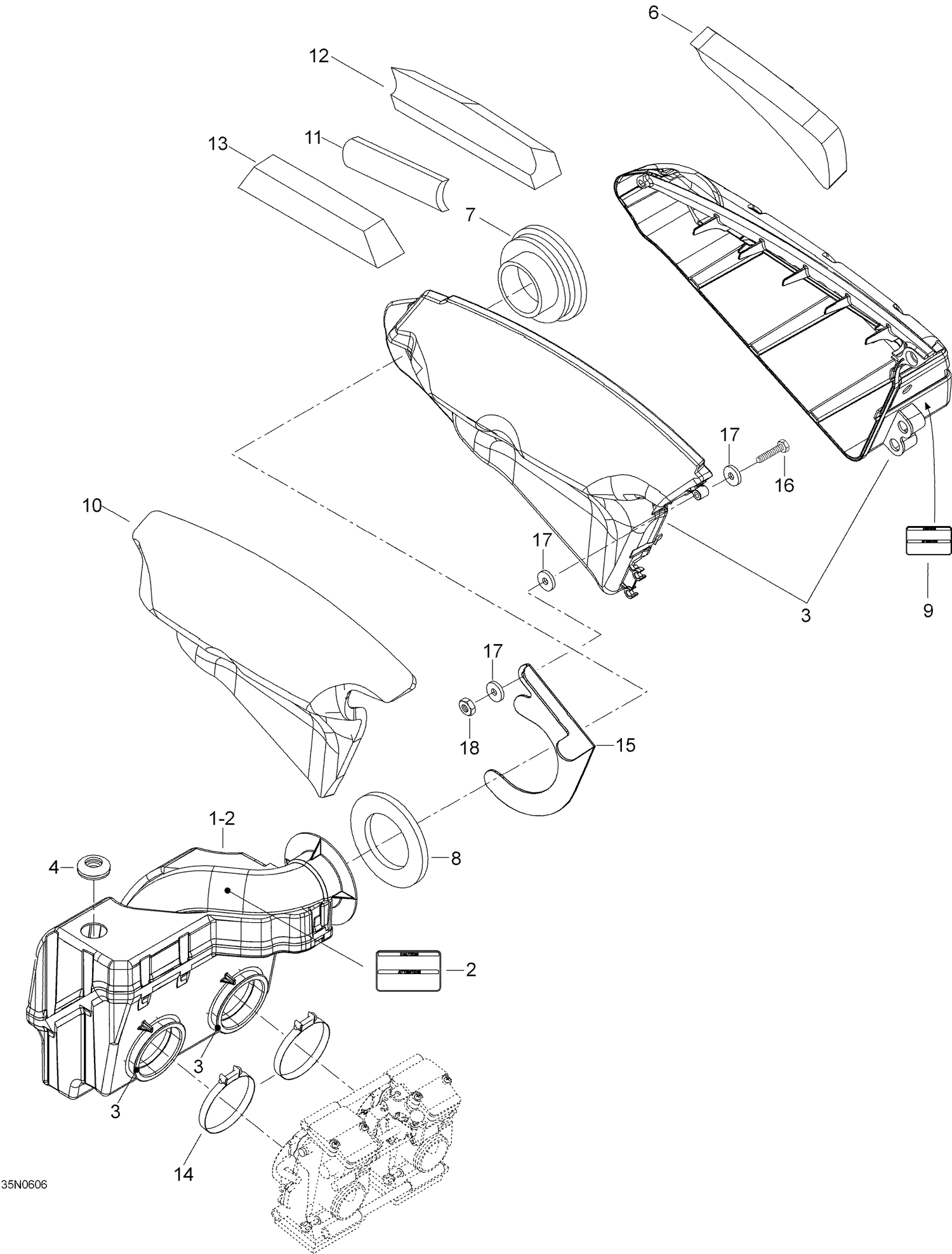

| Ref | Part Number | Description |
|---|
| 2 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 3 |
Not |
Available As Spare Part - Air intake adaptor |
| 4 |
570065500 |
GROMMET - Call your local BRP dealership |
| 6 |
508000145 |
Inner foam |
| 7 |
508000240 |
GUIDE - Call your local BRP dealership |
| 8 |
508000199 |
OUTER FOAM - Call your local BRP dealership |
| 9 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 10 |
508000310 |
OUTER FOAM - Call your local BRP dealership |
| 11 |
508000326 |
FOAM - Call your local BRP dealership |
| 12 |
508000394 |
Filter |
| 13 |
605354029 |
Filter |
| 14 |
508000369 |
Clamp |
| 15 |
605351817 |
Bracket |
| 16 |
40083 |
Hex. screw M6 x 30 |
| 17 |
20003 |
Washer A6,4 |
