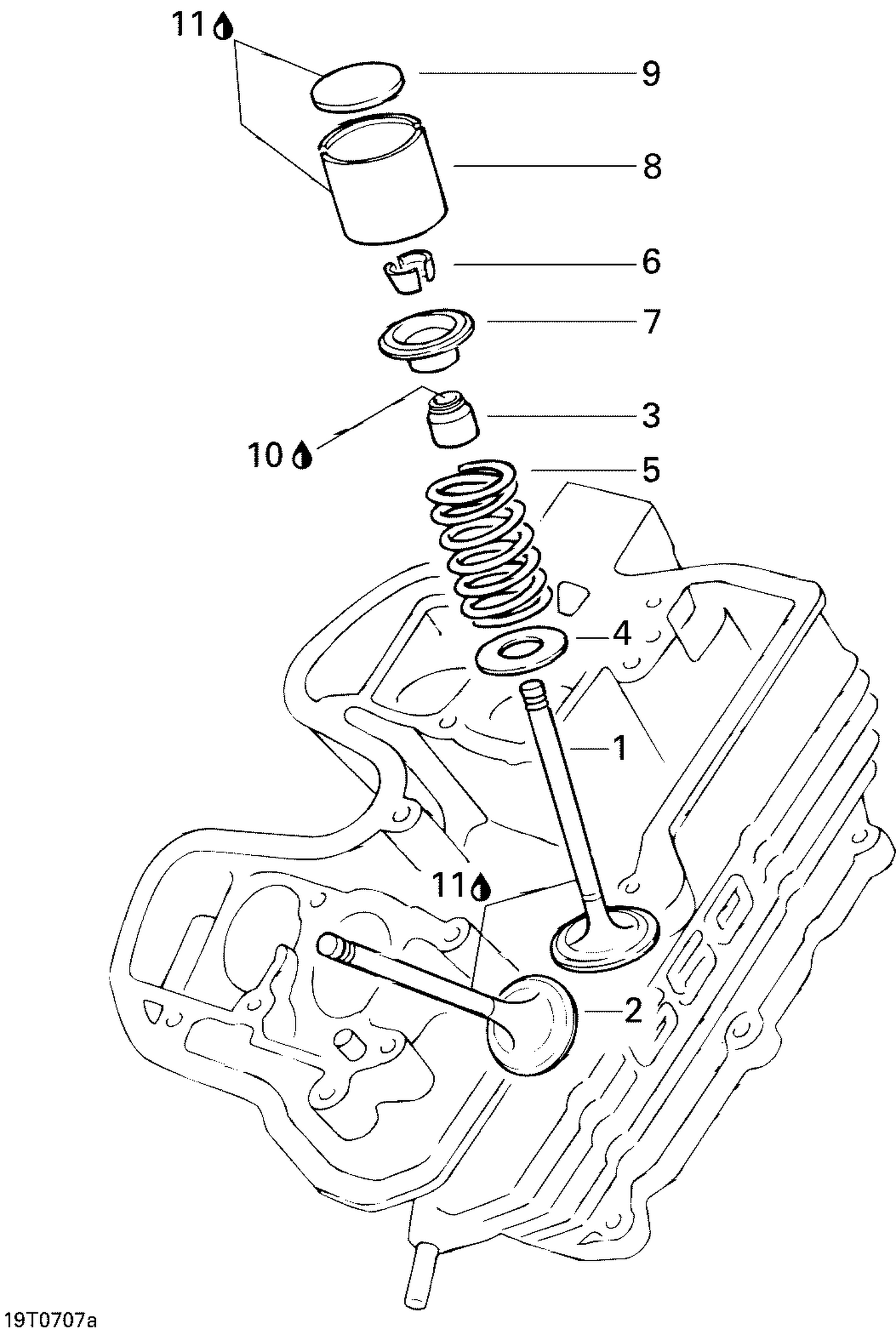

| Ref | Part Number | Description |
|---|
| 1 |
420253770 |
Inlet Valve |
| 2 |
420253780 |
EXHAUST VALVE - Call your local BRP dealership |
| 3 |
420230510 |
Seal |
| 4 |
420227982 |
THRUST WASHER - Call your local BRP dealership |
| 5 |
420239290 |
VALVE SPRING - Call your local BRP dealership |
| 6 |
420253645 |
Valve Cotter |
| 7 |
420253760 |
VALVE SPRING RETAINER - Call your local BRP dealership |
| 8 |
420253545 |
VALVE TAPPET - Call your local BRP dealership |
| 9 |
420253741 |
SHIM 2,1 - Call your local BRP dealership |
| 9 |
420253742 |
SHIM 2,2 - Call your local BRP dealership |
| 9 |
420253743 |
SHIM 2,3 - Call your local BRP dealership |
| 9 |
420253744 |
SHIM 2,4 - Call your local BRP dealership |
| 9 |
420253745 |
SHIM 2,5 - Call your local BRP dealership |
| 9 |
420253746 |
SHIM 2,6 - Call your local BRP dealership |
| 9 |
420253747 |
Shim 2,7" |
| 9 |
420253748 |
SHIM 2,8 - Call your local BRP dealership |
| 9 |
420253749 |
SHIM 2,9 - Call your local BRP dealership |
| 9 |
420253752 |
SHIM 2,15 - Call your local BRP dealership |
| 9 |
420253753 |
SHIM 2,25 - Call your local BRP dealership |
| 9 |
420253754 |
Shim 2,35" |
| 9 |
420253755 |
SHIM 2,45 - Call your local BRP dealership |
| 9 |
420253756 |
Shim 2,55" |
| 10 |
293550030 |
Grease, Super Lube |
