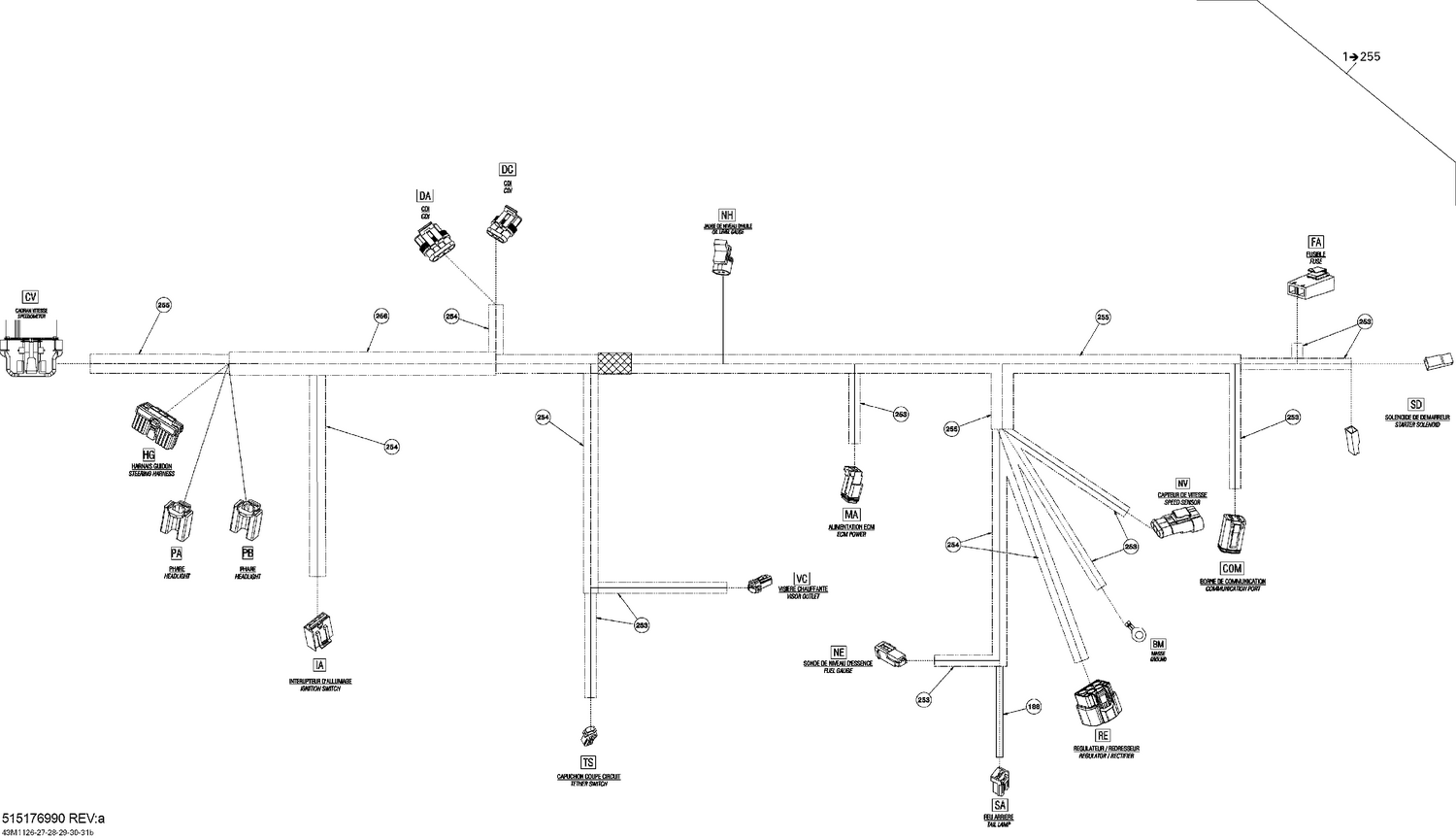

| Ref | Part Number | Description |
|---|
| BM |
278000992 |
Open Barrel |
| COM |
278000632 |
Female Terminal |
| COM |
293000052 |
Sealing Cap |
| COM |
515175673 |
Male Housing, 6 Circuits |
| COM |
515175678 |
Male Wedge, 6 Circuits |
| CV |
515175801 |
Female Housing, 24 Circuits |
| CV |
515175802 |
Retainer Block |
| CV |
515175803 |
Wire Seal |
| CV |
515175806 |
Female Terminal |
| CV |
515175812 |
Plug |
| CV |
710000399 |
Female Housing |
| CV |
710001131 |
Female Terminal |
| DA |
409209700 |
Female Housing, 4 Circuits |
| DA |
515176621 |
Wire Seal |
| DA |
710001340 |
Female Terminal |
| DC |
278001013 |
Wire Seal |
| DC |
278001014 |
Female Terminal |
| DC |
409209600 |
Female Housing, 3 Circuits |
| FA |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| FA |
409004000 |
Fuse Holder |
| FA |
409004200 |
Female Terminal |
| FA |
710000992 |
Clip |
| HG |
515175231 |
Female Terminal |
| HG |
515175282 |
Female Terminal |
| HG |
515175350 |
Female Terminal Housing, 13 Circuits |
| IA |
710000272 |
Female Terminal Housing, 4 Circuits |
| IA |
710000273 |
Lock, 4 Circuits |
| IA |
710000274 |
Female Terminal |
| MA |
278000632 |
Female Terminal |
| MA |
515175670 |
Female Terminal Housing, 2 Circuits |
| MA |
515175675 |
Female Lock, 2 Circuits |
| NE |
515175232 |
Male Terminal |
| NE |
515175654 |
Male Terminal Housing, 2 Circuits |
| NH |
278001113 |
Male Connector, 2 Circuits |
| NH |
710001119 |
Female Terminal |
| NV |
515176164 |
Male Terminal |
| NV |
515176621 |
Wire Seal |
| NV |
710000568 |
Housing |
| NV |
710000992 |
Clip |
| PA |
515176908 |
Female Housing |
| PA |
515176909 |
Terminal |
| PB |
515176908 |
Female Housing |
| PB |
515176909 |
Terminal |
| RE |
515176530 |
Connector |
| RE |
515176531 |
Terminal |
| RE |
515176594 |
Seal |
| SA |
515175231 |
Female Terminal |
| SA |
515175495 |
Female Housing, 3 Circuits |
| SD |
409010100 |
Female Terminal |
| SD |
409010400 |
Female Terminal Housing, 1 Circuit |
| TS |
515175231 |
Female Terminal |
| TS |
515176296 |
Female Terminal Housing, 2 Circuits |
| VC |
515175231 |
Female Terminal |
| VC |
515175658 |
Female Housing, 2 Circuits |
| 188 |
409902000 |
Tubing 12 mm |
| 253 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 254 |
219704399 |
Was 409901700 Tubing (9 mm) |
