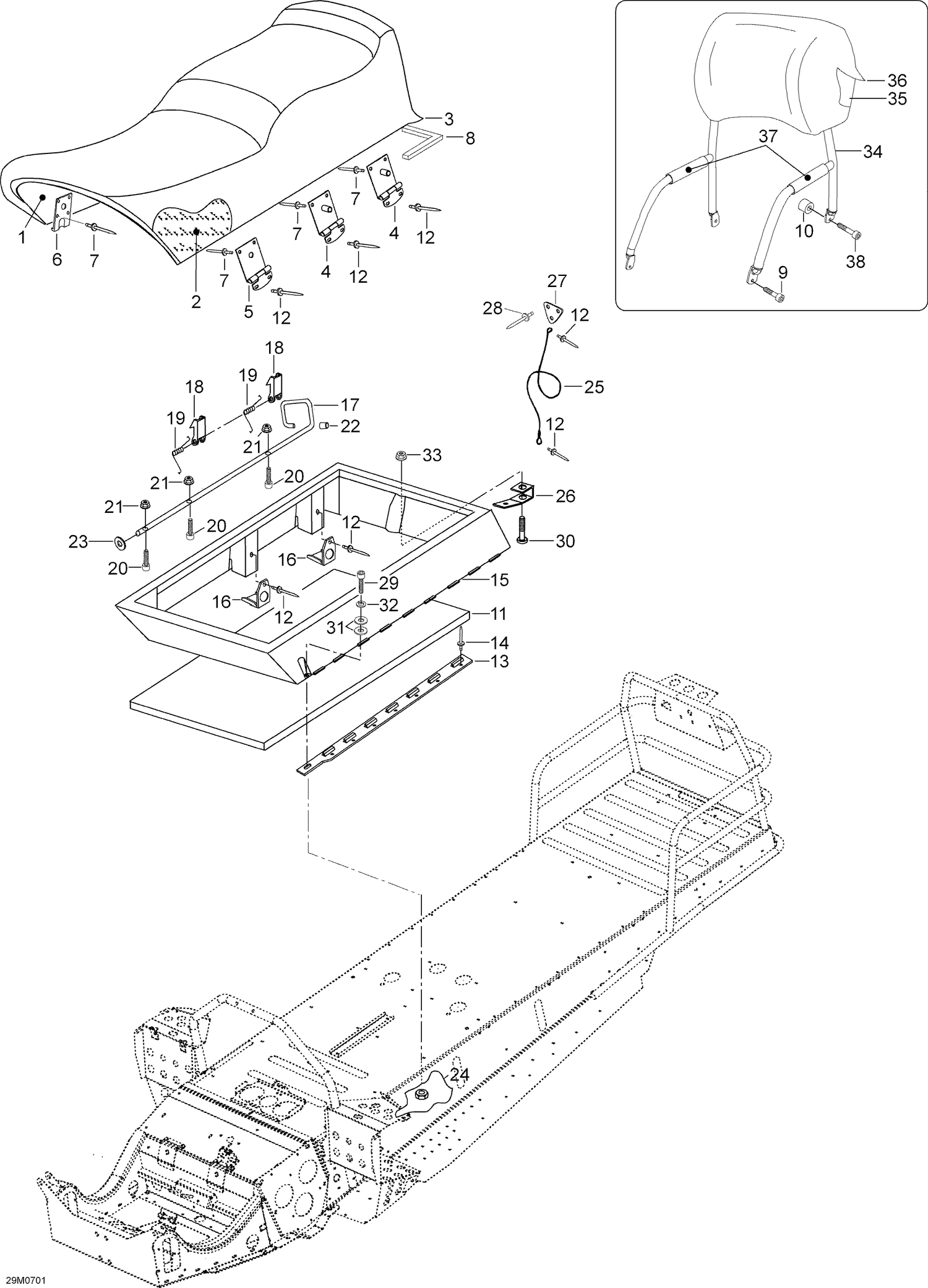

09- Seat 550F SUV
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | M519394 | Sub Seat |
| 2 | 605148623 | Foam Seat |
| 3 | 605153063 | COVER - Call your local BRP dealership |
| 4 | M549874 | HINGE - Call your local BRP dealership |
| 5 | M5440581 | HINGE - Call your local BRP dealership |
| 6 | M549732 | Lock Plate |
| 7 | M36071 | Rivet |
| 8 | M5440059 | SEALING STRIP PROFIL - Call your local BRP dealership |
| 9 | M40388 | SCREW-SOCKET - Call your local BRP dealership |
| 10 | M5440665 | Spacer |
| 12 | M36489 | Rivet |
| 13 | M5144028 | LH Support |
| 13 | M5144029 | RH Support |
| 14 | 36108 | Rivet This part replaces M36083. |
| 15 | M5142066 | Welded Seat Base Weld |
| 16 | M5443661 | Support |
| 17 | M5344987 | Pivot Pin |
| 18 | 605451589 | CAM LOCK - Call your local BRP dealership |
| 19 | M5444439 | SPRING - Call your local BRP dealership |
| 20 | M40144 | Screw M4 X 16 |
| 21 | 232541414 | Elastic Stop Nut M4 |
| 22 | M28019 | Cap |
| 23 | 234081410 | Flat Washer 8 mm |
| 24 | M33066 | NUT M6 - Call your local BRP dealership |
| 27 | 605452535 | SUPPORT - Call your local BRP dealership |
| 28 | M36038 | Rivet |
| 29 | 234161471 | Lock Washer M6, Black |
| 31 | 234062410 | Flat Washer 6 mm This part replaces M20009. |
| 32 | 234161471 | Lock Washer M6, Black |
| 33 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 34 | M5245664 | Backrest |
| 35 | Not | Available As Spare Part - Backrest Foam |
| 36 | Not | Available As Spare Part - Backrest Cover |
| 37 | 415050300 | RH Grip, 250 mm |
