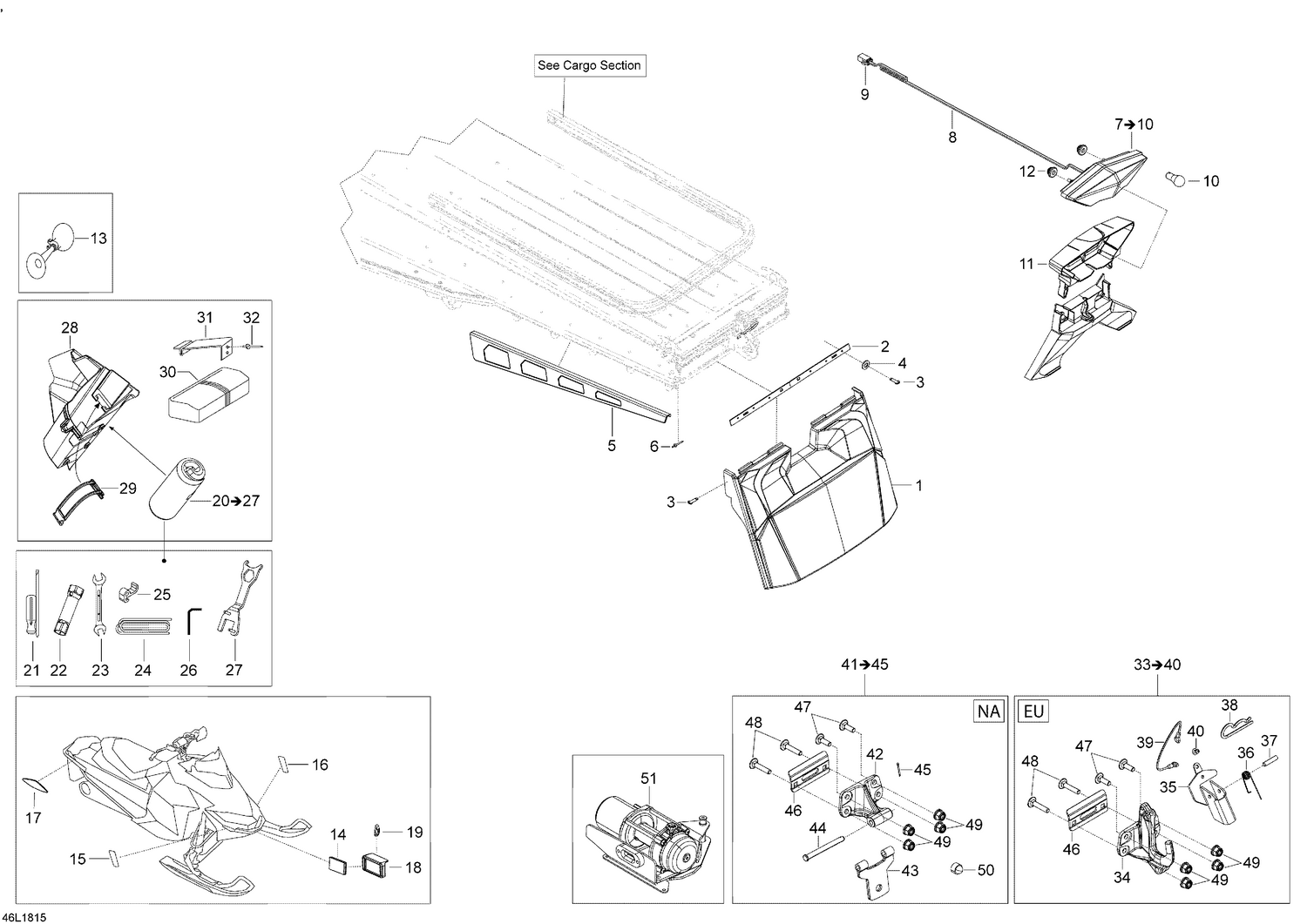

09- Utilities Expedition - 800R E-TEC
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 520001021 | Plate |
| 3 | 250000676 | Forming Screw M5 x 16 |
| 4 | 250200025 | Washer M5 |
| 5 | 520000693 | RH Protector |
| 5 | 520000694 | LH Protector |
| 6 | 293150163 | Rivet Hucklok |
| 8 | 520000849 | Rear Wiring Harness |
| 10 | 520000758 | Bulb |
| 11 | 511000764 | Rear Light Cover |
| 12 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 15 | 520001600 | Yellow, RH Reflector |
| 16 | 520001601 | Yellow, LH Reflector |
| 20 | 520001670 | Tools Kit This part replaces 529000077. |
| 46 | 520000727 | Plate |
| 47 | 207782544 | Carriage Bolt, M8 X 25 |
| 48 | 207784044 | Bolt Carriage M8 X 40 |
| 49 | 233281414 | Hex. Flange Elastic Nut M8 |
