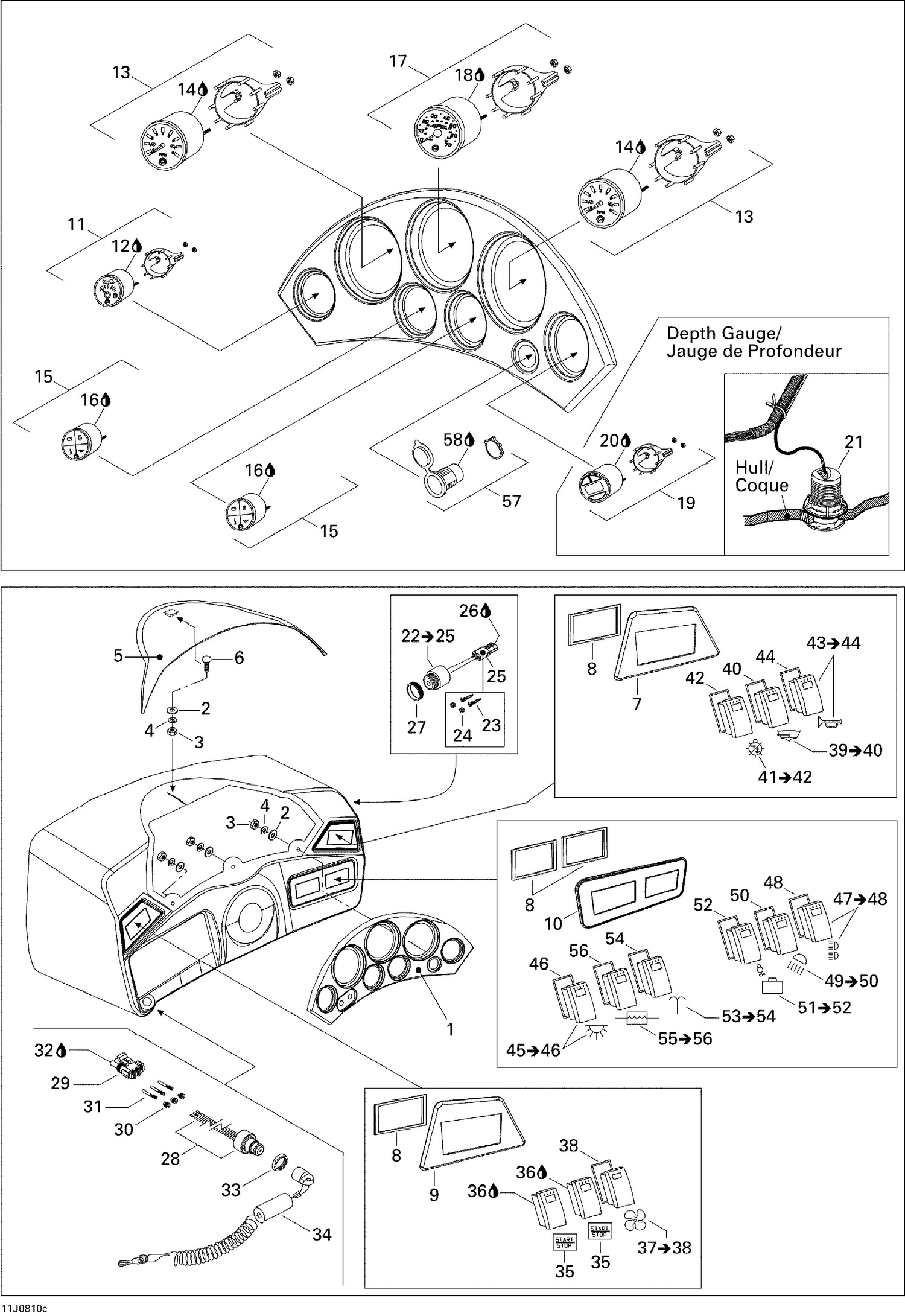

| Ref | Part Number | Description |
|---|
| 1 |
204471247 |
Dash Panel |
| 2 |
234062600 |
Flat Washer M6, Stainless |
| 3 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 4 |
211200025 |
Lock Washer 1/4” |
| 5 |
204471136 |
Dash Panel Top |
| 6 |
204000130 |
Elevator Bolt |
| 7 |
204471025 |
RH Switch Panel |
| 8 |
204470343 |
LOCKING PLATE - Call your local BRP dealership |
| 9 |
204471026 |
LH Switch Panel |
| 10 |
204471051 |
Lower Switch Panel |
| 11 |
204471129 |
FUEL GAUGE - Call your local BRP dealership |
| 12 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 13 |
204471019 |
Tachometer Gauge |
| 14 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 15 |
204471130 |
ENGINE WARNING GAUGE - Call your local BRP dealership |
| 16 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 17 |
204470943 |
Speedometer |
| 18 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 19 |
204470917 |
DEPTH GAUGE - Call your local BRP dealership |
| 20 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 21 |
204471292 |
Depth Sensor |
| 23 |
278000222 |
Male Terminal |
| 24 |
278000218 |
Wire Seal |
| 25 |
278000217 |
Female Housing, 2 Circuits |
| 26 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 27 |
278000707 |
Buzzer Nut |
| 28 |
278002773 |
Safety Switch This part replaces 278001734. |
| 29 |
278000273 |
Male Housing, 3 Circuits |
| 30 |
278000218 |
Wire Seal |
| 31 |
278000223 |
Female Terminal |
| 32 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 33 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 34 |
204471206 |
Safety Lanyard |
| 35 |
204471178 |
START/STOP SWITCH - Call your local BRP dealership |
| 36 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 38 |
204470132 |
Gasket |
| 40 |
204470132 |
Gasket |
| 42 |
204470132 |
Gasket |
| 44 |
204470132 |
Gasket |
| 46 |
204470132 |
Gasket |
| 48 |
204470132 |
Gasket |
| 50 |
204470132 |
Gasket |
| 52 |
204470132 |
Gasket |
| 54 |
204470132 |
Gasket |
| 56 |
204470132 |
Gasket |
| 57 |
710001248 |
DC Outlet This part replaces 204470907. |
