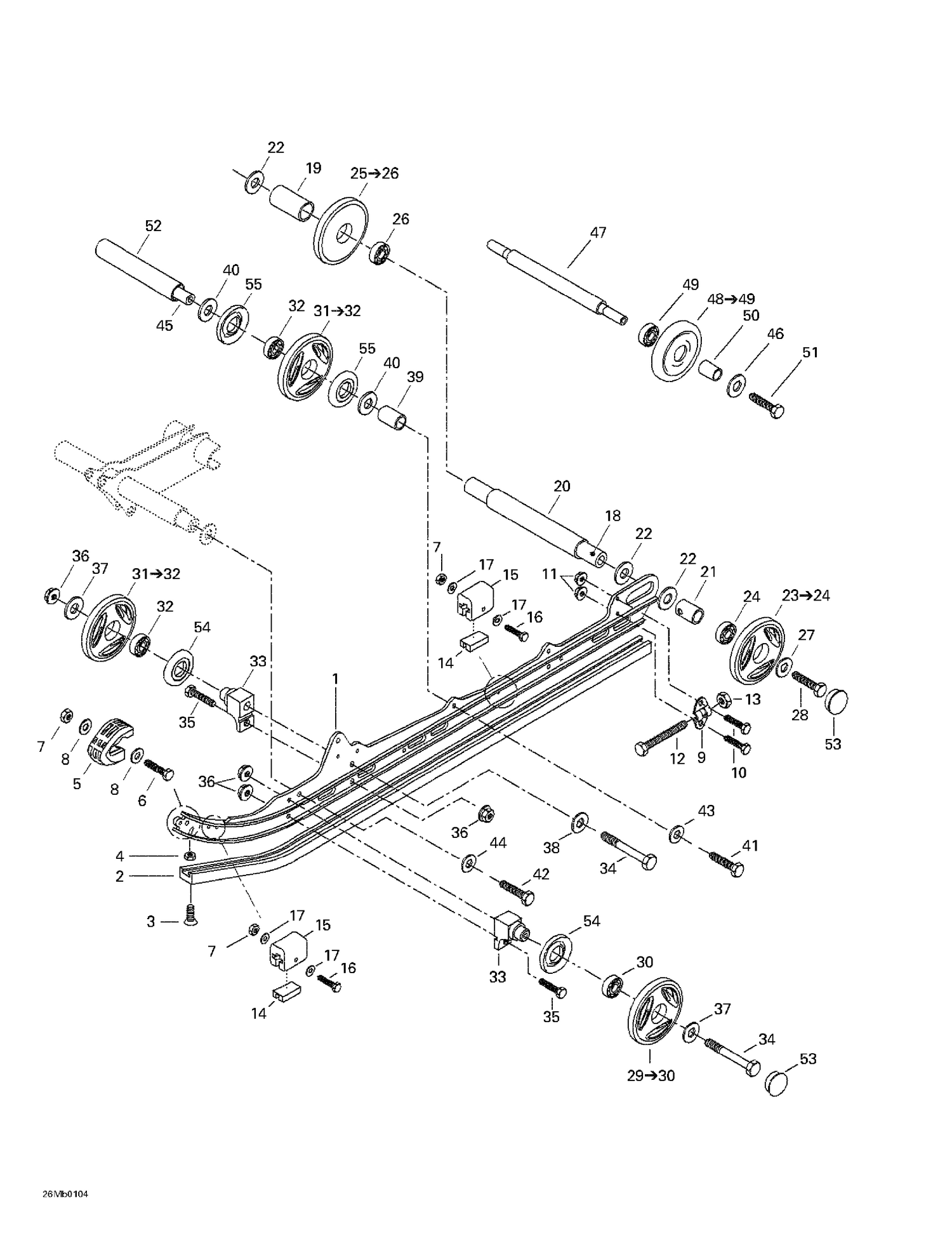

08- Rear Suspension
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503188931 | Runner |
| 2 | 560103300 | Runner Shoe |
| 3 | 208562560 | Phillips Screw M6 X 25 |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 572075400 | RUNNER PROTECTOR - Call your local BRP dealership |
| 6 | 207152544 | HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 7 | 232551414 | Elastic Stop Nut M5 |
| 8 | 391301600 | Washer |
| 9 | 503155300 | Tensioner |
| 10 | 207162044 | Hex. Screw M6 X 20 |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 12 | 230100044 | HEX. SCREW M10 X 100 - Call your local BRP dealership |
| 13 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 14 | 572084800 | Reinforcement Stopper |
| 15 | 570063000 | Rubber Stopper |
| 16 | 207054044 | HEX. SCREW M5 X 40 - Call your local BRP dealership |
| 17 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 18 | 503167900 | Rear Axle This part replaces 503160700. |
| 19 | 503182900 | Inner Spacer |
| 20 | 503183000 | CENTRAL SPACER - Call your local BRP dealership |
| 21 | 503189809 | Outer Spacer This part replaces 503189075. |
| 22 | 503180400 | Washer |
| 24 | 293350115 | Ball Bearing This part replaces 503189567. |
| 26 | 293350115 | Ball Bearing This part replaces 503189567. |
| 27 | 503183300 | Washer |
| 28 | 250000019 | Hex. Screw With Nylon |
| 30 | 293350115 | Ball Bearing This part replaces 405404500. |
| 32 | 293350115 | Ball Bearing This part replaces 405404500. |
| 33 | 503190389 | SUPPORT - Call your local BRP dealership This part replaces 503174600. |
| 34 | 207088044 | Hex. Screw M8 X 80 |
| 35 | 207182544 | Hex. Screw M8 X 25 |
| 36 | 233281414 | Hex. Flange Elastic Nut M8 |
| 37 | 503183100 | Washer |
| 38 | 234081410 | Flat Washer 8 mm |
| 39 | 503188800 | SPACER - Call your local BRP dealership |
| 40 | 503154000 | WASHER - Call your local BRP dealership |
| 41 | 207303544 | Hex. Screw M10 x 35 (Scotch Grip) |
| 42 | 207323544 | Hex. Screw M12 x 35 (Scotch Grip) |
| 43 | 732900049 | Washer |
| 44 | 503189276 | Washer |
| 45 | 503188700 | WHEEL AXLE - Call your local BRP dealership |
| 46 | 503189157 | Washer |
| 47 | 503153600 | Wheel Support Axle |
| 49 | 405404600 | Ball Bearing |
| 50 | 572048300 | Spacer |
| 51 | 207383044 | HEX. SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership |
| 52 | 503153100 | Spacer |
| 53 | 570063600 | Wheel Cap |
| 54 | 572089000 | LABYRINTH SEAL - Call your local BRP dealership |
