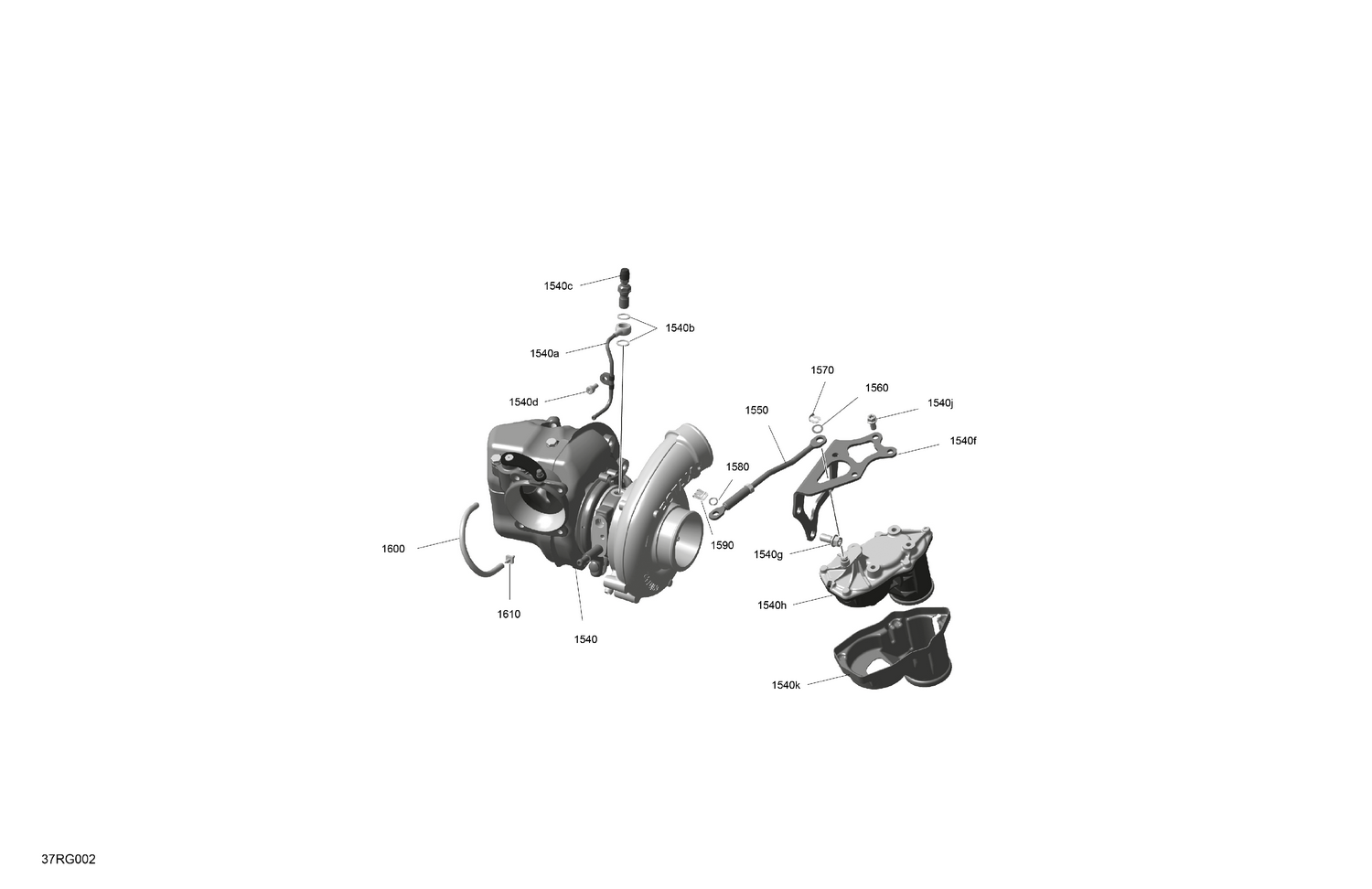

01- ROTAX - Turbo Charger Assy.
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1540a | 420456453 | Oil Line |
| 1540b | 420230154 | Oil Seal |
| 1540c | 420441630 | Bleeder Screw M10 X 1 |
| 1540d | 420240692 | Allen Screw M5 X 10 |
| 1540f | 420851735 | Support |
| 1540g | 420440852 | Torx Flange Screw M8 X 16 |
| 1540h | 420889432 | Servo Motor Ass'y |
| 1540j | 420440149 | Hex. Flange Screw M6 X 12 |
| 1540k | 420975005 | Heat Protection Mat |
| 1550 | 420971630 | Wastegate rod Ass'y |
| 1560 | 420945712 | Wave Shim 7.6/11.8/0.1 |
| 1570 | 420945710 | Retaining Ring |
| 1580 | 420945713 | Wave Shim 6.4/9.8/0.1 |
| 1590 | 420845000 | Circlip |
| 1600 | 420201924 | Oil Line 673MM |
