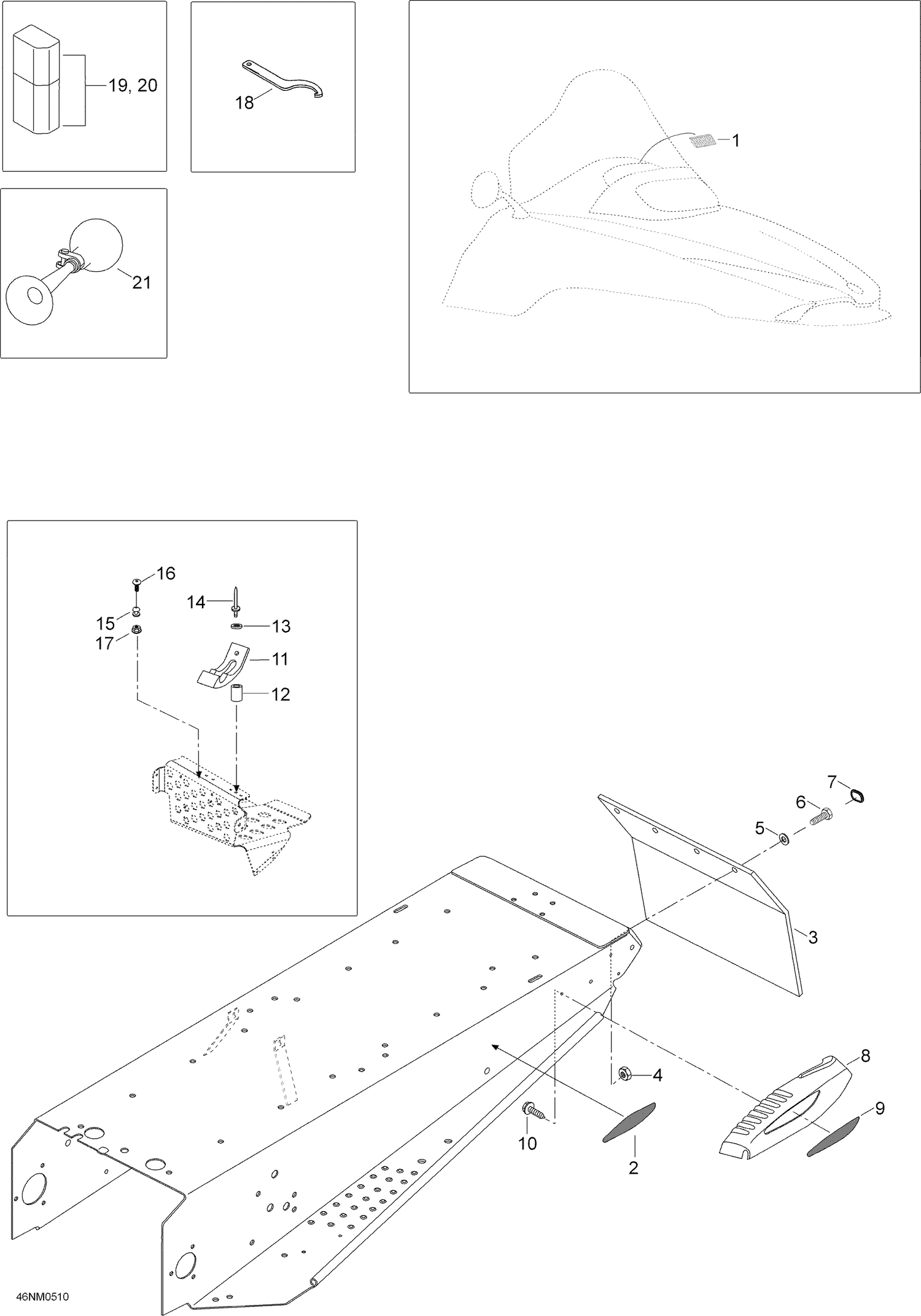

| Ref | Part Number | Description |
|---|
| 1 |
21060 |
Reflector, bright |
| 2 |
21135 |
Reflector, yellow |
| 3 |
5246131 |
Snow quard |
| 4 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 5 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 6 |
40078 |
SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 7 |
415073300 |
Cap |
| 8 |
572092200 |
R.H. Molding |
| 8 |
572092300 |
L.H. Molding |
| 9 |
516000241 |
R.H. Rear reflector |
| 9 |
516000242 |
L.H. Rear reflector |
| 10 |
40870 |
HEX. TAPING SCREW - Call your local BRP dealership |
| 11 |
531955 |
Latch |
| 12 |
543417 |
Sleeve |
| 13 |
543392 |
Washer |
| 14 |
36072 |
Rivet |
| 15 |
605449087 |
Counter roll |
| 16 |
40168 |
Screw M4 x 25 |
| 17 |
33008 |
Elastic stop nut M4 |
| 18 |
529000035 |
Wrench adjuster This part replaces 529032900. |
| 19 |
605350525 |
TOOL KIT - Call your local BRP dealership |
| 20 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
