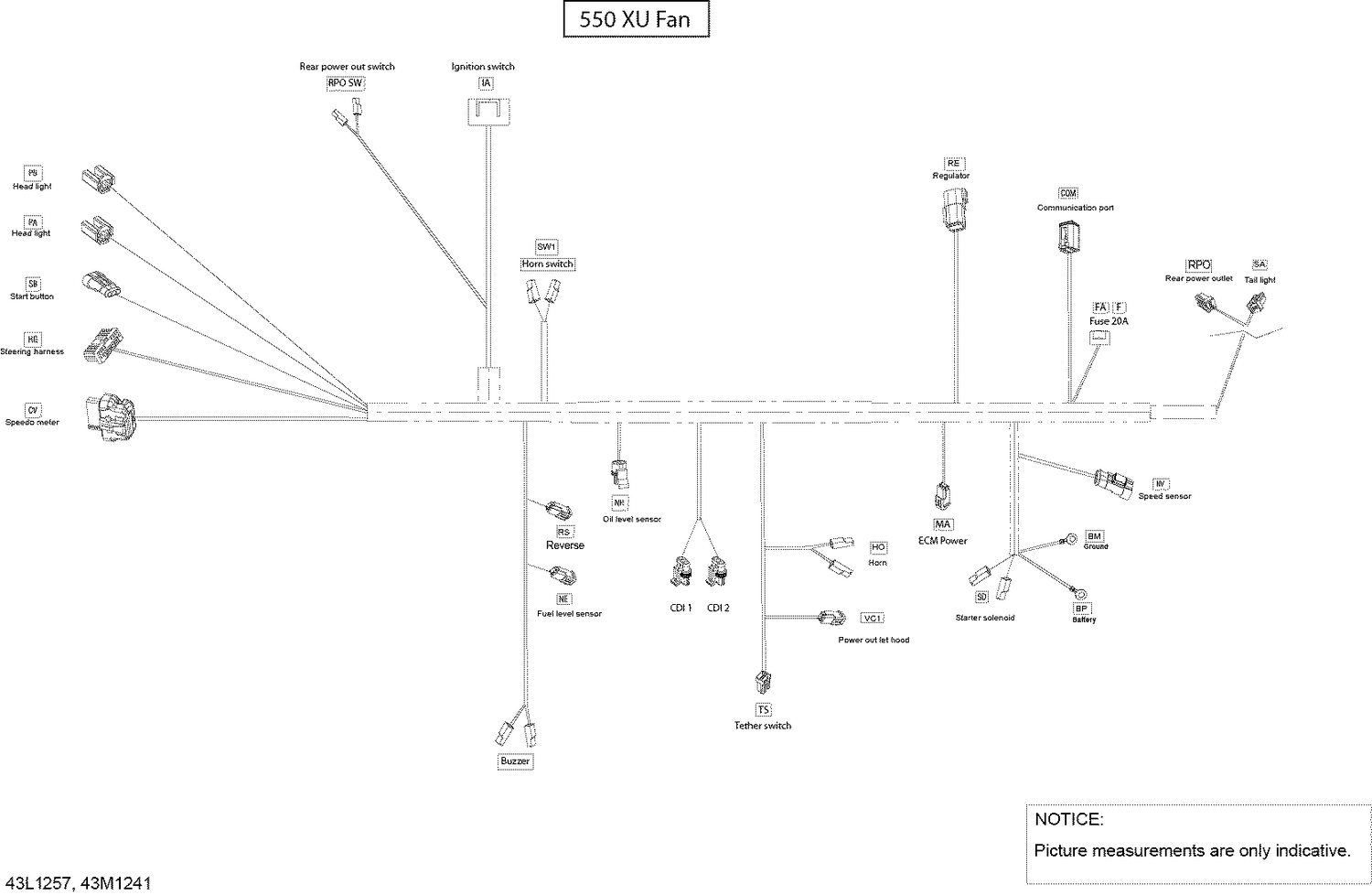

| Ref | Part Number | Description |
|---|
| AT |
515176890 |
Female Terminal Housing |
| AT |
710001163 |
Wire Seal |
| AT |
710001164 |
Female Terminal |
| BM |
278000992 |
Open Barrel |
| BP |
278000992 |
Open Barrel |
| BUZZER |
409010100 |
Female Terminal |
| BUZZER |
409010400 |
Female Terminal Housing, 1 Circuit |
| CD |
278001671 |
Female Lock, 2 Circuits |
| CD |
278001673 |
Female Terminal Housing, 2 Circuits |
| CD |
515175567 |
Female Terminal |
| CM |
278002307 |
FEMALE TERMINAL - Call your local BRP dealership |
| CM |
293750002 |
Tie Wrap 142 mm |
| CM |
409209600 |
Female Housing, 3 Circuits |
| CM |
515176621 |
Wire Seal |
| COM |
278000632 |
Female Terminal |
| COM |
293000052 |
Sealing Cap |
| COM |
515175673 |
Male Housing, 6 Circuits |
| COM |
515175678 |
Male Wedge, 6 Circuits |
| CP |
278000631 |
Male Terminal |
| CP |
409207500 |
Male Lock, 2 Circuits |
| CP |
515175665 |
Male Terminal Housing, 2 Circuits |
| CV |
515175801 |
Female Housing, 24 Circuits |
| CV |
515175802 |
Retainer Block |
| CV |
515175803 |
Wire Seal |
| CV |
515175806 |
Female Terminal |
| CV |
515175812 |
Plug |
| CV |
710000399 |
Female Housing |
| CV |
710001131 |
Female Terminal |
| D1 |
409012700 |
Diode |
| DM |
515175231 |
Female Terminal |
| DM |
515175658 |
Female Housing, 2 Circuits |
| DS |
515175231 |
Female Terminal |
| DS |
515175495 |
Female Housing, 3 Circuits |
| DT |
278000998 |
Female Terminal |
| DT |
278001005 |
Male Housing, 2 Circuits |
| DT |
415128501 |
Seal |
| ECMB |
710001589 |
Female Terminal |
| ECMB |
710001590 |
Female Terminal |
| ECMB |
710001591 |
Cover, 48 positions |
| ECMB |
710001592 |
Plug |
| ECMB |
710001593 |
Plug |
| ECMB |
710001967 |
Molex Housing, 48 Circuits |
| EI |
278000631 |
Male Terminal |
| EI |
409207500 |
Male Lock, 2 Circuits |
| EI |
515175665 |
Male Terminal Housing, 2 Circuits |
| ER |
278000998 |
Female Terminal |
| ER |
415128500 |
Female Terminal Housing, 2 Circuits |
| ER |
415128501 |
Seal |
| ERF |
515176164 |
Male Terminal |
| ERF |
515176621 |
Wire Seal |
| ERF |
710000568 |
Housing |
| F |
710000742 |
Little Fuse, 5 Amperes |
| F |
710000743 |
Little Fuse, 7.5 Amperes |
| F |
710000744 |
Little Fuse, 10 Amperes |
| F |
710000745 |
Little Fuse, 15 Ampere |
| F |
710000746 |
Little Fuse, 20 Amperes |
| F |
710000747 |
Little Fuse, 30 Amperes |
| FA |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| FA |
409004000 |
Fuse Holder |
| FA |
409004200 |
Female Terminal |
| FA |
710000992 |
Clip |
| FAN |
515176164 |
Male Terminal |
| FAN |
515176621 |
Wire Seal |
| FAN |
710000568 |
Housing |
| FB |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| FB |
278000344 |
Fuse, 5 Amperes |
| FB |
409004000 |
Fuse Holder |
| FB |
409004200 |
Female Terminal |
| FB |
409011600 |
Female Terminal |
| FB |
710000992 |
Clip |
| HG |
515175231 |
Female Terminal |
| HG |
515175282 |
Female Terminal |
| HG |
Not |
Available As Spare Part - Female Terminal Housing, 15 Circuits |
| HIC |
278000738 |
Male Lock, 4 Circuits |
| HIC |
278000739 |
Male Connector, 4 Circuits |
| HIC |
278001665 |
Female Terminal |
| HIC |
293000052 |
Sealing Cap |
| HO |
515175231 |
Female Terminal |
| HO |
515175658 |
Female Housing, 2 Circuits |
| IA |
710000272 |
Female Terminal Housing, 4 Circuits |
| IA |
710000273 |
Lock, 4 Circuits |
| IA |
710000274 |
Female Terminal |
| IGM |
278001013 |
Wire Seal |
| IGM |
278001014 |
Female Terminal |
| IGM |
409209600 |
Female Housing, 3 Circuits |
| IGP |
278001013 |
Wire Seal |
| IGP |
278001014 |
Female Terminal |
| IGP |
409209600 |
Female Housing, 3 Circuits |
| INM |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| INM |
278001013 |
Wire Seal |
| INM |
278001014 |
Female Terminal |
| INM |
293750001 |
Tie Wrap 94 mm |
| INM |
409209500 |
Female Housing, 2 Circuits |
| INP |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| INP |
278001013 |
Wire Seal |
| INP |
278001014 |
Female Terminal |
| INP |
293750001 |
Tie Wrap 94 mm |
| INP |
409209500 |
Female Housing, 2 Circuits |
| J1A |
515176342 |
Female Terminal Housing, 34 Circuits |
| J1A |
515176345 |
Plug |
| J1A |
515176348 |
Female Terminal |
| J1A |
515176541 |
Female Terminal |
| J1B |
515176341 |
Female Terminal Housing, 26 Circuits |
| J1B |
515176345 |
Plug |
| J1B |
515176348 |
Female Terminal |
| J1B |
515176541 |
Female Terminal |
| J2 |
278000998 |
Female Terminal |
| J2 |
415128501 |
Seal |
| J2 |
515176340 |
Female Terminal Housing, 16 Circuits |
| MA |
278000632 |
Female Terminal |
| MA |
515175670 |
Female Terminal Housing, 2 Circuits |
| MA |
515175675 |
Female Lock, 2 Circuits |
| MO |
278000631 |
Male Terminal |
| MO |
278000735 |
Female Lock, 6 Circuits |
| MO |
515175668 |
Male Terminal Housing, 6 Circuits |
| NE |
515175232 |
Male Terminal |
| NE |
515175654 |
Male Terminal Housing, 2 Circuits |
| NH |
278001113 |
Male Connector, 2 Circuits |
| NH |
710001119 |
Female Terminal |
| NV |
515176164 |
Male Terminal |
| NV |
515176621 |
Wire Seal |
| NV |
710000568 |
Housing |
| NV |
710000992 |
Clip |
| PA |
515176908 |
Female Housing |
| PA |
515176909 |
Terminal |
| PB |
515176908 |
Female Housing |
| PB |
515176909 |
Terminal |
| PE |
278001013 |
Wire Seal |
| PE |
278001014 |
Female Terminal |
| PE |
409209500 |
Female Housing, 2 Circuits |
| PF |
278002172 |
Foam |
| PF |
415129856 |
Fuse Box Base Ass´y This part replaces 710000660. |
| PF |
710000781 |
Fuse Puller |
| PF |
710001026 |
Fuse Cover |
| PH |
278001113 |
Male Connector, 2 Circuits |
| PH |
278001114 |
Female Terminal |
| R |
515176774 |
Relay, 30 AMP |
| R |
515176775 |
Relay, 50 AMP |
| R2 |
293750002 |
Tie Wrap 142 mm |
| R2 |
409209900 |
Female Housing, 5 Circuits |
| R2 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| RE |
710000877 |
Female Terminal |
| RE |
710000879 |
Female Housing, 3 Circuits |
| RE |
710000881 |
Seal |
| RE |
710000882 |
Cap |
| RPO |
515175232 |
Male Terminal |
| RPO |
515175494 |
Male Housing, 3 Circuits |
| RS |
278002307 |
FEMALE TERMINAL - Call your local BRP dealership |
| RS |
409209600 |
Female Housing, 3 Circuits |
| RS |
515176621 |
Wire Seal |
| SA |
515175231 |
Female Terminal |
| SA |
515175495 |
Female Housing, 3 Circuits |
| SB |
515176164 |
Male Terminal |
| SB |
515176621 |
Wire Seal |
| SB |
710000568 |
Housing |
| SD |
293750001 |
Tie Wrap 94 mm |
| SD |
409010100 |
Female Terminal |
| SD |
409010400 |
Female Terminal Housing, 1 Circuit |
| SW1 |
409010100 |
Female Terminal |
| SW1 |
409010400 |
Female Terminal Housing, 1 Circuit |
| TP |
278000997 |
Male Housing, 3 Circuits |
| TP |
278000998 |
Female Terminal |
| TP |
415128501 |
Seal |
| TS |
278000998 |
Female Terminal |
| TS |
278001005 |
Male Housing, 2 Circuits |
| TS |
415128501 |
Seal |
| VC |
515175231 |
Female Terminal |
| VC |
515175658 |
Female Housing, 2 Circuits |
| VC1 |
409010100 |
Female Terminal |
| 3 |
Not |
Available As Spare Part - Blue Coding Vinyl Tape |
| 188 |
409902000 |
Tubing 12 mm |
| 253 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 254 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 255 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 256 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 257 |
219704398 |
Was 409901600 Tubing 19mm |
| 258 |
219704407 |
Tubing 10 MM 1000MM Long |
| 966 |
Not |
Available As Spare Part - Tape |
