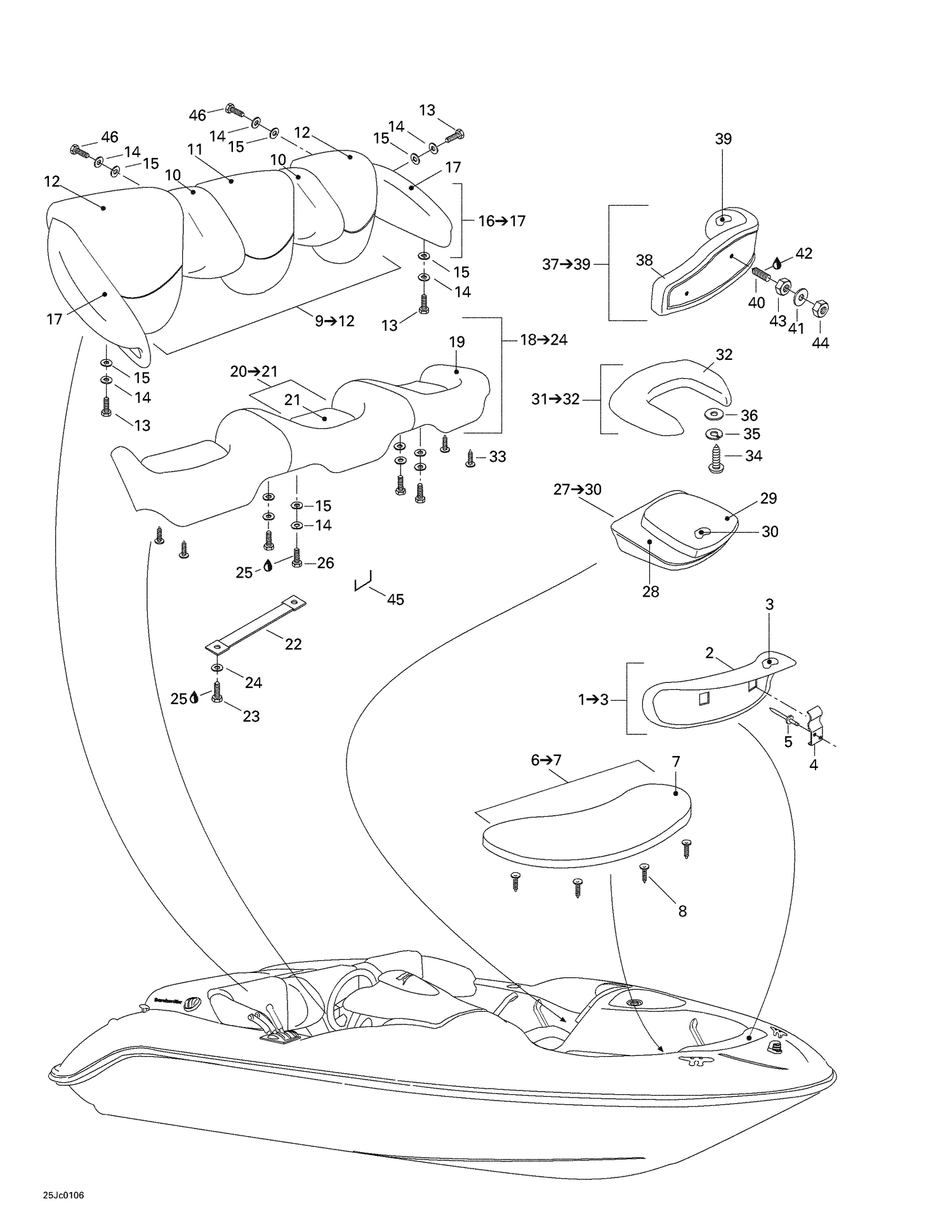

09- Seats
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 204610539 | Front Backrest Cover |
| 3 | Not | Available As Spare Part - Front Backrest Foam |
| 4 | 269000388 | SEAT SUPPORT - Call your local BRP dealership |
| 5 | 293150043 | Pop Rivet 3/16" |
| 7 | 204610541 | Front Seat Cover |
| 8 | 293730006 | Black, Dart |
| 10 | 204610543 | Backrest Cover |
| 11 | 204610544 | Backrest Cover (Center) |
| 12 | 204610545 | RH Backrest Cover |
| 13 | 207363060 | Hex. Screw M6 X 30, Scotch Grip |
| 14 | 234062600 | Flat Washer M6, Stainless |
| 15 | 204100139 | WASHER-FENDER/S.S. - Call your local BRP dealership This part replaces 204100006. |
| 17 | 204610550 | RH Armrest Cover |
| 19 | 204610552 | Rear Seat Cover |
| 21 | 204610554 | Rear Seat Pillow Cover |
| 22 | 204610555 | Strap |
| 23 | 207161660 | Hex. Screw M6 X 16 |
| 24 | 234062600 | Flat Washer M6, Stainless |
| 25 | 293800060 | Loctite 243, 10 ml |
| 26 | 207364560 | Hex. Screw M6 x 45, Scotch Grip |
| 28 | 204610557 | Keeper Seat Base Cover |
| 29 | 204610558 | Keeper Seat Cover |
| 30 | 269000333 | Seat Foam |
| 32 | 204610560 | Keeper Seat Ring Cover |
| 33 | 293730021 | Dart |
| 34 | 209663860 | Tapping Phillips Screw 6.3 X 38 |
| 35 | 234161601 | Lock Washer Helical M6 |
| 36 | 234061600 | Stainless Flat Washer M6 |
| 38 | 204610563 | Keeper Seat Backrest Cover |
| 39 | 269000339 | Keeper Seat Backrest Foam |
| 40 | 206253060 | Set Screw M5 x 30 |
| 41 | 234062600 | Flat Washer M6, Stainless |
| 42 | 293800005 | Loctite 271, 10 ml |
| 43 | 232051600 | Hex. Nut M5 |
| 44 | 232551600 | Hex. Elastic Nut M5 |
| 45 | 293730005 | Staple |
| 204610546 | LH | Backrest Cover 204610546 |
| 204610547 | LH | Armrest Ass'y 204610547 |
| 204610548 | LH | Armrest Cover 204610548 |
