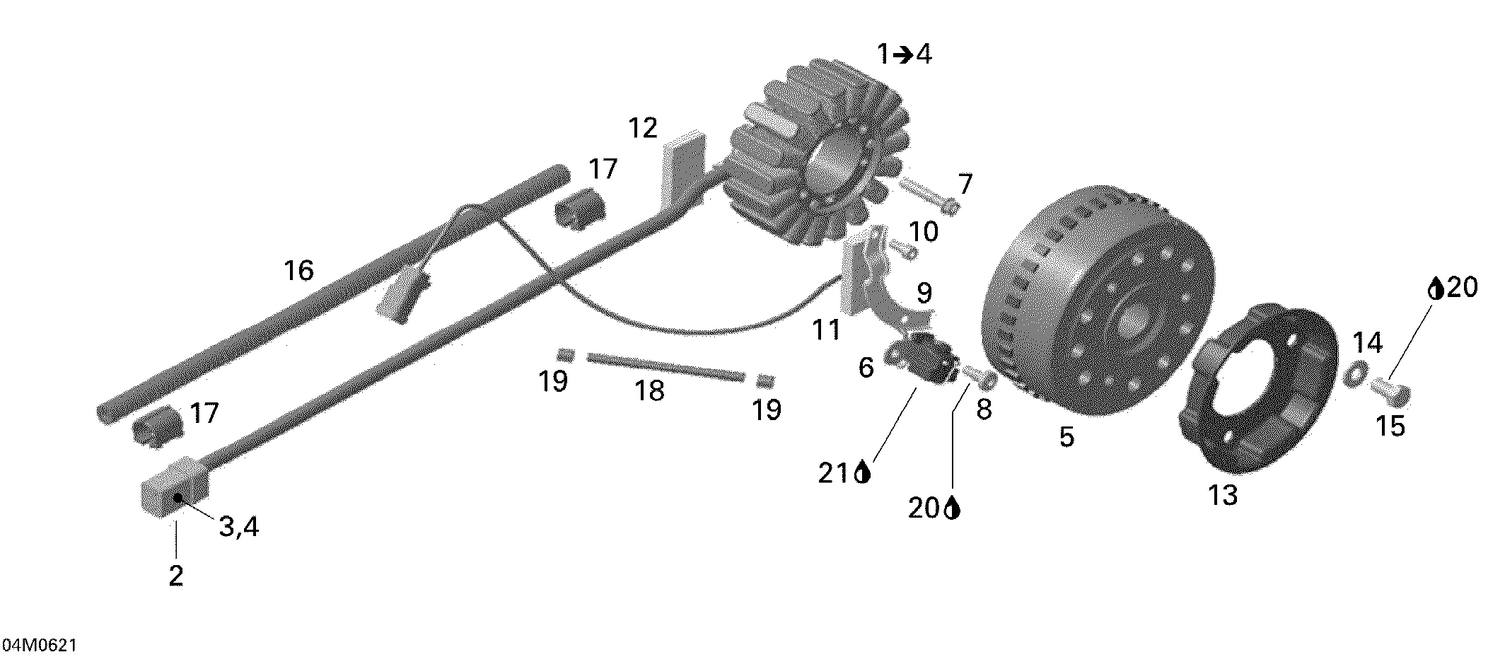

| Ref | Part Number | Description |
|---|
| 2 |
278001473 |
Female Terminal Housing, 4 Circuits |
| 3 |
515175568 |
Male Terminal |
| 4 |
278001474 |
Female Lock, 4 Circuits |
| 5 |
420866042 |
Flywheel |
| 6 |
410922951 |
Pick-Up |
| 7 |
420440274 |
Torx Flange Screw M6 X 35 This part replaces 420440272. |
| 8 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 9 |
420851870 |
RETAINING PLATE - Call your local BRP dealership |
| 10 |
420640541 |
SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership |
| 11 |
420960925 |
Rubber Stopper |
| 12 |
420960920 |
RUBBER STOPPER - Call your local BRP dealership |
| 13 |
420852533 |
Starting Pulley This part replaces 420852532. |
| 14 |
420827405 |
Flat Washer |
| 15 |
420940161 |
Hex. Screw M8 X 12 |
| 16 |
420660912 |
TUBE - Call your local BRP dealership |
| 17 |
420960892 |
CLIP - Call your local BRP dealership |
| 18 |
420460042 |
Tube 390MM This part replaces 420460040. |
| 19 |
420960894 |
CLIP - Call your local BRP dealership |
| 20 |
293800060 |
Loctite 243, 10 ml |
