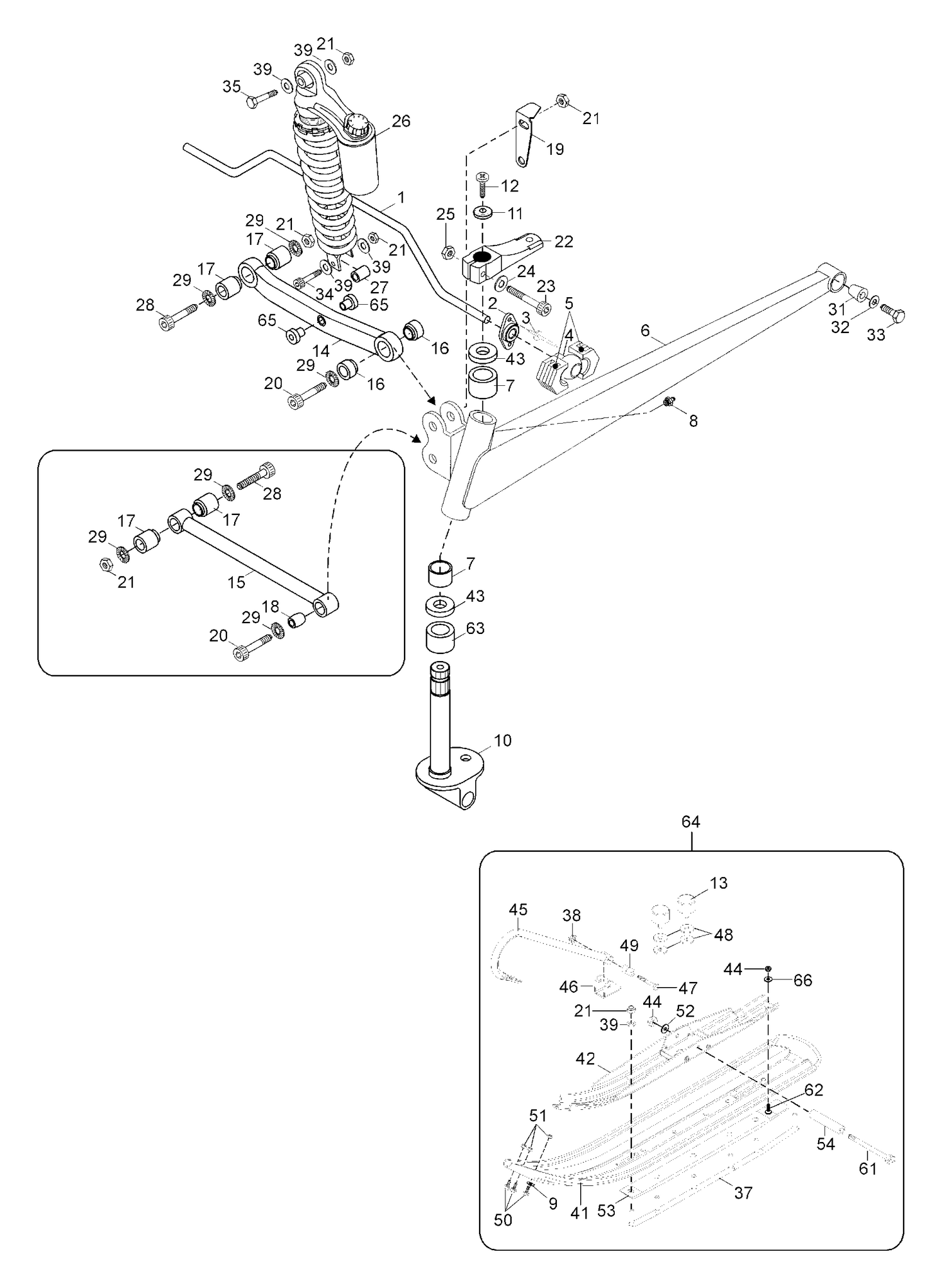

08- Front Suspension
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5241706 | Sway bar |
| 2 | 5440458 | Bearing |
| 3 | 36036 | Rivet |
| 4 | 5440438 | Ball joint |
| 5 | 572069800 | Block sliding, half |
| 6 | 5243510 | Swing arm, R.H. red |
| 6 | 5243511 | Swing arm, L.H. red |
| 7 | 31048 | Housing |
| 8 | 34011 | Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 9 | 20003 | Washer |
| 10 | 5244462 | Ski leg |
| 11 | 5440849 | Coned washer |
| 12 | 40842 | Screw |
| 13 | 2848001 | Bumper |
| 14 | 5243523 | Upper arm, red |
| 15 | 5342022 | Lower arm, red |
| 16 | 5443670 | Bushing, short |
| 17 | 5443669 | Bushing, long |
| 18 | 5440183 | Spacer |
| 19 | 5443972 | Limiter L.H. |
| 19 | 5443973 | Limiter R.H. |
| 20 | 40858 | Allen screw M10x50 |
| 21 | 33012 | Nut elastic M10 |
| 22 | 5343569 | Reversing Arm |
| 23 | 40851 | Allen screw M8x50 |
| 24 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 25 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 26 | 23097 | Shock LYNX |
| 27 | 5441433 | Bushing |
| 28 | 40277 | Allen screw M10x65 |
| 29 | 20068 | Lock washer |
| 31 | 547543 | Cone Rubber |
| 32 | 20028 | Washer |
| 33 | 40039 | Screw M10x20 |
| 35 | 40018 | Screw M10x55 |
| 37 | 5344019 | Runner |
| 38 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 39 | 20005 | WASHER M10 - Call your local BRP dealership |
| 41 | 5242167 | Plastic surface black |
| 42 | 5243678 | Frame of plastic ski |
| 43 | 31010 | Support ring |
| 44 | 232006414 | Hex. Nut M10 This part replaces 33004. |
| 45 | 5342168 | Hand Bar Weld |
| 46 | 5442165 | Fastening lug |
| 47 | 207084544 | Hex. Screw M8 X 45 This part replaces 40008. |
| 48 | 20012 | Washer A10.5DIN 9021-ST MUP(1=10pcs) - Call your local BRP dealership |
| 49 | 5442175 | Rubber sleeve |
| 50 | 40821 | Screw |
| 51 | 33010 | Lock Nut M6 (1=10Pcs) |
| 52 | 20047 | Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership |
| 53 | 5343731 | Plastic latch |
| 54 | 5444463 | Sleeve |
| 61 | 40224 | Allen screw M10x90 |
| 62 | 40857 | Lock screw M10x30 |
| 63 | 5443622 | Sleeve |
| 64 | 5243729 | Plasticski assy |
| 65 | 31088 | Bearing |
