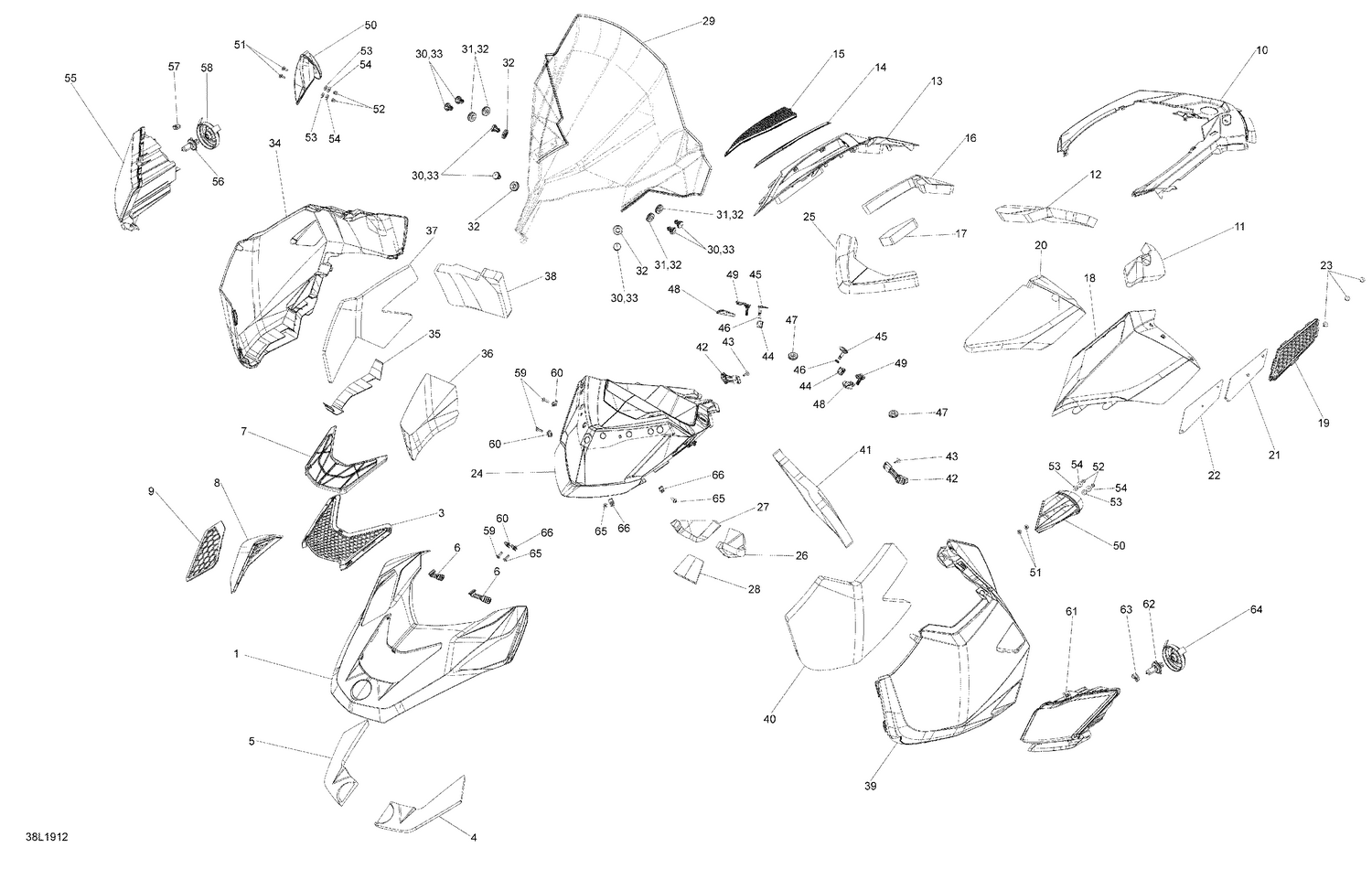

| Ref | Part Number | Description |
|---|
| 1 |
517304812 |
Hood, Black |
| 3 |
517306329 |
Orange, Hood Grill |
| 4 |
517304330 |
Isolation L.H. |
| 5 |
517304214 |
Isolation R.H. |
| 6 |
517304289 |
Latch Pannel |
| 7 |
XXX |
Not Available As Spare Parts |
| 8 |
517306981 |
Intake Grill |
| 9 |
517304584 |
Intake Grill |
| 10 |
517306758 |
Console |
| 11 |
517305644 |
Isolation left |
| 12 |
517304318 |
Isolation right |
| 14 |
517304015 |
Acces panel grill R.H. |
| 15 |
517304016 |
Access Panel Grill Lower RH |
| 16 |
517304311 |
Isolation |
| 17 |
517305987 |
Insulator |
| 19 |
517303893 |
L.H. Acces panel grill |
| 20 |
517304313 |
Insulator |
| 21 |
517305311 |
Insulator |
| 22 |
502007312 |
Grill plate |
| 23 |
414644300 |
Black, Dart |
| 24 |
517304272 |
Indicator Support |
| 25 |
517304314 |
Isolation front |
| 26 |
517304315 |
Isolation right |
| 27 |
517304316 |
R.H. Isolation |
| 28 |
517304319 |
Isolation middle |
| 29 |
860201000 |
Windshield (580) Ass'y |
| 32 |
517303756 |
Grommet |
| 33 |
517304744 |
Button |
| 34 |
517306970 |
Black, RH Side Panel |
| 35 |
517306504 |
Aluminium Foil |
| 36 |
517306505 |
Aluminium Foil |
| 37 |
517306506 |
Aluminium Foil |
| 38 |
517304310 |
Isolation rear R.H. |
| 39 |
517306973 |
Black, LH Side Panel |
| 40 |
517303891 |
Isolation L.H. |
| 41 |
517304309 |
Isolation rear L.H. |
| 42 |
517304572 |
Latch-Panel |
| 43 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 44 |
517304297 |
Handle Fastener Quarter-Turn |
| 45 |
517304296 |
Quarter-Turn Handle |
| 46 |
517304538 |
Locking Plate |
| 47 |
517304497 |
Side Panel Support |
| 48 |
517304075 |
End Piece Latch |
| 49 |
517306057 |
Panel Latch |
| 51 |
250000721 |
Torx Truss Screw M6 X 16 |
| 52 |
232361493 |
Nut Hexagonal Domed M6 |
| 53 |
250200024 |
Rubber Washer 5 mm |
| 54 |
20117 |
Washer |
| 56 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 57 |
515176498 |
Kansi |
| 58 |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 59 |
250000722 |
Torx Truss Screw M6 x 20 |
| 60 |
250100198 |
Panel Nut , M6 X 1.0 This part replaces 250000957. |
| 62 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 63 |
515176498 |
Kansi |
| 64 |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 65 |
250000722 |
Torx Truss Screw M6 x 20 |
| 67 |
293150211 |
Rivet |
